Product Overview

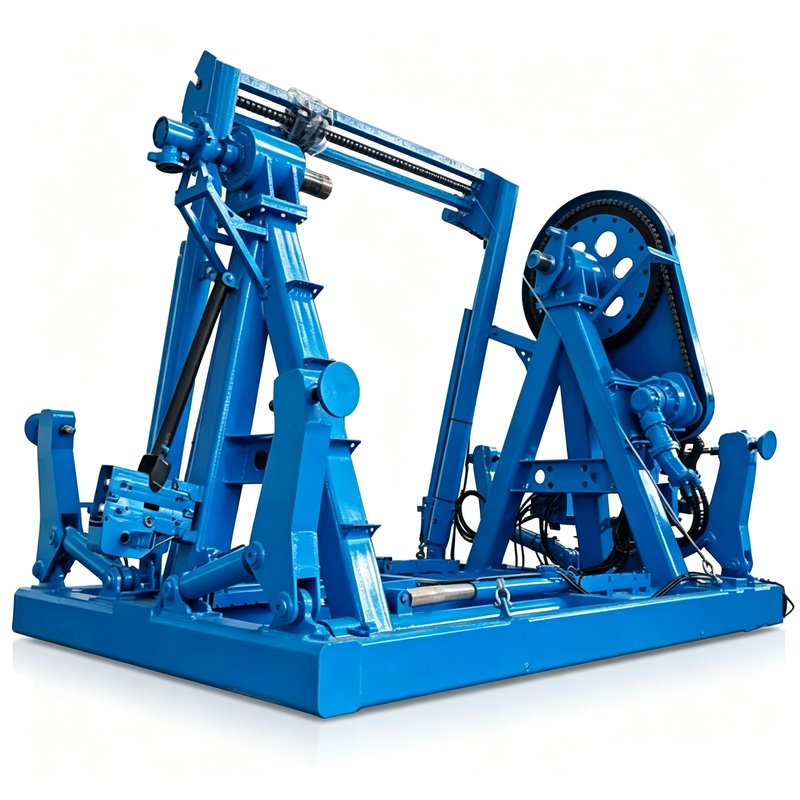

The HTDG 200-105 coiled tubing yard spooler is professional heavy-duty auxiliary equipment matched with truck, skid & trailer-mounted coiled tubing units. It realizes safe, bidirectional spooling between transport reels and working CT reels, widely applied in onshore oil & gas well intervention, fracturing, acidizing, snubbing operations. This hydraulic reel handler supports max 40-ton transport reels up to 200" diameter, compatible with both wooden and steel standard CT reels. Full hydraulic drive system delivers stable 60000 N.m output torque, equipped with independent forced levelwind assembly to avoid tubing overlapping during winding. The whole machine passes sandblasting anti-rust pretreatment and 3020 red industrial paint finish, stably operates under -20℃ to +55℃ all-weather conditions. All operator contact edges are blunted to meet global HSE safety standards, with fully labeled hydraulic quick couplings for easy field operation.
| Main Performance Parameters | |
| Parameter Item | Technical Data |
|---|---|
| Model | HTDG 200-105 Coiled Tubing Yard Spooler |
| Max Working Torque | 60,000 N.m |
| Adjustable Rotation Speed | 0-10 RPM |
| Hydraulic Working Pressure | 2.5-35 MPa |
| Forced Levelwind | Hydraulic double lead screw automatic arrangement |
| Applicable CT Size | 1.25" - 2.875" |
| Fit Transport Reel | Wooden / Steel CT reel |
| Reel Center Hole | Wooden: 4.125", Steel: 3.5"-4.125" |
| Reel Pin Hole | Wooden: 2.125", Pin Center Distance 20" |
| Max Reel Dimension | OD 200" |
| Max Loading Weight | 40 Ton |
| Overall Transport Size (LxWxH) | 6500 x 2100 x 3630 mm |
| Net Weight (Excl. Hydraulic Hose Trolley) | 6.1 Ton |
| Operating Ambient Temp | -20C - +55C |
| Certification | ISO 9001:2015, SY/T 6698 Standard |
Core Structural & Performance Advantages
1. Telescopic Clamping Base (One Fixed, One Movable)
The base adopts split design with hydraulic clamping cylinder to adjust the span between left & right support shafts, adapting reels from 65" to 105" width. Heavy-duty rolling bearings on support shafts greatly reduce reel rotation friction. Four integrated lifting lugs on base four corners support integral hoisting for fast rig-up & transport. All slide plates with multi-position locking holes ensure reel stable clamping without shifting during spooling.
2. Imported Hydraulic Drive System
Power sourced from CT unit injector closed hydraulic pump, matched with heavy-duty Linde hydraulic motor. The built-in pressure release brake prevents reel free slipping under heavy load, eliminating tubing spring-back safety hazards. Hydraulic pipeline layout is standardized with dust-proof quick connectors, easy to connect with CT power system.
3. Hydraulic Adjustable Forced Levelwind Assembly
Height-adjustable pipe rack fits different reel diameters. Double lead screw driven guide head automatically arranges coiled tubing evenly, avoiding messy winding, extrusion and tubing fatigue damage. Replaceable guide rollers support 1.25"~2.875" tubing; all guide shafts reserve grease lubrication ports for daily maintenance.
4. Independent Mobile Hydraulic Control Trolley
Complete 10m hydraulic hose reel trolley with dual manual multi-way valves, separate handles for reel clamping & levelwind forward/reverse control. The independent trolley design can be placed at a safe distance from the spooler during operation, keeping the operator away from the rotating reel for improved safety. Two universal casters allow operators to stand away from high-pressure reel zone for safe remote operation. All quick couplings equipped dust caps to prevent sand & dirt contamination of hydraulic oil.
5. Full Safety & Low-Maintenance Design
All sharp corners blunted to comply HSE; chain drive fitted protective cover to prevent pinch injury
Centralized grease fittings on bearings, chain, lead screw, easy regular lubrication
Complete pre-delivery anti-corrosion treatment (sandblasting + pickling + heavy red paint)
Separate detachable guardrails & foldable platforms, shrink overall transport volume
Working Principle
The HTDG200-105 yard spooler relies on the coiled tubing unit injector hydraulic pump as power. Main drive circuit: Drives the hydraulic motor to rotate reducer & spooling chain for reel rotation. Auxiliary hydraulic circuit: Controls clamping cylinder to lock/release reels, and levelwind motor to drive bidirectional lead screw for forced neat tubing arrangement. Whole operation controlled via trolley multi-way valve, realizing full-automatic bidirectional spooling between working reel and transport reel without manual tubing arrangement.
Application Scenarios
Onshore conventional oil & gas well coiled tubing workover
High-pressure fracturing, acidizing, plug milling & bridge plug setting
Heavy-load CT fleet reel transfer & storage
Standard Delivery Package
Complete HTDG200-105 yard spooler main frame
Hydraulic control hose trolley with 10m hoses & multi-way valve
2x standard guide roller set
Full set installation bolts & locking pins
Complete operation & maintenance manual (English version)
Product factory certificate, ISO9001 certification copy
Standard spare parts kit: high-pressure filter elements, sealing kit, grease fittings kit
Quality Warranty & After-Sales Service
Warranty Period: 18 months after shipment or 12 months after first operation (whichever comes first). Free repair & component replacement for all manufacturing & design defects within warranty period. Consumable wear parts (rubber seals, filter elements, chain, slips) excluded from free warranty coverage. Global 48-hour on-site technical support available for overseas projects. Customization support: NACE anti-sulfur modification, special reel size adaptation, hydraulic circuit adjustment.
FAQ
Q1: What is the maximum reel weight this HTDG200-105 spooler can carry?
A: Max loading capacity reaches 40 tons, fits transport reels up to 200" outer diameter and 105" flange width.
Q2: Can it work with both wooden and steel CT reels?
A: Yes. Matching dog drivers and shaft sleeves are supplied separately for wooden reels (4.125" center hole) and steel reels (6.25" center hole).
Q3: What size coiled tubing does this spooler support?
A: Compatible with 1.25" to 2.875" outer diameter coiled tubing.
Q4: Is the levelwind system automatic?
A: Adopts hydraulic double lead screw forced levelwind. Operators adjust the trolley valve to realize automatic horizontal tubing arrangement to prevent overlapping winding.
Q5: What is the working temperature range of this yard spooler?
A: Stable operation from -20C to +55C, suitable for desert, cold northern oilfields and rainy coastal sites.
