Product Overview

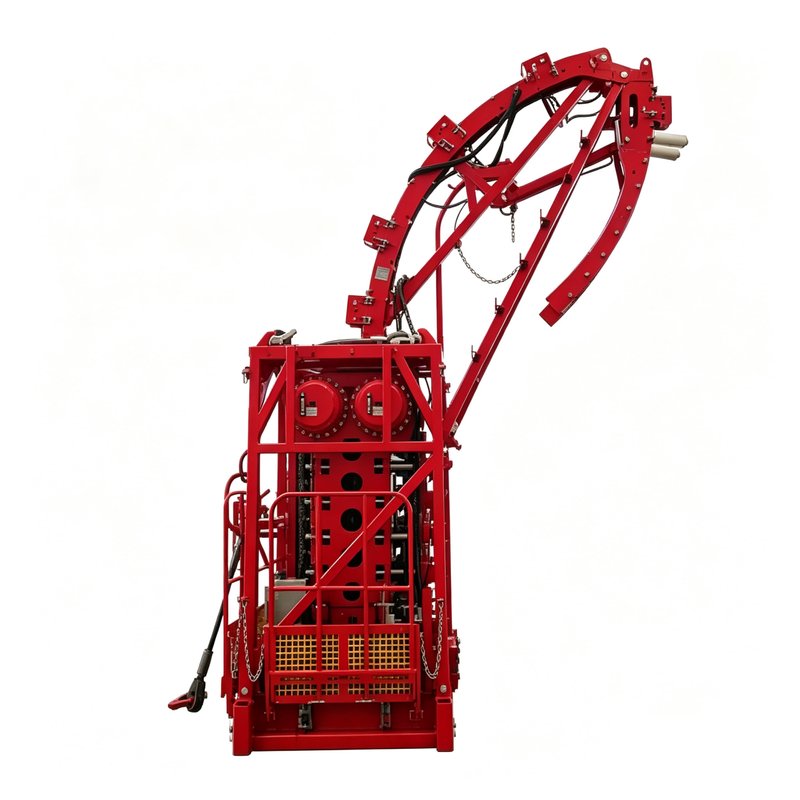

The 140K coiled tubing injector head is our top-tier ultra-heavy traction equipment, specially developed for super-large load onshore and offshore coiled tubing units. It achieves a maximum continuous pulling force of 140,000 LBS and snubbing force of 70,000 LBS, supporting larger 2"~3.5" coiled tubing, ideal for ultra-deep high-pressure reservoirs, offshore intervention and heavy sour gas well operations. This heavy-duty injector adapts to extreme outdoor environments from -20℃ to 55℃, resisting wind, sand, rain, snow and high humidity. All operator-contact sharp edges are blunted to comply with HSE safety standards. Hydraulic and electrical interfaces are clearly marked with stainless steel nameplates, pressure gauges adopt uniform PSI units and pass seismic resistance testing. All structural steel undergoes sandblasting & pickling rust removal before coating with standard 3020 red anti-corrosion paint. Imported Linde full hydraulic configuration, explosion-proof load transducer and automatic chain lubrication system deliver stable performance. Hydraulic folding 120" large-radius gooseneck and foldable three-side platforms reduce transport dimensions.
Main Performance Parameters
| Item | Specification |
|---|---|
| Model | 140K Coiled Tubing Injector Head |
| Max Continuous Pull Force | 140,000 LBS |
| Max Continuous Snubbing Force | 70,000 LBS |
| Max Speed (Min Motor Displacement) | 42 m/min |
| Max Speed (Max Motor Displacement) | 21 m/min |
| Min Stationary Control Speed | ＜0.5 m/min |
| Applicable CT OD | 2" ~ 3.5" |
| Gooseneck | 120" Hydraulic Folding Type |
| Stripper Connection Flange | 11.06" |
| Working Drive Pressure | 0–5000 PSI |
| Clamping Pressure Range | 0–3000 PSI |
| Chain Tension Pressure Range | 0–3000 PSI |
| Folded Dimension (L×W×H, Excl. Gooseneck) | ≤1800×1600×2800 mm |
| Total Weight (Excl. Gooseneck) | ~6.5 Tons |
| Operating Ambient Temperature | -20℃ ~ +55℃ |
Core Structural & Technical Advantages
1. Imported Linde HMV165 + Rexroth GFT110 Heavy-Duty Drive System
Dual imported Linde HMV165 variable displacement piston motors drive Rexroth GFT110 planetary reducers via spline shafts to rotate sprockets and 200-type heavy transmission chain. Motors default to full displacement; displacement automatically decreases when working pressure exceeds 120 PSI for precise low-speed control. Each motor is fitted with integrated static pressure release brake and Linde CBV balance valve to prevent tubing runaway, stable enough for offshore ultra-heavy load holding.
2. Five-Pair Multi-Stage Constant Pressure Clamping System
5 pairs of clamping cylinders divided into upper (2 pairs), middle (1 pair) and lower (2 pairs) clamping groups, each matched with independent 1L accumulator to maintain stable clamping pressure. Multi-group wide-range clamping design realizes uniform full-surface grip on large-size 2"~3.5" coiled tubing, minimizing slip wear and tubing deformation during long-time pulling & snubbing.
3. Heavy-Duty 200-Type Transmission Chain with 82 Slips
Adopts special 200 super heavy-load transmission chain, equipped with total 82 slip bases. Each slip base is installed with dual roller bearings and slips, connected by spring pins for fast on-site disassembly & replacement without hoisting the injector. Four tension cylinders and dual sprockets keep the chain consistently tightened during continuous ultra-heavy-load operation.
4. 120" Hydraulic Foldable Large Radius Guide Gooseneck
Hydraulically controlled folding 120" large-radius gooseneck with 5 built-in guide rollers. Top 3 roller boxes hydraulically open/close, others manually locked with high-strength anti-jump fasteners to stop tubing popping out. All roller shafts reserve grease lubrication holes, complete with dedicated 2" roller set and climbing maintenance ladder; folding control valve is integrated on the base for convenient operation.
5. Explosion-Proof 4-20mA Electronic Load Transducer
24V explosion-proof load cell outputs standard 4–20mA signal: 12mA for zero load, 19mA corresponds to 140,000 LBS pulling load, 8.5mA corresponds to -70,000 LBS snubbing load. Complete with matching cable and plug for direct connection to CT unit control panel, providing real-time accurate load monitoring for well safety control.
6. 72T Super High Load-Bearing Foldable Frame & Complete Safety Design
- Four top lifting lugs with total rated lifting load of 72T; base and 4.06" stripper flange support 63.5T hanging load
- Three-sided foldable working platforms + detachable safety guardrails, all sharp edges blunted per HSE
- Built-in ≥9m anti-fall protection device, 20T rated four-leg lifting slings for easy rig-up
- Pneumatic automatic chain lubrication system with ≥15L oil tank, 0.2–0.6MPa air supply
- Imported mechanical odometer records running mileage for scheduled maintenance
- Integrated quick joint manifold panel with FH/VOF series stainless steel couplings, clear functional marking for all hydraulic ports
7. Full Anti-Corrosion Surface Treatment
Complete sandblasting and acid pickling pretreatment removes rust and oil contamination before spraying standard 3020 red industrial paint, offering long-term protection against corrosive oilfield media, rain, snow and saline environments.
Application Scenarios
This 140K top-tier ultra-heavy coiled tubing injector head is the core traction equipment for super-large tonnage onshore and offshore coiled tubing fleets, widely deployed in:
- Ultra-heavy coiled tubing snubbing & ultra-deep well workover operations
- Offshore high-pressure fracturing, acidizing, plug milling & bridge plug setting
- Ultra-deep oil & gas reservoirs, high-pressure wells and high-H₂S sour gas fields
- All-year-round outdoor & marine construction under -20℃ ~ 55℃ variable temperature conditions
Standard Delivery Documents & Spare Parts
Supplied Documents
- Product Certificate ×1
- Operation & Maintenance Manual ×2
- Explosion-proof Load Transducer Certificate ×1
Standard Spare Parts Kit
High pressure filter elements, accumulator inflating tool, slip gaskets, full set of FH/VOF quick couplings with dust caps, 7-core explosion-proof socket, spare slips and slip bases.
Quality Warranty & After-Sales Service
We provide full quality warranty for all 140K CT injectors. Any equipment failure caused by design or material defects will be repaired, replaced or maintained free of charge within the warranty period. Consumable wearing parts (filter elements, rubber seals, slips) are excluded from free warranty coverage. Our global technical team provides remote troubleshooting and on-site service support upon customer demand.
FAQ
Q1: What are the max pull and snub forces of this 140K injector head?
A: Continuous pulling force reaches 140,000 LBS, continuous snubbing force is 70,000 LBS, suitable for ultra-heavy offshore & deep well intervention jobs.
Q2: What coiled tubing sizes can this injector grip?
A: Compatible with coiled tubing outer diameters ranging from 2" to 3.5".
Q3: What is the gooseneck radius of this injector?
A: Equipped with hydraulic folding 120" large radius gooseneck for large-size CT guiding.
Q4: What brand hydraulic components are adopted?
A: Hydraulic motors are imported Linde HMV165, reducers are Rexroth GFT110, balance valves are Linde CBV series.
Q5: Can this injector be used for offshore sour gas wells?
A: We offer customized NACE MR-0175 anti-sulfur treatment for the whole machine to adapt to offshore high-sulfur oil and gas fields.
