CTU 360/1.5-630/T 80K Trailer CT Unit | CAT C13 80000Lbs Mobile Coiled Tubing Rig
Coiled Tubing Unit
Product Overview

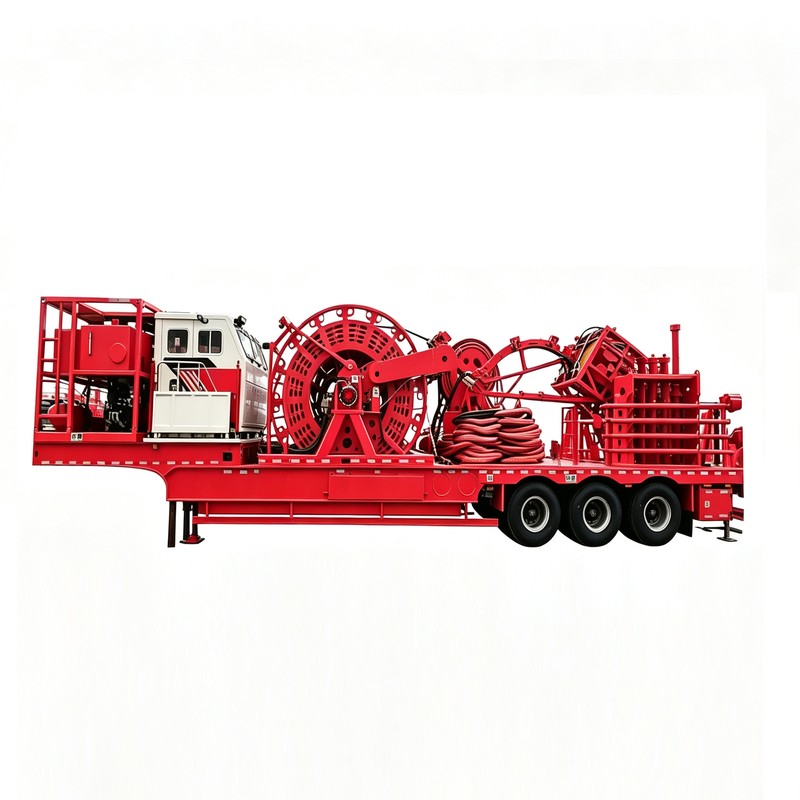

CTU 360/1.5-630/T 80K trailer mounted coiled tubing unit is fully integrated highway mobile coiled tubing workover equipment, all core modules (power pack, lifting control cabin, 80K injector, large capacity tubing reel, complete 15K well control stack) fixed on CIMS heavy-duty tri-axle semi-trailer chassis. Different from split skid CT unit, this one-piece trailer design realizes single truck transportation, greatly reducing relocation time and logistics cost for scattered mountain, desert and plateau well clusters.
Powered by genuine USA CAT C13 520HP turbo diesel engine, matched German STIEBEL transfer box and full PARKER closed hydraulic system. Rated continuous pull 80,000 lbs, snub thrust 40,000 lbs, matched 123" reel storing up to 6300m of 1.5" coiled tubing. Full well control package includes 5-1/8" 15K quad ram BOP, 4-1/16" stripper & lubricator, all wetted metal comply with NACE MR-01-75 anti-H2S standard, suitable for sour high-pressure reservoir operations.
Equipped AB PLC DAS data acquisition system, dual explosion-proof CCTV, 6KW auxiliary generator and full hydraulic hose reels. Whole unit designed per API Spec 6A, SY/T, NACE standards, stable operation at -20℃ ~ +50℃, altitude ≤2000m. Pre-assembled with hydraulic outriggers for fast leveling & rig-up, ideal for oil service fleets with frequent well site relocation.
Full Technical Parameter Table
Whole Trailer Basic Spec
Parameter Item
Technical Data
Model
CTU 360/1.5-630/T 80K Trailer CT Unit
Overall Dimension
~13600 × 3000 × 4400 mm
Total Weight
~57 Tons
Chassis
CIMS 3-axle heavy semi-trailer, Max load 64T, Ground clearance >350mm
Operating Temp Range
-20℃ ~ +50℃
Applicable Altitude
≤2000m
Compliance Standard
API Spec 6A, SY/T 6761, NACE MR-01-75, ISO9001
Item
Specification
Continuous Pull Capacity
80,000 Lbs
Intermittent Pull Capacity
86,000 Lbs
Continuous Snubbing Thrust
40,000 Lbs
Max Running Speed
66 m/min (200 ft/min), Min creep speed 2 ft/min
Applicable CT OD
1.5"
Gooseneck Radius
72" foldable hydraulic gooseneck
Reel Size
Flange OD 123", Core 72", Inner Width 72"
Max CT Storage
1.5" × 6300m
Well Control Working Pressure
15,000 PSI
Quad Bore
5-1/8" Quad Ram BOP
Stripper & Lubricator Bore
4-1/16"
Module
Core Brand
Main Engine
CAT C13, USA (520HP@2100RPM)
Transfer Box
STIEBEL, Germany
Main Hydraulic Pumps
PARKER, USA
Injector Chain & Bearings
TSUBAKI (Japan) / CROWN (Canada)
Injector Reducer
REXROTH, Germany
Reel Drive Motor/Reducer
LEDUC (France) + O&K (Germany)
High Pressure Rotary Joint
STONE, USA
Flowmeter/Sensor
EDD / Viatran / Honeywell, USA
DAS Control System
AB PLC Data Acquisition
Aux Generator
KOVO 6KW 220VAC
Hydraulic Hoses
Manuli, Italy
Control Cabin Spec
Cabin Size: 2100×2100×2000mm, 1m hydraulic lifting stroke with mechanical lock
Full air conditioning, defrost wiper, noise insulation, explosion-proof HD CCTV
Touch screen DAS system: real-time depth, speed, tubing weight, wellhead/circulation pressure, flow, engine data, auto alarm record
Chinese & English bilingual operation, USB data export, curve storage over 1 month
5-1/8" Segmented Lubricator (8FT+4FT sections) All fluid contact metal NACE MR-01-75 H2S resistantam BOP
Side Door Stripper
Eight Core Product Advantages
All-In-One Complete Trailer Integration, Single Truck Transportation
Power station, lifting control cabin, 80K heavy injector, large capacity reel and full 15K well control stack all pre-mounted on one CIMS tri-axle semi-trailer. No separate skid disassembly & multi-vehicle hauling, cut relocation cost and rig-up time drastically for scattered mountain well pads. Equipped hydraulic outriggers for fast leveling after parking, no extra large hoist required.
CAT C13 Heavy-Duty Power & Import Hydraulic Configuration
Genuine USA CAT C13 520HP turbo diesel with triple radiator, stable full-load operation up to +50℃ high temperature. Matched German STIEBEL transfer box and full PARKER closed variable hydraulic system, multi-circuit independent power supply for injector, reel and well control, low vibration and long service life under continuous heavy load.
80,000 Lbs High Capacity Injector for Medium-Deep Wells
Max continuous pull force reaches 80,000 lbs, wide adjustable speed from precise 2ft creep to 66m/min fast running. Japan TSUBAKI heavy chain + Canada crown bearing + REXROTH reducer structure, 4 groups accumulator assisted clamping to evenly hold 1.5" tubing, built-in Honeywell load sensor to avoid tubing overload breakage risk. Foldable hydraulic gooseneck saves transport space.
6300m Large Capacity 1.5" Tubing Reel with Full Protection
123" large flange reel holds up to 6300 meters of 1.5" coiled tubing, reducing repeated tube transfer on deep well jobs. Multi-stage chain automatic forced level wind prevents tube stacking & abrasion, 100L remote pneumatic lubrication extends tubing lifespan. Dual mechanical & electronic counter ensures depth measurement accuracy. STONE 15K rotary joint guarantees zero leakage under high pressure circulation.
Full 15K NACE Anti-H2S Well Control Package
Complete 5-1/8" quad ram BOP + 4-1/16" stripper & lubricator, all wetted metal comply with NACE MR-01-75 standard, rated working pressure 15,000PSI, hydrostatic test pressure 22,500PSI. Perfectly match sour gas, high-pressure acid fracturing & snubbing operations without extra well control equipment procurement.
Intelligent Lifting Control Cabin with Full Data Recording
1m hydraulic lift control room with full air conditioning and explosion-proof CCTV. AB PLC DAS system records all construction parameters (tubing weight, depth, speed, wellhead pressure, flow, engine running data), stores historical curves for over one month, supports Excel report export and bilingual switching, convenient for construction quality traceability. All hydraulic & electric pipelines adopt quick connectors for fast site connection.
All-Climate & Plateau Adaptable Heavy-Duty Design
Whole trailer sandblasted heavy anti-corrosion coating, hydraulic system equipped low-temperature preheating device, CAT engine reliable cold start at -20℃. Designed for altitude ≤2000m plateau oilfields, anti-sandstorm, rain and coastal salt fog, fully meet harsh onshore working conditions. Complete HSE safety layout with anti-slip platform, safety ladders and rounded anti-collision corners.
Full 15K NACE well control stack: 5-1/8" quad BOP + 4-1/16" stripper + 5-1/8" lubricator
Double groups 40m hydraulic hose reels, complete quick connection manifold
KOVO 6KW auxiliary generator, integrated fuel & hydraulic oil tank
Full set installation fasteners, dedicated maintenance tool kit
Complete spare parts package per spare list
Full English operation manual, hydraulic & electrical drawings, factory test & component certification documents
Commercial & Warranty Terms
Warranty Period: 12 months after on-site well acceptance or 18 months post factory delivery (wearing parts like chain, rubber core, filters, plungers excluded)
Stock & Lead Time: 4.06" BOP version 5~6 months; 5.12" BOP version 2~3 months after 30% prepayment receipt
Payment Term: 30% T/T prepayment against PO, 70% balance inspection before factory shipment
Trade Term: FOB Tianjin Port, quotation valid for 30 days
Customization Support: Adjust reel capacity, injector tonnage, add remote data transmission, offshore anti-corrosion upgrade as field demand
Global Service: Factory 2-week free operation training; worldwide remote video troubleshooting, overseas on-site commissioning for large orders
FAQ Section
What is the maximum pulling force of this 80K trailer CT unit?
Continuous pull capacity up to 80,000 Lbs, intermittent peak pull 86,000 Lbs, snub thrust 40,000 Lbs for 1.5" coiled tubing.
What engine is equipped on this trailer rig?
Original USA CAT C13 turbocharged diesel engine with rated 520HP power, mature global spare parts supply network.
What is the maximum storage length of the tubing reel?
Standard reel holds up to 6300 meters of 1.5-inch coiled tubing.
What working pressure is the matched well control stack?
Full NACE anti-H2S well control equipment rated 15,000PSI working pressure, test pressure 22,500PSI.
Can this trailer CT unit work on plateau oilfields above 1000m?
Yes, designed for working altitude ≤2000m, stable performance for plateau & cold oilfield operations.
Inquiry CTA Block
Looking for highway mobile 80K trailer mounted coiled tubing unit for frequent well relocation? Send your tubing size and well working pressure, we provide full technical drawing, datasheet and factory competitive quotation within 24 hours.
