Product Overview

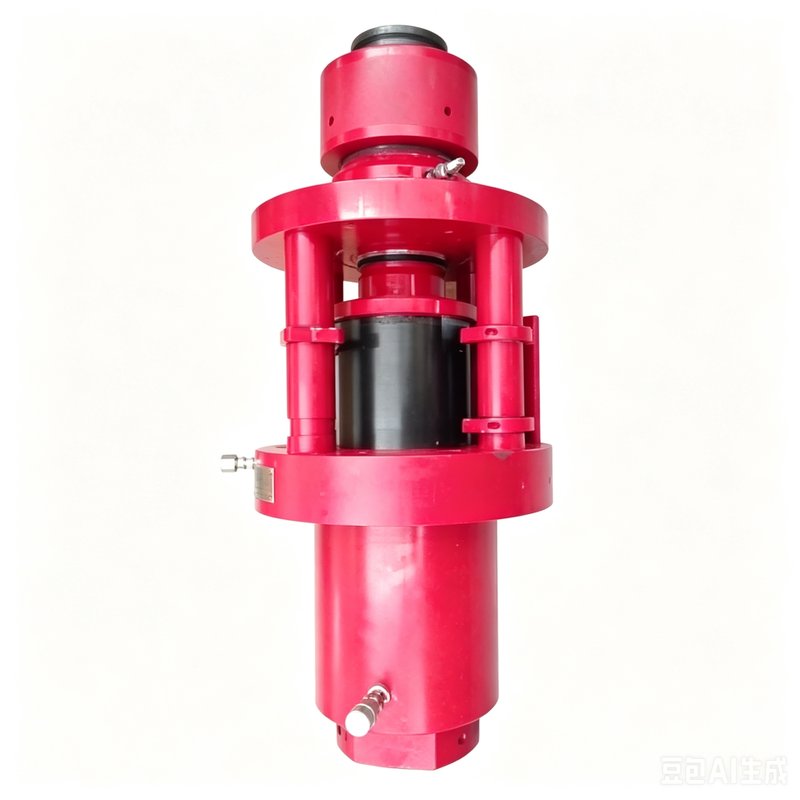

Single ram side door stripper, also known as coiled tubing stripping box or stuffing box, is essential well control equipment matched for coiled tubing operation trucks. Installed between injector head and BOP stack, it provides stable dynamic and static sealing when running and pulling coiled tubing to block wellbore fluid overflow. This 10000PSI CT stripper adopts split side door structure, allowing operators to replace seal packers without pulling out coiled tubing, greatly cutting construction downtime. All fluid contact metal parts meet NACE MR-01-75 anti-H₂S standard, suitable for conventional and sour oil & gas wells.
Key Features
- Side Door Quick Maintenance – Split side door design supports on-site replacement of rubber packers and guide sleeves with coiled tubing inside the well, no tubing tripping needed.
- Stable 10,000PSI Working Pressure – Rated working pressure: 10,000 PSI; factory hydrostatic test pressure reaches 15,000 PSI, fully meets standard well control requirements.
- Wide CT Size Compatibility – Fit coiled tubing OD: 1.5", 1.75", 2", 2.375", covers mainstream tubing sizes for onshore CT units.
- NACE MR-01-75 Sour Gas Resistance – All wetted metal components pass anti-sulfur treatment, reliable performance in hydrogen sulfide containing wells.
- CB44 Male Union Bottom Connection – Standard CB44 male union interface for fast connection with coiled tubing BOP stack and lubricator assemblies.
Technical Specifications
| Item | Parameter |
|---|---|
| Product Model | Single Ram Side Door Stripper |
| Nominal Bore | 4 1/16" |
| Working Pressure | 10,000 PSI |
| Hydrostatic Test Pressure | 15,000 PSI |
| Applicable Coiled Tubing OD | 1.5", 1.75", 2", 2.375" |
| Bottom Connection | CB44 Male Union |
| Sour Service Standard | NACE MR-01-75 H₂S Resistance |
| Control Mode | Single hydraulic cylinder remote control |
Application Scenarios
Our single ram coiled tubing stripping box is widely used for conventional coiled tubing operations, including workover, snubbing, fracturing, acidizing and plug milling in medium-pressure onshore oil & gas fields.
FAQ
Q1: What is single ram side door stripper used for?
A: It is coiled tubing well control equipment to seal around moving coiled tubing, prevent oil, gas and water leakage during CT tripping. Side door design simplifies seal replacement.
Q2: What tubing sizes can this 10000PSI stripper fit?
A: Compatible with 1.5", 1.75", 2", 2.375" outer diameter coiled tubing.
Q3: Is this stripper available for H₂S sour wells?
A: Yes, all fluid-contact metal parts comply with NACE MR-01-75 anti-sulfur standard.
Get Custom Datasheet & Factory Quote
We manufacture coiled tubing well control equipment with rigorous quality control and complete certification. Contact us with your CT size, working pressure and well requirements for detailed datasheet and competitive factory quotation.
