Product Overview

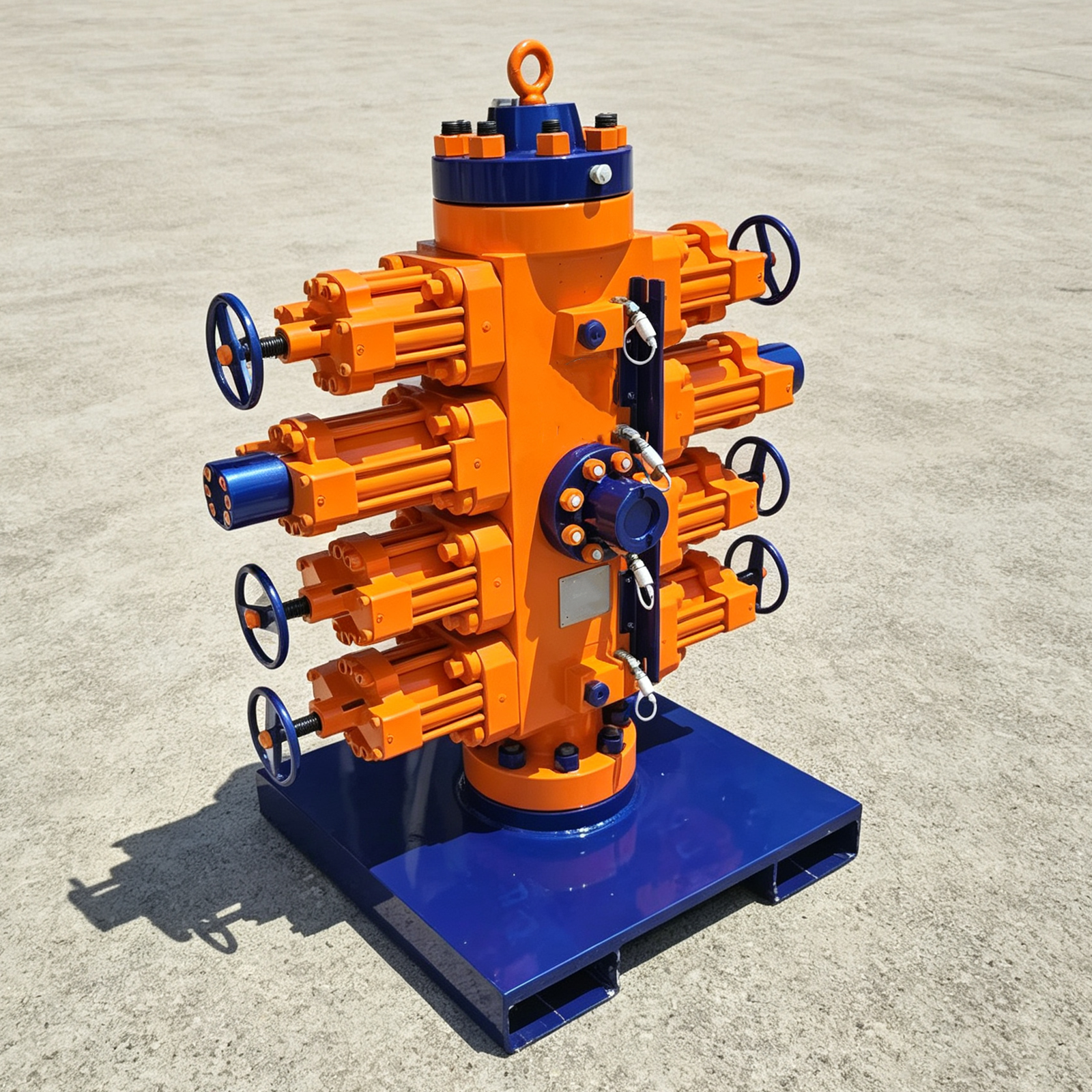

3-1/16" 10K integral hydraulic quad ram blowout preventer is compact lightweight well control equipment specially matched for 40K / 60K medium-small skid mounted coiled tubing units, applicable for 1.5" to 2" standard coiled tubing construction. It adopts one-piece integral casting body with four independent ram cavities and hydraulic ram opening and closing drive system.
Main Technical Specifications
| Technical Parameter | Specification |
|---|---|
| Structure Type | Integral monoblock, four ram, full hydraulic actuation |
| Applicable Coiled Tubing OD | 1.5" ~ 2" |
| Rated Working Pressure | 10,000 PSI |
| Factory Hydrostatic Test Pressure | 15,000 PSI |
| Temperature Class | T-20 (-29℃ to 121℃) |
| Anti-Corrosion Standard | All wetted metals meet NACE MR-01-75 H2S resistance |
| Top Connection | BX-154 10K flange × CB34 female union |
| Bottom Connection | BX-154 10K flange × CB34 male union |
| Side Kill Line Port | BX-152 flange × 2" FIG1502 female union |
| Complete Ram Kits | Blind ram / Shear ram / Slip ram / Pipe ram |
Core Product Advantages
Compact Lightweight Integral Cast Structure
Small-bore 3-1/16" monoblock design reduces weight and wellhead space.
Full NACE MR-01-75 Anti-H2S Performance
All fluid-contact alloy materials pass anti-sulfur treatment.
10K Stable Pressure with 1.5 Times Safety Factor
10,000PSI working pressure and 15,000PSI factory water pressure test.
Specialized for 1.5"~2" Medium-Small Coiled Tubing
Optimized ram sealing size targeting mainstream 1.5-inch and 2-inch CT.
Standard Industry Union Flange Interfaces
Uniform CB34 top/bottom union and 2" FIG1502 side kill port.
Application Scenarios
- Conventional onshore oil & gas well cleanout, paraffin removal and bridge plug milling
- Low & medium pressure acidizing, nitrogen displacement and well testing operation
- Medium sulfur gas well snubbing non-stop production intervention
- 40K / 60K skid mounted coiled tubing unit supporting well control stack
- Mountain small well cluster compact wellhead construction
Standard Delivery List
- Integral 3-1/16" 10K quad ram BOP main casting body
- Full set H2S resistant ram assemblies
- CB34 male and female union matching connectors
- Hydraulic drive fittings and complete sealing spare parts kit
- English operation manual, factory pressure test report, NACE material certification
FAQ
What size coiled tubing does this 3-1/16 quad BOP support?
It is suitable for 1.5" to 2 inch outer diameter coiled tubing.
Is this blowout preventer resistant to hydrogen sulfide?
Yes, all metal parts contacting well fluid comply with NACE MR-01-75 anti-H2S standard.
What is the test pressure?
Rated working pressure 10,000PSI, factory hydrostatic test pressure up to 15,000PSI.
