Product Overview

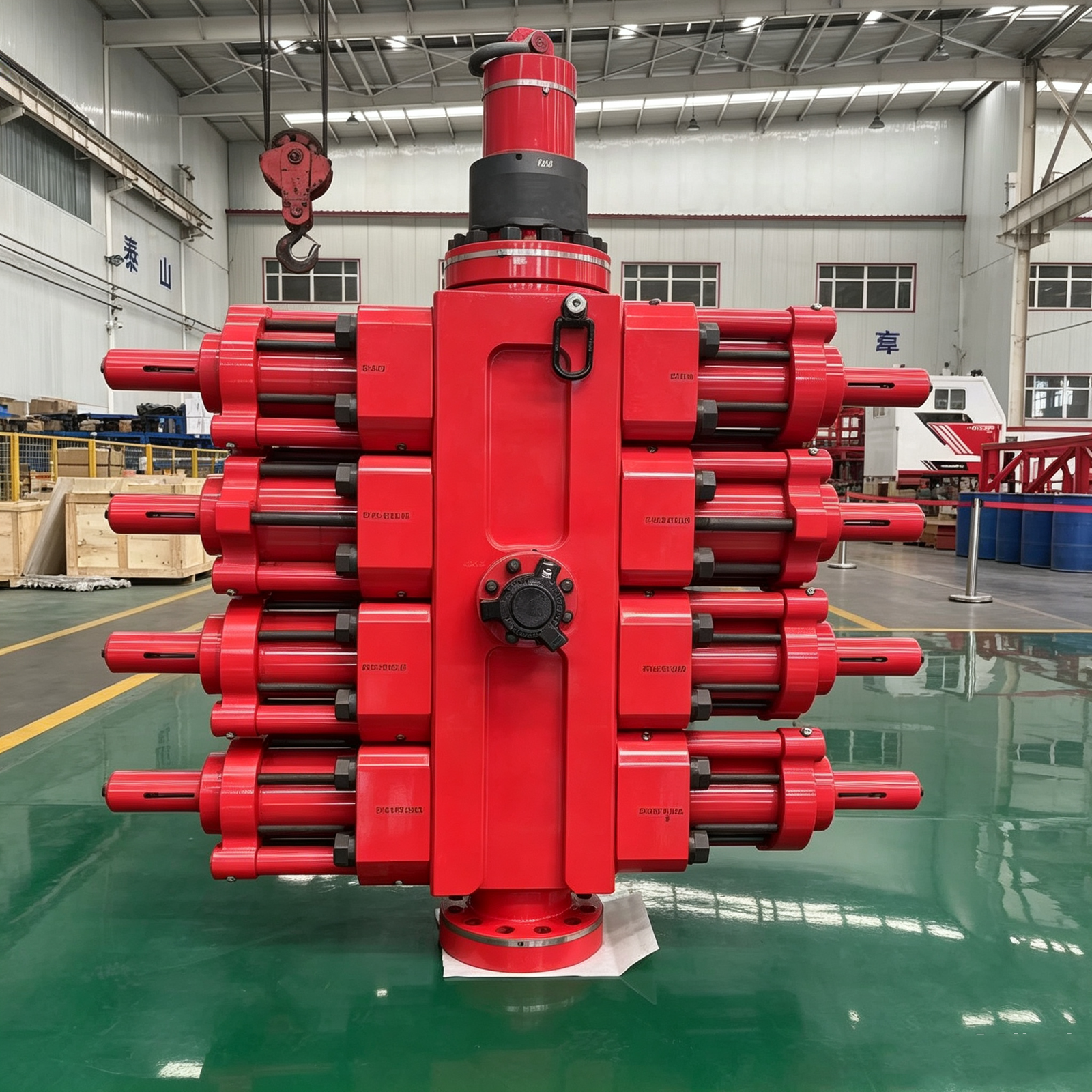

4.06"-10KSI quad ram blowout preventer is standard well control safety equipment for 60K / 80K medium load skid mounted coiled tubing unit. It adopts integral cast four ram integrated structure, full hydraulic ram opening and closing drive, and complete blind ram, shear ram, slip ram and pipe ram groups.
Main Technical Specifications
| Technical Parameter | Specification |
|---|---|
| Structure | Integral monoblock four ram, full hydraulic drive |
| Applicable CT Size | 1.5" ~ 2.875" OD coiled tubing |
| Rated Working Pressure | 10,000 PSI |
| Factory Hydrostatic Test Pressure | 15,000 PSI |
| Temperature Class | T-20 (-29℃ to 121℃) |
| Anti-Corrosion Standard | NACE MR-01-75 H2S resistant for all fluid contact metal |
| Top Connection | BX155-10KSI flange + CB44 female union with lifting cap |
| Bottom Connection | BX155-10KSI flange to CB44 male union |
| Side Outlet Connection | BX-152 flange to 2" FIG1502 female union |
| Complete Ram Assembly | Blind ram / Shear ram / Slip ram / Pipe ram |
Core Product Advantages
Compact Integral Four-Ram Body
Smaller 4.06" bore compact monoblock design is lighter and easier to hoist.
NACE MR-01-75 Anti-H2S Construction
All internal metal parts touching well fluid adopt anti-sulfur alloy.
Stable 10K Pressure Safety Performance
10,000PSI design pressure and 15,000PSI factory test pressure.
Medium Tubing Special Matching
Optimized for 1.5" to 2.875" mainstream medium coiled tubing.
Standard CB44 Union Interface
Universal BX155 flange + CB44 union top/bottom connector and 2" FIG1502 side port.
Application Scenarios
- Conventional oil & gas well cleanout, paraffin removal and plug milling workover
- Medium pressure acidizing, nitrogen displacement and well testing
- 60K / 80K medium load skid coiled tubing unit supporting well control stack
- Medium H2S content gas well snubbing non-kill operation
- Mountain small well cluster continuous coiled tubing service
Standard Delivery List
- Integral 4.06"-10K quad ram BOP main body
- Full set four H2S resistant ram assemblies
- CB44 lifting cap and matching union connection fittings
- Hydraulic drive accessories and complete sealing spare parts kit
- English operation manual, factory pressure test certificate, NACE material document
FAQ
Which coiled tubing rig matches this 4.06" quad BOP?
Perfect match for 60K and 80K skid mounted coiled tubing unit.
Is this 4.06 inch BOP anti hydrogen sulfide?
Yes, all wetted metal complies with NACE MR-01-75 anti-sulfur standard.
What is the rated working pressure?
10,000PSI working pressure and 15,000PSI hydrostatic test pressure.
Inquiry
Need compact 4.06" 10K NACE quad ram BOP for your 60K/80K CT unit? Send your working parameters to get full technical drawing and factory price quickly.
