Product Overview

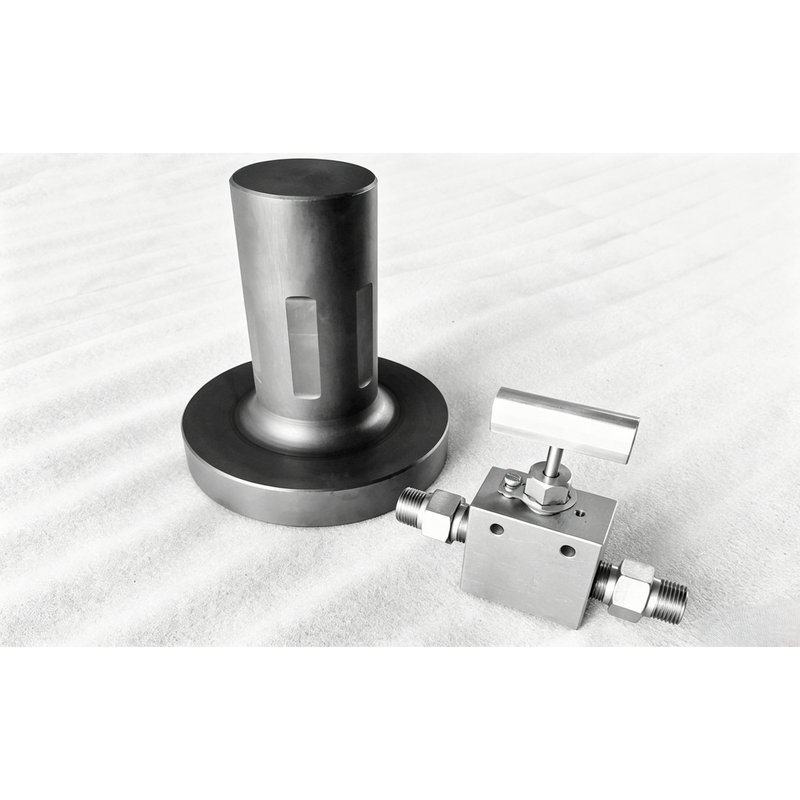

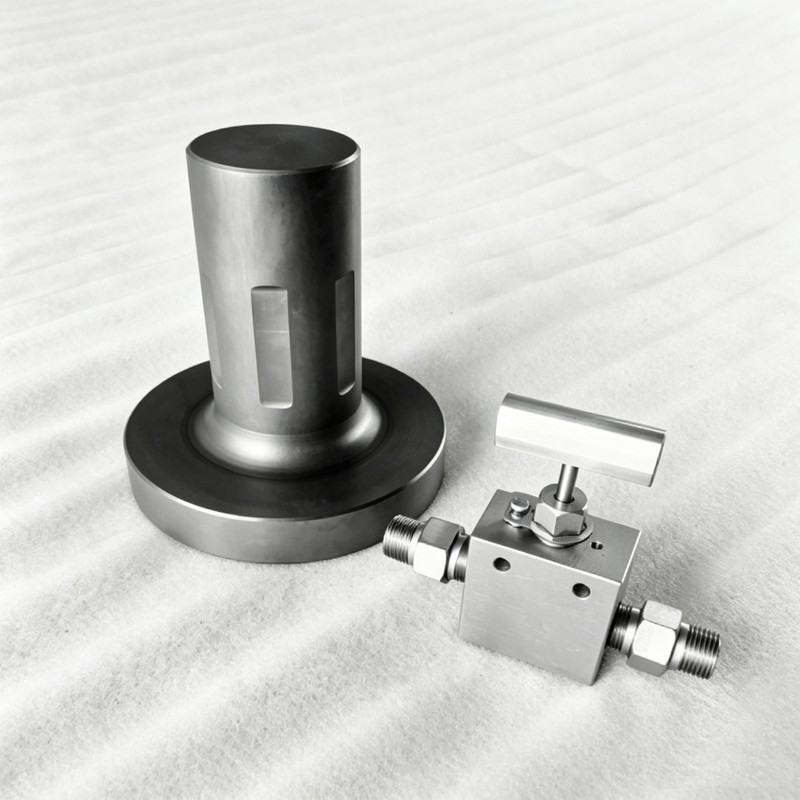

Our coiled tubing pressure & tensile test plate is a specialized fixture for performing hydraulic pressure testing and tension pulling tests on coiled tubing sections before field deployment. The large cylindrical flange test plate serves as the main load-bearing mandrel: it anchors the coiled tubing end, transmits huge tensile pulling force during tension testing, and forms a sealed end cavity for internal hydrostatic testing. The matching high-pressure manual needle valve connects to the internal cavity, used to inject test fluid, vent air and monitor internal pressure during pressure testing.
The main test plate body adopts monolithic forged alloy steel with precision machining; long side slots optimize stress distribution while retaining structural rigidity under large tensile load. The needle valve is constructed from stainless steel for excellent sealing performance and corrosion resistance. Sour-grade material versions comply with NACE MR0175 / ISO 15156 for testing H₂S service coiled tubing. This assembly is widely used in coiled tubing manufacturing plants, service yards to verify tubing pressure bearing capacity, tensile strength, check for hidden cracks and leakage before downhole operations.
Core Features & Benefits
- Heavy forged test plate bears full tensile load of coiled tubing pull test, avoids fixture deformation or fracture
- Integrated end sealing structure creates closed chamber for hydrostatic pressure testing of tubing interior
- Supporting high-pressure needle valve realizes fluid injection, exhaust and pressure holding control
- Optimized slotted structure on cylinder balances weight and structural strength, improves stress dispersion under tension
- Precision machined sealing contact surface ensures zero leakage during long-duration pressure hold tests
- Stainless steel needle valve has excellent erosion and corrosion resistance against test medium
- Sour metallurgy options for testing corrosion-resistant coiled tubing used in sour gas wells
- Custom inner diameter, flange size and tensile rating to match different coiled tubing outer diameters
- Reusable fixture reduces custom tooling cost for batch coiled tubing inspection
- Suitable for both factory batch inspection and on-site re-testing of used coiled tubing
Technical Specifications
| Model No. | Fit CT OD | Max Test Tensile Load | Max Hydro Test Pressure | Valve Port Size | Temperature Range | Service Grade |
|---|---|---|---|---|---|---|
| TTP-125 | 1.25" | 45000 lbs | 15000 psi | 1/4" NPT | 0°F ~ 350°F | Standard |
| TTP-175 | 1.75" | 70000 lbs | 15000 psi | 1/4" NPT | 0°F ~ 350°F | Standard |
| TTP-200 | 2.00" | 90000 lbs | 15000 psi | 1/4" NPT | 0°F ~ 350°F | Standard |
| TTP-175-S | 1.75" | 70000 lbs | 15000 psi | 1/4" NPT | 0°F ~ 350°F | Sour H2S |
| TTP-200-S | 2.00" | 90000 lbs | 15000 psi | 1/4" NPT | 0°F ~ 350°F | Sour H2S |
Note: Custom tensile rating, interface dimension and valve specification are available upon request.
Typical Applications
- Hydrostatic pressure testing for new produced coiled tubing segments
- Tensile pull testing to verify yield strength of coiled tubing
- Re-inspection of used coiled tubing after long term downhole service
- Pressure tightness verification for coiled tubing welded joints
- Performance testing of sour grade coiled tubing materials
- Third-party inspection laboratory coiled tubing qualification testing
- Pre-job yard testing for coiled tubing workover projects
Advantages Over Simple Custom Welded Test Fixtures
- Integral forged test plate eliminates welding seam failure risk under high tension and pressure
- Matched precision high-pressure valve removes the trouble of sourcing separate control valves
- Optimized slotted design reduces overall weight while maintaining high load capacity for easier handling
- Standardized interface allows repeated use across multiple batches of coiled tubing testing
- Precision sealing face delivers stable pressure holding performance for long test cycles
- Sour compatible configurations satisfy strict testing requirements for harsh well tubing assets
FAQ
Can the fixture be customized for special coiled tubing diameters?
Yes, we adjust inner clamping size, flange dimension to fit your target coiled tubing specification.Is sour service version available for corrosion resistant tubing testing?
We offer NACE MR0175 compliant test plate and valve assemblies with complete material certificates.Can we choose different valve connection sizes?
Multiple thread standards including NPT, BSP are supported for valve ports to adapt existing test pump piping.What is production lead time?
Standard models ship within 7–12 working days; customized pressure & tensile test plates take 18–30 working days.CTA
Get Custom Specification Sheet & Ex-Factory Bulk Price
We manufacture coiled tubing test fixtures and related high-pressure components with full load and hydro testing. Share your coiled tubing outer diameter, maximum tension and test pressure, our engineering team will send detailed datasheet and quotation within 24 hours.
