Product Overview

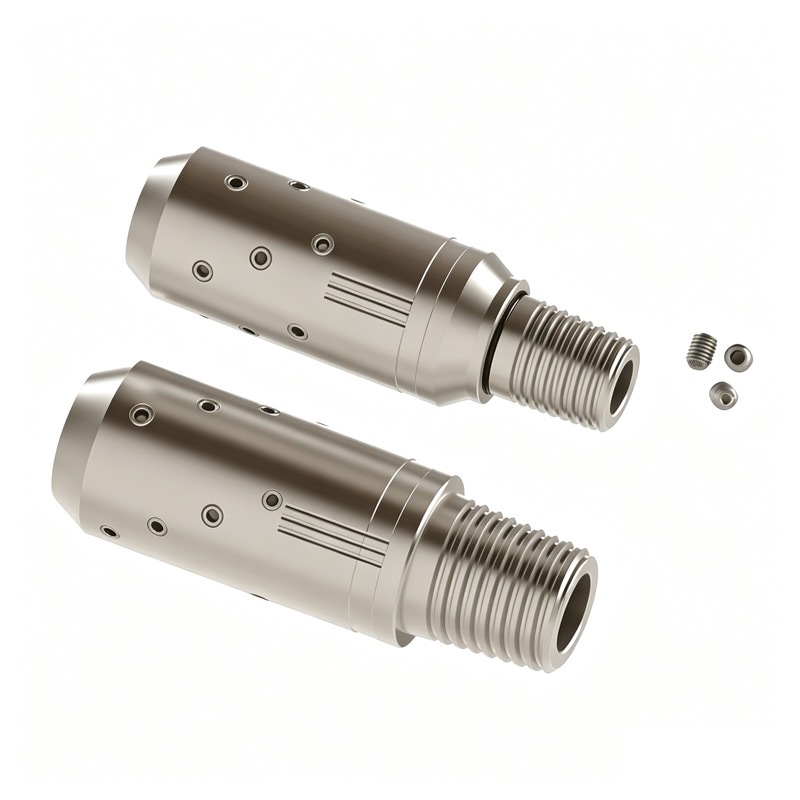

Our Rivet Connector is a robust mechanical coupling specially engineered to connect coiled tubing with bottom hole assemblies for oil & gas well intervention. It adopts a multi-point rivet fastening locking design, securing the inner tubing wall evenly via distributed alloy rivets to deliver stable bidirectional tension and torque transmission. Different from traditional slip-type connectors, the rivet locking structure eliminates slip loosening risks under long-duration jarring, milling and pulling loads. The integrated slim outer diameter matches the coiled tubing body perfectly, avoiding stuck hazards inside restricted-ID casings, nipples and slimhole sections. Manufactured from high-strength forged alloy steel with anti-corrosion surface treatment, it supports both standard sweet wells and H2S sour well environments. All rivet fasteners are independently replaceable for low-cost on-site maintenance without replacing the whole connector body.
Core Features & Benefits
- Multi-point distributed rivet locking design for uniform tubing wall stress
- High tensile and bidirectional torque capacity for heavy-duty downhole tasks
- Replaceable alloy rivet fasteners, easy field re-dressing and maintenance
- Slim uniform outer diameter consistent with coiled tubing, smooth passage through narrow wellbores
- One-piece forged alloy steel body with anti-sulfur treatment for sour service
- Precision CNC machined sealing grooves for reliable high-pressure fluid sealing
- Standard industry connection threads, compatible with mainstream coiled tubing BHA strings
- Simple rivet installation workflow, no complicated special torque tools required
- Full custom sizing available for 1", 1-1/4", 1-1/2", 1-3/4", 2" coiled tubing
- Fully API standard certified with complete material test certificates for export
Technical Specifications
| Model No. | CT Size | Tool OD | Min Flow ID | Service Type | Standard Connection | Overall Length | Max Rated Tensile | Max Torque | Working Press. | Temp Range | Rivet Qty |
|---|---|---|---|---|---|---|---|---|---|---|---|
| R206-007-08 | 1 1/2" | 1.687" | 0.687" | H2S | 1" AMMT Pin | 10 3/8" | 17,500 lbs | 330 ft-lbs | 5,000 PSI | 0°F ~ 350°F | 8 pcs |
| R206-030-09 | 1 1/2" | 2.25" | 0.687" | H2S | 1 1/2" AMMT Pin | 10 3/8" | 32,600 lbs | 620 ft-lbs | 5,000 PSI | 0°F ~ 350°F | 10 pcs |
| R206-036-08 | 1 3/4" | 1.750" | 0.687" | H2S | 1" AMMT Pin | 10 3/8" | 22,400 lbs | 400 ft-lbs | 5,000 PSI | 0°F ~ 350°F | 8 pcs |
| R206-040-09 | 1 3/4" | 2.25" | 0.687" | H2S | 1 1/2" AMMT Pin | 10 3/8" | 29,200 lbs | 750 ft-lbs | 5,000 PSI | 0°F ~ 350°F | 10 pcs |
| R206-041-09 | 2" | 2.25" | 0.900" | H2S | 1 1/2" AMMT Pin | 11 1/4" | 38,800 lbs | 1,020 ft-lbs | 5,000 PSI | 0°F ~ 350°F | 12 pcs |
| R206-041-23 | 2" | 2.875" | 0.900" | H2S | 2 3/8" PAC Pin | 11 1/4" | 38,800 lbs | 1,160 ft-lbs | 5,000 PSI | 0°F ~ 350°F | 12 pcs |
Note: Custom coiled tubing dimensions, thread types, rivet counts and anti-corrosion treatments are available per client technical drawings.
Typical Applications
- Onshore & offshore coiled tubing drilling and high-torque milling
- Downhole junk fishing, sand washing and well cleanout operations
- Slimhole and restricted-ID casing intervention maintenance
- Gas lift well servicing and deviated extended-reach CT projects
- Sour H2S well intervention with corrosive downhole fluid environments
Advantages vs Slip Type Connectors
- Multi-point rivet distributed locking eliminates slip creep or loosening under continuous jarring vibration
- Uniform radial compression on CT inner wall minimizes tubing deformation and fatigue damage
- No protruding external components, reducing abrasion from abrasive wellbore fluids
- Separable rivet spare parts cut overall operation maintenance costs
- Compact single-body structure shortens total BHA assembly length for complex well trajectories
FAQ
Q: What sizes of coiled tubing do your rivet connectors fit?
A: Standard range covers 1", 1-1/4", 1-1/2", 1-3/4", 2" CT. Custom OD, wall thickness and thread connections are supported.
Q: Can this handle sustained high torque for CT milling?
A: Yes. Evenly distributed alloy rivets form a full contact locking interface, delivering stable bidirectional torque transfer during long-term high-load milling and jarring cycles.
Q: Do you provide H2S resistant versions for sour wells?
A: All models offer anti-sulfur alloy steel body and rivet options. MTC and API compliance documents supplied.
Q: What is your production lead time?
A: Standard in-stock spec ships within 3-7 working days; custom rivet connectors take 15-25 working days.
Get Custom Technical Datasheet & Ex-Factory Bulk Quotation
We are direct factory manufacturing full series coiled tubing downhole intervention tools with rigorous quality control and complete certification packages. Share your CT size, working pressure and well conditions, our engineering team will reply with datasheet and competitive factory pricing within 24 hours.
