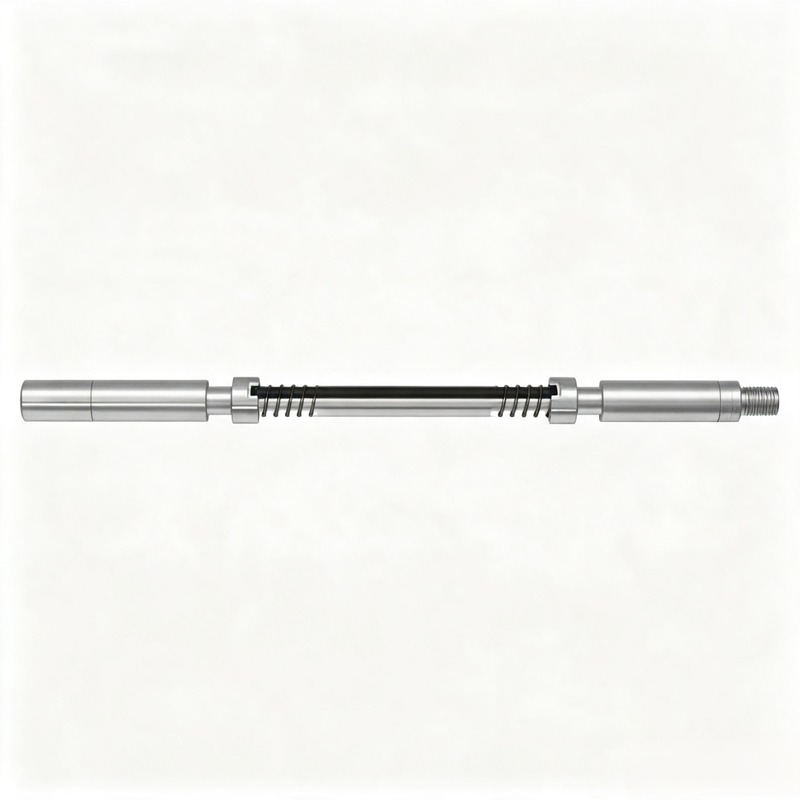

The Flow Activated Bow Spring Centralizer is a specialized differential pressure controlled retractable downhole centralizer developed for oilfield casing running and primary cementing operations. Its unique core working principle is that all bow springs stay fully collapsed against the tool body under static tubing tripping status with no internal fluid differential pressure. Only when surface pumps circulate fluid to form stable pressure difference inside the centralizer, the bow springs expand radially to lift tubing to the geometric center of casing bore. Once circulation stops and pressure difference disappears, bow springs automatically retract back to compact status.
This retractable structure perfectly solves the serious abrasion problem of ordinary fixed open centralizers in wells with narrow restrictions, bore neckdown and irregular wellbores. The product line supplies two independent material grades: STD standard carbon steel for conventional sweet oil wells with mild downhole environments, and H₂S anti-sulfur alloy for high hydrogen sulfide corrosive sour gas wells. Standard specifications cover mainstream tubing outer diameters including 1-11/16", 2-1/8", 2-7/8", 3-1/2", pre-machined with four universal premium threads: 1"AMMT, 1-1/2"AMMT, 2-3/8"PAC and NC26. Custom non-standard outer diameter, inner bore, assembly length and anti-corrosion alloy materials can be customized based on client technical drawings and well working parameters.
The full product series contains eight independent PN part numbers split into STD standard grade and H₂S sour resistant grade, all parameter details listed below: STD Standard Carbon Steel Models
PN L4071690120: Tool OD 1-11/16", Max Expansion OD 6", Inner Bore 0.39", Overall Length 43", Connection Thread 1"AMMT, Working Grade STD
PN L4072125120: Tool OD 2-1/8", Max Expansion OD 7", Inner Bore 0.78", Overall Length 43", Connection Thread 1-1/2"AMMT, Working Grade STD
PN L4072875120: Tool OD 2-7/8", Max Expansion OD 7", Inner Bore 0.8", Overall Length 35.2", Connection Thread 2-3/8"PAC, Working Grade STD
PN L4073500120: Tool OD 3-1/2", Max Expansion OD 8", Inner Bore 0.8", Overall Length 38.6", Connection Thread NC26, Working Grade STD H₂S Sour Resistant Alloy Models
PN L4071690320: Tool OD 1-11/16", Max Expansion OD 6", Inner Bore 0.39", Overall Length 43", Connection Thread 1"AMMT, Working Grade H₂S
PN L4072125320: Tool OD 2-1/8", Max Expansion OD 7", Inner Bore 0.78", Overall Length 43", Connection Thread 1-1/2"AMMT, Working Grade H₂S
PN L4072875320: Tool OD 2-7/8", Max Expansion OD 7", Inner Bore 0.8", Overall Length 35.2", Connection Thread 2-3/8"PAC, Working Grade H₂S
PN L4073500320: Tool OD 3-1/2", Max Expansion OD 8", Inner Bore 0.8", Overall Length 38.6", Connection Thread NC26, Working Grade H₂S Custom non-standard tool outer diameter, inner flow bore, assembly length, special customized threads and enhanced anti-corrosion alloy material versions are available via engineering consultation. The centralizer can be installed at multiple intervals along completion tubing strings for full-length uniform tubing centering during full well cementing construction.
Differential Pressure Automatic Retractable Bow Spring Mechanism:Different from traditional permanently open bow spring centralizers, this flow activated model relies on fluid pressure difference to control spring expansion and retraction. During tubing running, pulling out and passing narrow restrictions, bow springs keep fully folded and will not continuously rub against casing inner walls, greatly cutting spring wear loss and avoiding early tool failure caused by long-term friction. Only cementing circulation pressure pushes springs open to realize tubing centralization, balancing construction efficiency and tool service life.
Hardened Wear Resistant Bow Spring Strips:All bow spring components go through integrated surface hardening heat treatment, forming dense anti-abrasion protective layers on contact surfaces. Even under long-time radial supporting load during cement displacement, the springs maintain stable mechanical strength without thinning, bending or fracture. Thickened spring arc structure provides powerful uniform radial supporting force to guarantee complete tubing centering effect in deviated and horizontal wells.
Rapidly Adjustable Centralizing Expansion Range:Internal limit sleeve assemblies allow field engineers to quickly modify the maximum expansion outer diameter of bow springs without complete tool disassembly. Operators only adjust positioning lock rings to switch matching casing size within minutes. One single centralizer main body can adapt multiple casing inner diameters, reducing spare part stocking quantity and inventory capital pressure for oilfield service companies.
Dual Working Condition Material Matching Scheme:STD standard carbon steel grade adopts cost-effective high strength carbon steel raw material, suitable for vertical, deviated and horizontal onshore oil wells with low hydrogen sulfide, moderate temperature and pressure. H₂S sour resistant alloy grade uses special sulfide stress cracking resistant alloy fully compliant with international sour service standards, effectively resisting uniform corrosion and metal cracking under high H₂S, high chloride sour downhole fluid environments. Clients select corresponding grade according to formation fluid composition of target construction wells.
Complete Series Standard Premium Connection Threads:All standard flow activated centralizer models are pre-processed with four mainstream oilfield premium tubing threads: 1"AMMT for 1-11/16" small tubing, 1-1/2"AMMT for 2-1/8" medium tubing, 2-3/8"PAC for 2-7/8" medium-large tubing, NC26 for 3-1/2" large tubing. All thread precision forging meets unified global oil industry standards, enabling direct plug-and-play assembly with completion tubing, packers and cementing tools without extra transition subs.
Uniform Annular Clearance Improves Cement Zonal Isolation:When differential pressure opens bow springs, even radial supporting force evenly lifts tubing to casing center, forming consistent equal-thickness annular space around the whole tubing circumference. During cement slurry pumping and displacement, uniform clearance eliminates flow channeling defects, ensures full cement coverage around tubing outer wall, and greatly enhances long-term sealing and zonal isolation performance of cement sheath after solidification.
1. Restricted Bore & Neckdown Well Casing Running & Cementing This is the core applicable working condition for flow activated centralizer. Collapsible bow springs smoothly pass narrow bore restrictions, collapsed casing sections and well neckdown during tubing tripping without serious friction abrasion, solving the premature damage problem of conventional centralizers in irregular narrow wellbores.
2. Conventional Oilfield Primary Cementing Construction During casing running, folded springs reduce tripping drag to lower rig load; once cement circulation starts, pressure difference opens springs to center tubing, guarantee uniform cement displacement and complete circumferential cement sheath coverage for reliable interlayer isolation.
3. High H₂S Sour Gas Well Completion & Cementing H₂S anti-sulfur alloy grade centralizer adapts harsh high-hydrogen sulfide corrosive downhole environments of sour gas reservoirs, maintaining stable pressure retractable expansion performance and resisting sulfide corrosion during long-term downhole service.
4. Vertical, Deviated & Horizontal Conventional Oil Well Completion All STD carbon steel models are suitable for land oil wells with mild low-corrosion downhole media, covering casing running, primary cementing and stimulation tubing running projects of vertical, deviated and horizontal well trajectories.
Fully pre-assembled flow activated bow spring centralizer main body, all connection threads processed with anti-rust passivation protective coating
Spare hardened wear resistant bow spring strips, internal expansion limit adjusting components, spring positioning lock rings and plastic thread protective caps for transportation and warehouse storage
Complete factory inspection document set: dimensional tolerance test report, raw material metal composition certification, bow spring abrasion fatigue cycle test record, differential pressure expansion-retraction calibration report
Multi-language product operation manual, including tool disassembly maintenance steps, bow spring expansion range adjustment operation guide and standard casing running & cementing construction procedures for field completion engineers
Optional third-party independent material certification and tubing string centralizer layout scheme documents to meet overseas oilfield project bidding supporting material demands
Warranty Regulation: 12 months after factory shipment or 1200 cumulative downhole tripping & fluid circulation cycles, whichever condition arrives first
Strict Full Batch Factory Inspection: Every finished flow activated centralizer undergoes multiple rigorous tests before delivery, including dimensional precision detection, thread tensile load test, bow spring radial support force inspection, pressure retraction stability calibration and full surface visual defect screening to guarantee consistent batch performance
Free Global Professional Oilfield Technical Support: Provide free tubing & casing size matching consultation, full tubing string centralizer layout design and bow expansion range parameter adjustment technical guidance for domestic and overseas oil service clients
Long-Term Stable Spare Parts Supply Chain: All eight standard PN models are kept in factory finished goods inventory to support bulk wholesale orders. Flexible sea and air global delivery schedules can be arranged according to client oilfield project construction schedules
Customized Engineering Solution Service: Develop non-standard dimension, special thread and high anti-corrosion alloy flow activated centralizers strictly in accordance with client technical drawings and field downhole working fluid parameters
Q1: What is the biggest advantage of differential pressure retractable design compared with ordinary fixed open bow spring centralizer?
Traditional fixed open centralizer’s bow springs keep contacting casing walls all the time during tubing running and tripping, which leads to severe abrasion, deformation and early failure especially in narrow restricted bore wells. Our flow activated centralizer’s springs fully collapse without circulation pressure, avoiding continuous casing friction and greatly extending tool service life. Springs only expand under cementing circulation pressure to realize tubing centralization, balancing long service life and perfect cementing quality.
Q2: How to adjust the maximum expansion range of bow springs on site quickly?
The maximum expansion outer diameter of bow springs is controlled by internal limit sleeves inside the centralizer body. Field staff only need to disassemble two end positioning lock rings, adjust the axial position of internal limit sleeves and re-lock the rings, finishing size matching adjustment within 10 minutes without replacing spare components or disassembling the whole tool.
Q4: What tubing sizes and connection threads do standard flow activated centralizers support?
The full product line covers four mainstream completion tubing outer diameters:1-11/16",2-1/8",2-7/8",3-1/2", matched with four universal premium connection threads:1"AMMT for small tubing,1-1/2"AMMT for medium tubing,2-3/8"PAC for medium-large tubing, NC26 for large tubing. All thread machining complies with global oil industry unified precision standards, directly matched with mainstream completion tubing, packers and cementing tools without transition subs.
Q5: Can customized non-standard specification and anti-corrosion alloy flow activated centralizers be produced?
Yes, we provide full customized engineering solutions for global oilfield clients. We can manufacture flow activated centralizers with non-standard outer diameter, inner bore, assembly length, special non-standard threads and high anti-corrosion alloy material according to client technical drawings and field downhole working parameters. We can also adjust bow spring quantity, thickness and arc radian to adapt ultra-large casing bore and ultra-deep high-pressure well construction requirements.
We are an integrated OEM & ODM manufacturer specializing in research, forging production and global sales of full-series oilfield completion, cementing and downhole intervention tools. We supply flow activated bow spring centralizers, mechanical bow spring centralizers, mechanical tubing end locators, hydraulic tubing end locators, casing collar locators, packer setting tools and full sets of completion auxiliary accessories for global onshore and offshore oil & gas well casing running, primary cementing and stimulation workover projects. All products adopt standardized forging and CNC precision machining technology, passing multi-round tensile, abrasion and pressure retraction performance factory tests, with stable long-term downhole working performance and superior cost performance ratio. Whether you need standard STD carbon steel or H₂S anti-sulfur flow activated centralizers matching mainstream tubing sizes, integrated tubing string centralizer layout design schemes for large well cementing bidding, or customized non-size high corrosion resistant versions for harsh sour gas restricted bore wells, please contact our professional oilfield engineering team. We will provide targeted centralizer matching solutions, complete detailed technical datasheets and competitive factory bulk wholesale quotations within 24 working hours.
