Product Overview

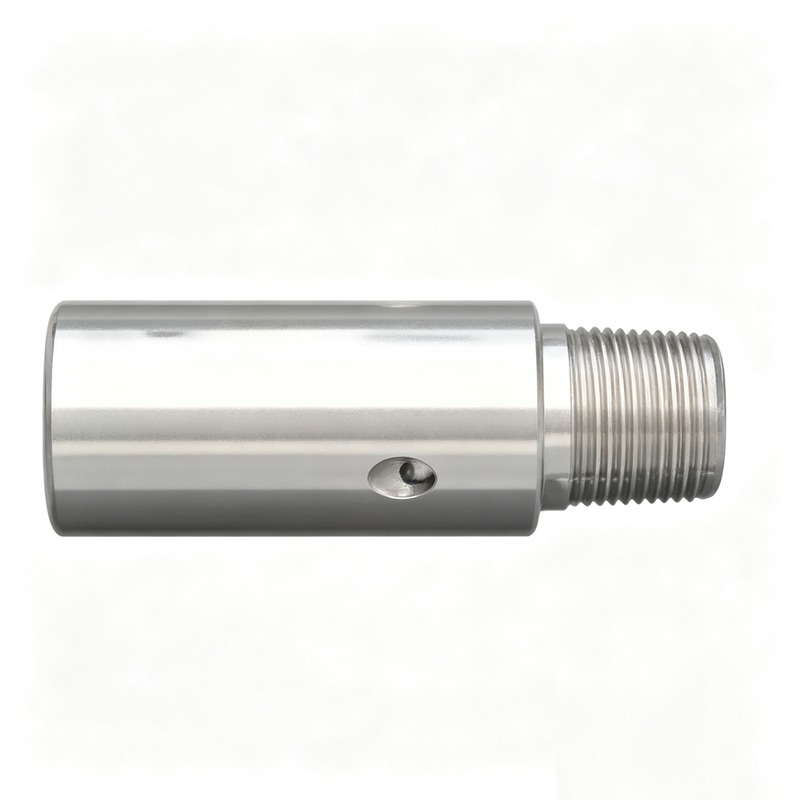

The Bypass Valve coiled tubing PDM motor matched flow divider valve is a special flow distribution control tool developed for coiled tubing downhole drilling motor flow regulation and annulus cuttings transport improvement remedial workover operations.
This bypass valve is specially matched for combined use with positive displacement drilling motors (PDM / screw drilling motors); the valve body can precisely limit and control the effective liquid flow volume passing through the PDM motor, ensuring the drilling motor operates under stable rated flow conditions. All redundant excess circulating fluid that exceeds the motor allowable flow range is diverted into the wellbore annulus through multiple built-in jet nozzles; the increased annulus fluid flow velocity greatly enhances the return fluid carrying capacity for downhole rock cuttings and solid debris, realizing efficient wellbore debris and cuttings removal. Two core adjustable parameters are reserved for users to customize diversion flow volume: the bore hole orifice diameter size of each individual nozzle, and the total number of installed nozzles, which can be freely modified to adapt to different downhole construction circulation flow rate demands.
The Bypass Valve has no complex internal movable friction components, spring energy storage assemblies or differential pressure release mechanisms, with extremely simplified wellsite operation flow and low maintenance cost; construction crews only need to connect the bypass valve above the PDM motor in the coiled tubing tool string, run the whole tool string down along the tubing inner wall to the target downhole drilling construction section, start the surface circulation pump, the bypass valve will automatically split the circulating fluid into two paths: fixed flow through the PDM motor for drilling power generation, surplus flow diverted into the annulus via nozzles to boost cuttings carrying efficiency, no additional auxiliary operation steps such as drop ball delivery or shear pin impact jarring are needed, shortening wellsite operation time and reducing human error risks.
The standardized product lineup covers outer diameter sizes ranging from 1-3/4" to 2-7/8", with complete outer diameter specification series to match different tubing inner diameter constraint conditions and various coiled tubing downhole drilling construction demands. All standard specifications adopt standard working condition configuration; custom outer diameter, nozzle orifice diameter, nozzle total quantity and base material corrosion resistance grade customization are available upon customer technical drawing submission.
Complete Technical Specification Table
| PN Part Number | OD Outer Diameter | ID Inner Bore | Nozzle Configuration | Make-Up Length | Working Condition Grade | Connection Thread |
|---|---|---|---|---|---|---|
| L5171750120 | 1-3/4" | 3/4" | 4 × 0.118" @ 135° | 7.5" | STD Standard | 1" AMMT |
| L5172125120 | 2-1/8" | 1" | 4 × 0.125" @ 135° | 8.2" | STD Standard | 1-1/2" AMMT |
| L5172875120 | 2-7/8" | 1-3/8" | 4 × 0.134" @ 135° | 8.7" | STD Standard | 2-3/8" PAC |
Note: Custom outer diameter, nozzle bore orifice diameter, nozzle total quantity and base material corrosion resistance grade modification PDM motor matched bypass flow divider valves are available via engineering consultation. All standard specifications adopt STD standard working condition configuration; custom H₂S sour service anti-sulfide stress cracking high-corrosion-resistant alloy material grade is optional for high-sulfur corrosive downhole wellbore fluid environment construction conditions. The standard nozzle layout adopts 4 pieces of jet nozzles with 135° injection angle, and the single nozzle hole diameter can be customized according to required bypass diversion flow volume; multiple standard connection thread specifications (AMMT / PAC) are matching options for each specification to adapt to different coiled tubing tool string connection matching demands.
Core Features & Advantages
PDM Positive Displacement Drilling Motor Matched Combined Use Design: The bypass valve is specially designed for matched combined use with positive displacement drilling motors (PDM / screw drilling motors); the valve body can precisely limit and control the effective liquid flow volume passing through the PDM motor, ensuring the drilling motor operates under stable rated flow conditions to maintain constant torque output performance.
Dual Adjustable Nozzle Parameter Customization Design: Two core adjustable parameters are reserved for users to customize diversion flow volume: the bore hole orifice diameter size of each individual nozzle, and the total number of installed nozzles, which can be freely modified to adapt to different downhole construction circulation flow rate demands, realizing flexible adjustment of bypass diversion flow volume.
Surplus Fluid Annulus Diversion & Annulus Flow Velocity Boost Design: All redundant excess circulating fluid that exceeds the motor allowable flow range is diverted into the wellbore annulus through multiple built-in jet nozzles; the increased annulus fluid flow velocity greatly enhances the return fluid carrying capacity for downhole rock cuttings and solid debris, realizing efficient wellbore debris and cuttings removal.
Full Outer Diameter Size Range Coverage: The applicable outer diameter size range of the PDM motor matched bypass flow divider valve covers 1-3/4" to 2-7/8", with complete outer diameter specification series to match different tubing inner diameter constraint conditions and various coiled tubing downhole drilling construction demands.
Ultra-Simplified Wellsite Operation Logic: The bypass valve has no complex internal movable friction components, spring energy storage assemblies or differential pressure release mechanisms, the operation flow is highly streamlined: only need to connect the bypass valve above the PDM motor in the coiled tubing tool string, run the whole tool string down along the tubing inner wall to the target downhole drilling construction section, start the surface circulation pump, the bypass valve will automatically split the circulating fluid into two paths: fixed flow through the PDM motor for drilling power generation, surplus flow diverted into the annulus via nozzles to boost cuttings carrying efficiency, no complex auxiliary operation steps such as drop ball delivery or shear pin impact jarring are needed to shorten wellsite operation time and reduce human error risks.
Low Routine Maintenance Design: The integral cylindrical alloy steel tool body eliminates vulnerable split assembly movable wear parts; after each downhole drilling construction operation, only simple surface nozzle orifice debris cleaning and internal flow passage blockage flushing inspection are required, no complex disassembly, internal nozzle component replacement or spring preload adjustment maintenance procedures, greatly reducing daily maintenance labor and spare parts inventory cost.
Application Scenarios
1. Coiled tubing downhole PDM drilling motor flow control and annulus cuttings transport improvement heavy-load intervention treatments, including PDM motor flow rate fixed control and wellbore annulus flow velocity boosting for rock cuttings & solid debris removal remedial workover construction operations
2. Conventional sweet crude oilfield PDM motor matched bypass flow divider valve downhole drilling motor flow regulation and annulus cuttings transport improvement remedial workover service (STD Standard carbon steel working condition grade)
3. High-sulfur H₂S containing corrosive downhole wellbore fluid construction project PDM motor flow control and annulus cuttings transport improvement heavy workover projects requiring H₂S sour service anti-sulfide stress cracking high-corrosion-resistant alloy material grade
4. Long-term continuous repeated circulating fluid flow division load safety protection for coiled tubing bottom-hole assemblies in onshore and offshore oilfield coiled tubing downhole drilling motor flow control and annulus cuttings transport improvement remedial workover intervention projects
Standard Delivery Package
Complete PDM motor matched bypass flow divider valve integral cylindrical pre-assembled unit including main tool cylinder body, internal fixed flow passage and multiple built-in jet nozzles
Spare interchangeable jet nozzle maintenance kit for on-site worn nozzle hole diameter adjustment or damaged nozzle replacement
Full factory inspection test report including repeated circulating fluid flow division load fatigue resistance test, integral tensile load test, different nozzle specification bypass diversion flow volume calibration test data
Product dimension drawing and official installation & operation instruction manual, with detailed on-site coiled tubing downhole PDM drilling motor flow control and annulus cuttings transport improvement operation guidance, with clear confirmation reminder for nozzle specification selection (single nozzle orifice diameter / total nozzle quantity) according to different downhole construction circulation flow rate demands during order placement
Quality Warranty & After-Sales Service
Warranty Coverage: 12 months after factory shipment or 2000 cumulative circulating fluid flow division load cycles, whichever condition is reached first
Full factory inspection: Each finished PDM motor matched bypass flow divider valve passes integral tensile load test, repeated circulating fluid flow division load fatigue test, different nozzle specification bypass diversion flow volume calibration test before factory delivery
Free professional technical support: Our oilfield downhole tool engineering team provides coiled tubing downhole PDM drilling motor flow control and annulus cuttings transport improvement remedial workover tool string matching, outer diameter & working condition grade (STD / H₂S) selection and nozzle specification (single nozzle orifice diameter / total nozzle quantity) selection consultation free of charge
Long-term spare parts supply: All interchangeable jet nozzle wear accessories are stocked with competitive factory bulk pricing
Custom development service: Support custom outer diameters, customized single nozzle orifice diameter & total nozzle quantity specifications, base material corrosion resistance grade modification, bottom coiled tubing connection thread profiles and special size PDM motor matched bypass flow divider valves based on customer technical drawings
FAQ
Q1: What is the core function of a Bypass Valve PDM Motor Matched Flow Divider Valve?
The Bypass Valve coiled tubing PDM motor matched flow divider valve is a special flow distribution control tool developed for coiled tubing downhole drilling motor flow regulation and annulus cuttings transport improvement remedial workover operations. This bypass valve is specially matched for combined use with positive displacement drilling motors (PDM / screw drilling motors); the valve body can precisely limit and control the effective liquid flow volume passing through the PDM motor, ensuring the drilling motor operates under stable rated flow conditions to maintain constant torque output performance. All redundant excess circulating fluid that exceeds the motor allowable flow range is diverted into the wellbore annulus through multiple built-in jet nozzles; the increased annulus fluid flow velocity greatly enhances the return fluid carrying capacity for downhole rock cuttings and solid debris, realizing efficient wellbore debris and cuttings removal. Two core adjustable parameters are reserved for users to customize diversion flow volume: the bore hole orifice diameter size of each individual nozzle, and the total number of installed nozzles, which can be freely modified to adapt to different downhole construction circulation flow rate demands. The applicable outer diameter size range covers 1-3/4" to 2-7/8". Two independent working condition material grade options are provided: STD standard carbon steel grade for conventional non-corrosive wellbore environments without high-concentration H₂S corrosive medium; H₂S sour service high-corrosion-resistant alloy grade for high-sulfur H₂S containing corrosive downhole wellbore fluid construction conditions. No complex internal movable friction components or spring assemblies are equipped, operation flow is highly simplified, widely applied for coiled tubing downhole PDM drilling motor flow control and annulus cuttings transport improvement remedial workover construction operations.
Q2: What three core structural advantages does this Bypass Valve PDM Motor Matched Flow Divider Valve own?
1. PDM positive displacement drilling motor matched combined use design, the bypass valve is specially designed for matched combined use with positive displacement drilling motors (PDM / screw drilling motors); the valve body can precisely limit and control the effective liquid flow volume passing through the PDM motor, ensuring the drilling motor operates under stable rated flow conditions to maintain constant torque output performance; 2. Dual adjustable nozzle parameter customization design, two core adjustable parameters are reserved for users to customize diversion flow volume: the bore hole orifice diameter size of each individual nozzle, and the total number of installed nozzles, which can be freely modified to adapt to different downhole construction circulation flow rate demands, realizing flexible adjustment of bypass diversion flow volume; 3. Surplus fluid annulus diversion & annulus flow velocity boost design & ultra-simplified wellsite operation logic, all redundant excess circulating fluid that exceeds the motor allowable flow range is diverted into the wellbore annulus through multiple built-in jet nozzles; the increased annulus fluid flow velocity greatly enhances the return fluid carrying capacity for downhole rock cuttings and solid debris, realizing efficient wellbore debris and cuttings removal; the bypass valve has no complex internal movable friction components, spring energy storage assemblies or differential pressure release mechanisms, only need to connect the bypass valve above the PDM motor in the coiled tubing tool string, run the whole tool string down along the tubing inner wall to the target downhole drilling construction section, start the surface circulation pump, the bypass valve will automatically split the circulating fluid into two paths: fixed flow through the PDM motor for drilling power generation, surplus flow diverted into the annulus via nozzles to boost cuttings carrying efficiency, no complex auxiliary operation steps such as drop ball delivery or shear pin impact jarring are needed to shorten wellsite operation time and reduce human error risks; the product also features complete outer diameter size range coverage and integral cylindrical tool body low maintenance design to further expand applicable construction scope and reduce post-operation maintenance workload.
Q3: What outer diameter sizes and configurable options do these Bypass Valve PDM Motor Matched Flow Divider Valves support?
Our standard applicable outer diameter size range covers 1-3/4", 2-1/8", 2-7/8". Each OD size supports two independent nozzle parameter versions for free matching selection: single nozzle orifice diameter customization / total nozzle quantity customization; each model is equipped with multiple standard connection thread specifications (AMMT / PAC) for coiled tubing tool string connection matching. Two independent working condition material grade versions are also optional for each outer diameter size: STD standard carbon steel working condition grade and H₂S sour service high-corrosion-resistant alloy working condition grade. Custom single nozzle orifice diameter & total nozzle quantity specifications and base material corrosion resistance grade specifications are available upon customer downhole wellbore fluid H₂S concentration corrosive environment and different downhole construction circulation flow rate demands.
Q4: What is the standard production lead time for bulk purchase orders?
All standard PN part numbers are kept in factory inventory, goods can be delivered within 7–15 working days. Customized PDM motor matched bypass flow divider valves with special outer diameters or customized single nozzle orifice diameter & total nozzle quantity specifications, base material corrosion resistance grade specifications & bottom coiled tubing connection thread profiles require 20–35 working days production cycle, subject to total order quantity and customization scope.
