Product Overview

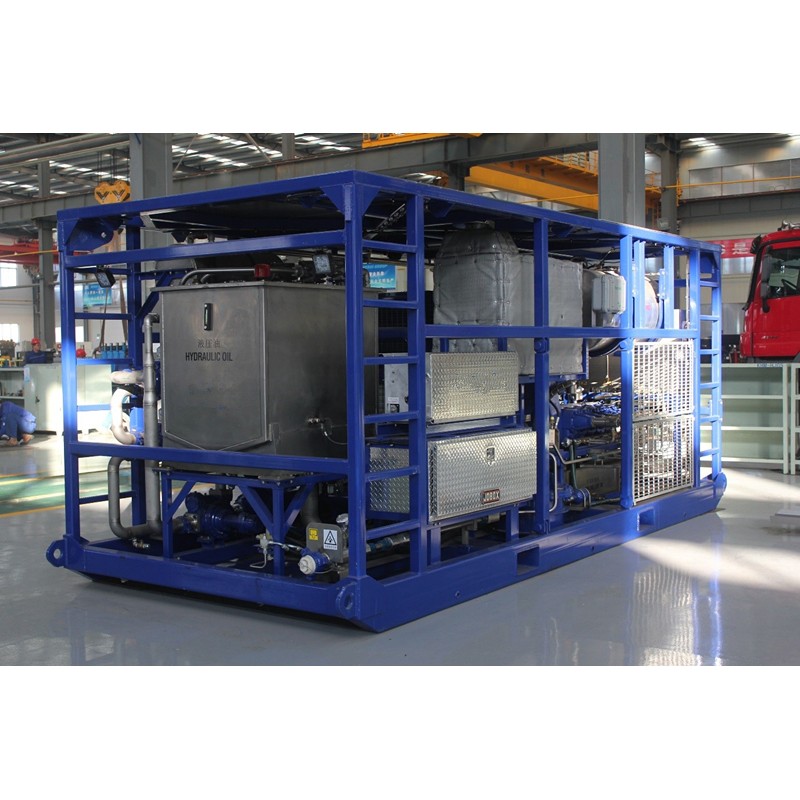

The LNP90K10000PSI is a heavyduty skidmounted liquid nitrogen pump unit designed for onshore oil & gas field operations. It works in conjunction with fracturing spreads and coiled tubing units to perform nitrogen injection, well workover, nitrogen displacement, foam fracturing and other wellservice jobs.
The complete skid integrates USA CS&P triplex highpressure cryogenic reciprocating plunger pump, CS&P centrifugal booster pump, genuine CAT C9.3B 375HP diesel engine, FUNK gear transfer box, exhaust gas wasteheat recovery vaporizer, full stainlesssteel cryogenic piping, MEDCO data acquisition & PLC explosionproof control system. No extra auxiliary burner is required for vaporization, cutting field fuel consumption.
Rated max nitrogen output reaches 90,000 SCFH, minimum adjustable flow 21,000 SCFH at 90% pumping efficiency, maximum working pressure up to 10,000PSI. Discharge nitrogen temperature maintains stable at 15℃21℃ (6070°F). Compact singleskid layout with integral lifting lugs for container or flattruck transportation. Suitable for ambient temperature 0℃ ~ +55℃, working altitude up to 3000 m, capable of dusty mountain and desert oilfield conditions. All instruments adopt international imperialmetric dualunit display, fully compliant with oilfield safety and HSE requirements. Optional 2000gal skidmounted LN₂ storage tank and largecapacity 15000gal bulk liquid nitrogen tank are available as auxiliary packages.
Main Technical Parameters
| Parameter Item | Specification |
|---|---|
| Model | LNP90K10000PSI SkidMounted Liquid Nitrogen Pump Unit |
| Max Nitrogen Displacement | 90,000 SCFH (90% pumping efficiency) |
| Min Adjustable Flow | 21,000 SCFH |
| Rated Working Pressure | 10,000 PSI |
| Outlet Nitrogen Temperature | 15℃ ~ 21℃ (6070°F) |
| Vaporization Type | Engine exhaust wasteheat recovery vaporizer (CS&P) |
| Main Diesel Engine | CAT C9.3B, 375HP, airmotor start, explosionproof 24V 60A alternator |
| Transfer Gear Box | FUNK multioutput gear box |
| Triplex LN₂ Plunger Pump | CS&P 3ICP100, triplex cryogenic reciprocating pumpCylinder bore 1.25", stroke 1.5", 601200RPM, max rod load 12400 lbs |
| Centrifugal Booster Pump | CS&P 1"×2"×4.5" hydraulicdriven cryogenic centrifugal pumpFlow 575gpm, speed 180011500RPM |
| Fuel Tank Capacity | 100 US Gal (380L) |
| Overall Dimension (L×W×H) | 4500 × 2500 × 2500 mm |
| Skid Net Weight | ~6.5 Tons |
| Operating Ambient Temp | 0℃ ~ +55℃ |
| Applicable Altitude | ≤3000 m |
| Control System | Explosionproof PLC cabinet, MEDCO data acquisition, touchscreen HMI |
| Paint Spec | Marinegrade heavyduty anticorrosion coating, custom color available |
| Warranty | 12 months after site acceptance or 18 months post factorydelivery (consumables excluded) |
| Delivery Term | FOB Tianjin Port |
| Optional Matching Tanks | 2000gal skidmounted liquid nitrogen storage tank (0.8 MPa working pressure); 15000gal largecapacity bulk LN₂ storage tank (skidmounted, optional) |
Core Product Advantages
WasteHeat Recovery Vaporization, EnergySaving Operation
Adopts CS&P exhaust wasteheat recovery vaporizer, reuses hightemperature exhaust heat from CAT C9.3B engine to vaporize liquid nitrogen. No separate fuelburning heater required. Output nitrogen temperature stably held between 1521℃, prevents cryogenic pipeline frostcracking and significantly reduces field fuel operating cost.Imported CS&P TwoStage Cryogenic Pumping System
Primary CS&P hydraulic centrifugal booster pump provides stable liquidnitrogen feed pressure for downstream triplex plunger pump. Secondary CS&P 3ICP100 triplex reciprocating pump delivers max 10,000PSI highpressure nitrogen gas. Wide speedadjustment range 601200 RPM, covers smallvolume welltesting up to largescale nitrogen fracturing jobs. Equipped with overpressure & lowtemperature autoshutdown safety interlock protection.CAT C9.3B HeavyDuty Diesel Power Pack
Genuine CAT C9.3B 375HP turbo diesel engine with airmotor starting system, explosionproof electrical system and sparkarrestor silencer. Matched FUNK multioutput gear box distributes independent power to triplex pump, booster pump and auxiliary hydraulic circuits. Watercooled radiator system guarantees stable fullload performance up to +55℃ hightemperature desert conditions.HighGrade Cryogenic & HighPressure Manifold Assembly
All lowtemperature suction & return pipelines use 300series stainless steel. Highpressure manifold adopts FMC 2" FIG1502 union fittings, Parker AE safety relief valves, flexible transition joints for coldend connections. All high/lowpressure discharge outlets are safely oriented; thermal/coldinjury protective guards are fitted on all cryogenic and hot components.ExplosionProof MEDCOPLC Intelligent Control System
Fully stainlesssteel explosionproof control cabinet with touchscreen HMI, MEDCO data acquisition software. Realtime monitoring for engine parameters, booster speed, nitrogen flow, outlet pressure & temperature, pump lubrication status. Supports data recording, curve display, export, and hardwired interlock emergencystop signal communication with coiled tubing unit for joint operation safety. Complete local manual override switches for onsite operation.Integrated HeavyDuty SkidMounted Layout
Whole unit preassembled on heavy steel skid with integral lifting lugs. Compact dimension 4.5×2.5×2.5 m for standard container or flattruck shipping. Prerouted piping & cabling minimize field assembly work. Fullset 24V explosionproof floodlights for roundtheclock nighttime wellsite operations.HarshEnvironment MarineGrade AntiCorrosion Treatment
Sandblasting pretreatment plus marinegrade primer & topcoat painting, customcolor available. Skid structure designed for dusty mountain and plateau oilfield environments. Complete safety guards, warning signs, HSEcompliant layout, easy access for routine inspection and component maintenance.Application Scenarios
- Onshore oil & gas well nitrogen foam fracturing & stimulation treatment
- Well nitrogen displacement, flowback, cleanout and paraffin removal workover
- Matching service for skidmounted / trailertype coiledtubing unit jobs
- Underbalanced drilling nitrogen cushion supply & welltesting operations
- Mountain, plateau and desert scattered wellcluster nitrogeninjection services
- Conventional & unconventional reservoir nitrogenenhanced production operations
Standard Delivery Package
- Complete LNP90K10000PSI liquid nitrogen pump main skid
- CAT C9.3B 375HP diesel engine + FUNK transfer gearbox assembly
- CS&P 3ICP100 triplex cryogenic plunger pump & CS&P centrifugal booster pump
- CS&P wasteheat recovery highpressure nitrogen vaporizer
- Complete stainlesssteel cryogenic piping, FMC highpressure manifold, Parker reliefvalve assembly
- Explosionproof stainlesssteel control cabinet, PLC + MEDCO dataacquisition hardware & software
- 100USGal integrated diesel fuel tank, fullset 24V explosionproof lighting system
- Fullset installation fasteners, special maintenance tools & OEM wearingparts kit
- Full English documentation: operationmaintenance manual, P&ID drawing, layout drawing, component original certificates, factory testreport
- Optional supply：2000gal /15000gal skidmounted liquid nitrogen storage tank (quoted separately)
Warranty & Commercial Terms
- Warranty：12 months after wellsite acceptance or 18 months after factorydelivery (whichever comes first). Consumables such as seals, plungers, filterelements, pump coldend components are excluded.
- Payment：30% T/T prepayment upon PO signing; 70% balance paid before factory shipment inspection.
- Leadtime：Negotiable upon receiving advance payment.
- Customization：Adjust flowrate, working pressure, paintcolor; upgrade remote datatransmission function, adapt to special highaltitude working conditions.
- Global Service：Worldwide remote video troubleshooting; overseas onsite commissioning & operator training available for largevolume orders.
