Product Overview
This high-pressure liquid nitrogen vaporizer is manufactured by Technologies (USA), adopting advanced heat recovery vaporizing principle. It serves as core supporting equipment for liquid nitrogen pump skids, widely used in coiled tubing operations, oil & gas well service, fracturing and cryogenic pressurization jobs.
The unit efficiently absorbs waste heat from the system to vaporize liquid nitrogen, eliminating extra heating energy consumption. Compact vertical cylindrical structure, fully pressure vessel compliant design, suitable for continuous heavy-duty operation under harsh field working conditions.
Key Technical Parameters
| Item | Specification |
|---|---|
| Product Name | Liquid Nitrogen Vaporizer |
| Manufacturer | Technologies (USA) |
| Vaporizing Type | Heat Recovery |
| Rated Working Pressure | 10,000 psi |
| Maximum Vaporizing Capacity | 180,000 SCFH |
| Applicable Medium | Liquid Nitrogen (LNâ‚‚) |
Core Advantages
Heat Recovery Energy-Saving Design
Utilize waste heat from the power system to realize liquid nitrogen vaporization, no external heating source required, effectively cutting fuel and operation costs for field construction.High Pressure Resistance & Reliable Safety
Specially engineered for 10,000 psi rated pressure, strict pressure vessel manufacturing standards. Robust pressure boundary structure prevents leakage under frequent pressure fluctuation in oilfield operations.Large Vaporization Capacity
Max vaporizing capacity reaches 180,000 SCFH, capable of matching large-flow liquid nitrogen pump skids, satisfying high-rate nitrogen injection demand during fracturing and well intervention.Compact Vertical Structure

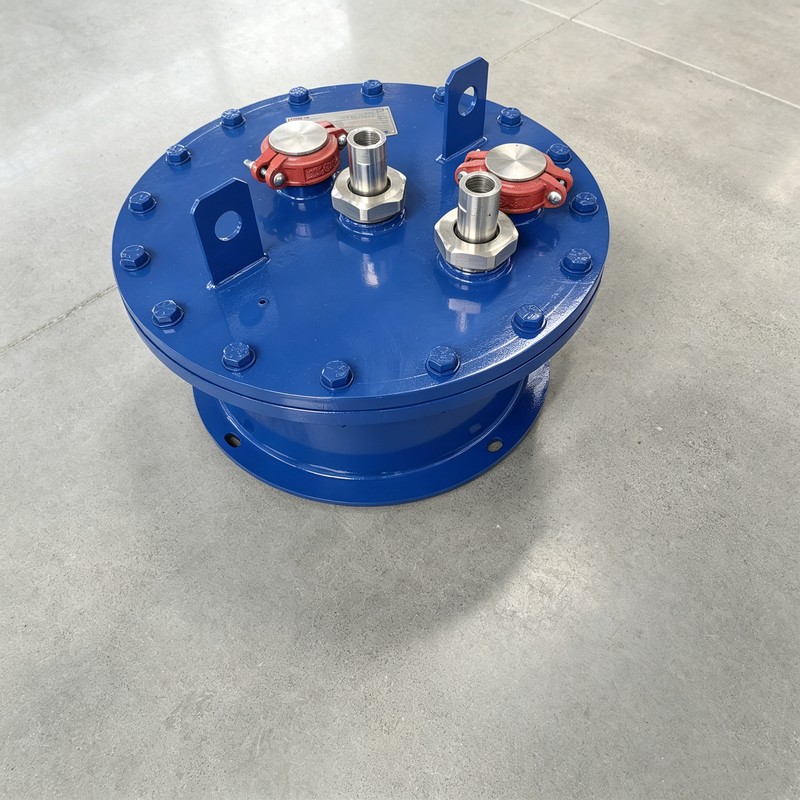

Vertical cylindrical layout with integrated flange top cover, multiple process ports pre-reserved. Easy installation, connection and maintenance, saving footprint on nitrogen pump skid.Optimized Cryogenic Heat Exchange Structure
Internal heat exchange components improve heat transfer efficiency, avoid incomplete vaporization, prevent liquid nitrogen carryover to downstream high-pressure pipeline and process equipment.Field Harsh Environment Adaptability
Anti-corrosion surface coating, stable performance under wide temperature range. Adaptable to outdoor oilfield sites for long-term continuous cyclic operation.Application Scenarios
- Liquid nitrogen pump skid supporting equipment
- Coiled tubing nitrogen lifting & nitrogen injection operations
- Oil & gas well service, well cleanout, pressure testing
- Reservoir fracturing, foam fracturing operations
- Pipeline purging, inert gas pressurization
- Cryogenic high-pressure gas supply system
Standard Configuration
- Vertical vaporizer main body
- Top bolted flange assembly with multiple connection ports
- Nameplate & lifting lugs for skid mounting
- Complete technical drawing, inspection certificate and operation manual
