Product Overview

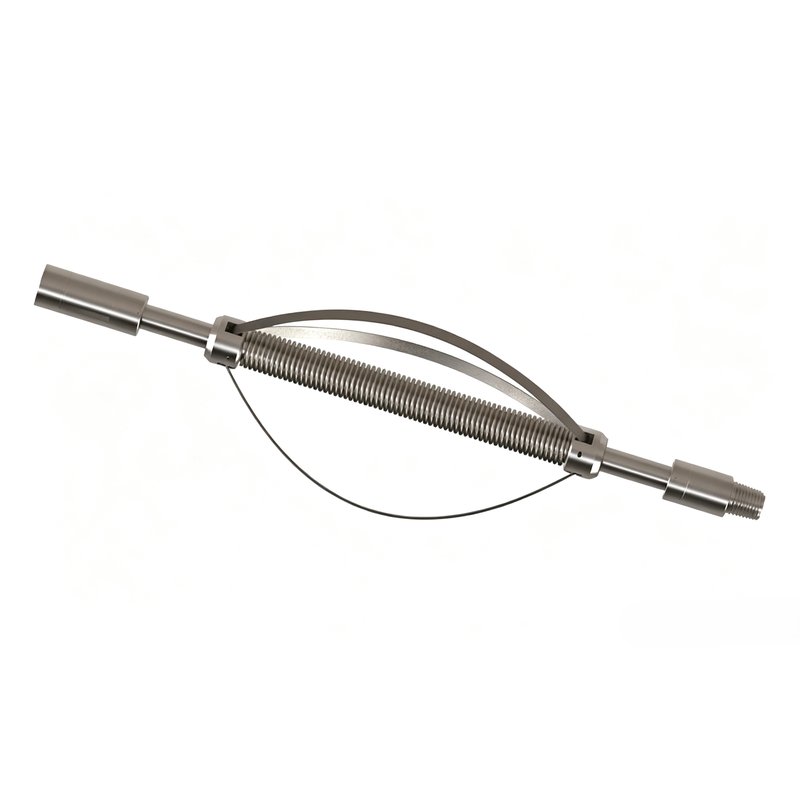

Our bow spring centralizer is a classic flexible centering tool widely applied in casing running, cementing and coiled tubing intervention operations. It consists of a central threaded mandrel, compression spring assembly and multiple curved bow springs. When running downhole inside casing, the bow springs compress to reduce outer diameter for low-friction tripping; after passing through restricted well sections, the elastic bows rebound automatically to hold the tubing/casing string at the center of borehole. The internal helical spring structure provides stable elastic compensation for wellbore diameter variations and minor casing deformation. High-grade alloy steel bows undergo precision heat treatment to maintain consistent elasticity under repeated compression. The threaded mandrel supports connection with various downhole assemblies; anti-corrosion material options comply with NACE standards for H₂S and CO₂ corrosive wells. This centralizer effectively improves cement sheath uniformity during cementing, reduces casing wear caused by wall contact, and protects sensitive downhole tools from eccentric abrasion.
Core Features & Benefits
- Elastic bow design enables diameter shrinkage during tripping, greatly lowering running resistance in narrow casing sections
- Automatic spring rebound delivers reliable centering force across variable wellbore diameters
- Internal compression spring structure absorbs downhole vibration and axial impact to extend service life
- Heat-treated alloy steel bows deliver excellent fatigue resistance for repeated downhole trips
- Standard threaded mandrel fits common casing/tubing connection profiles for quick installation
- Sour-grade material options available for high-corrosion sour well environments
- Lightweight structure reduces additional string weight compared with rigid centralizers
- Wide applicable range for vertical, deviated and horizontal well cementing & workover
- Custom bow quantity, outer diameter, overall length and thread specifications upon request
- Can be installed directly on casing joints without extra mounting fixtures
Technical Specifications
| Model No. | Matched Casing Size | Max OD (Bows Extended) | Min OD (Bows Compressed) | Bow Qty | Standard Thread | Overall Length | Restoring Force | Temp Range | Service Grade |
|---|---|---|---|---|---|---|---|---|---|
| BSC-450 | 4 1/2" Casing | 4.25" | 3.70" | 4 | 2-3/8" PAC | 30" | 380 lbf | 0°F ~ 350°F | Standard |
| BSC-550 | 5 1/2" Casing | 5.20" | 4.60" | 4 | 2-3/8" PAC | 34" | 450 lbf | 0°F ~ 350°F | Standard |
| BSC-700 | 7" Casing | 6.65" | 5.90" | 6 | 3-1/2" IF | 38" | 520 lbf | 0°F ~ 350°F | Standard |
| BSC-450-S | 4 1/2" Casing | 4.25" | 3.70" | 4 | 2-3/8" PAC | 30" | 380 lbf | 0°F ~ 350°F | Sour H₂S |
| BSC-550-S | 5 1/2" Casing | 5.20" | 4.60" | 4 | 2-3/8" PAC | 34" | 450 lbf | 0°F ~ 350°F | Sour H₂S |
Note: Custom bow count, restoring force, thread types and anti-corrosion treatments are available upon request.
Typical Applications
- Oil, gas well casing running and primary cementing operations
- Deviated & horizontal well tubing centering for workover tasks
- Coiled tubing intervention with tool string centering requirements
- Sand control completion, screen pipe installation projects
- Sour well construction with H₂S/CO₂ downhole environment
- Geothermal well casing installation and long-term completion
- Plug & packer running to prevent eccentric wear of sealing assemblies
Advantages Over Rigid Centralizers
- Compressible bow structure allows smooth passage through tight casing hangers and restricted well sections where rigid centralizers get stuck easily
- Elastic compensation adapts to irregular wellbore enlargement and minor casing deformation for consistent centering performance
- Lower running drag reduces hoisting load and risk of casing sticking during deployment
- Flexible bow structure absorbs downhole collision impact to protect casing surface from scratches
- Lighter unit weight cuts total string weight, lowering rig load consumption
- Lower procurement cost for large-volume cementing projects compared with solid rigid centralizers
FAQ
Q: What is the main application scenario for bow spring centralizers?
A: They are most widely used for casing running and cementing. The flexible bows reduce running resistance while keeping casing centered to form uniform cement sheath, which improves cementing quality significantly.
Q: Can bow spring centralizers work in high-temperature sour wells?
A: We provide NACE MR0175 certified sour service models with special alloy bows and mandrels to resist sulfide stress cracking; complete material test certificates can be supplied.
Q: Can I customize the restoring force of the bow springs?
A: Yes, we adjust bow thickness, curvature and internal spring specifications to achieve target restoring force matching your well conditions.
Q: What is your production lead time?
A: Standard models have stock for shipment within 3–7 working days; customized bow spring centralizers take 15–25 working days based on order quantity.
Get Custom Specification Sheet & Ex-Factory Bulk Price
We manufacture a full lineup of downhole centralizing tools with rigorous multi-stage quality inspection and complete certification packages. Share your casing size, well temperature and fluid conditions, our engineering team will send detailed datasheet and competitive quotation within 24 hours.
