Product Overview

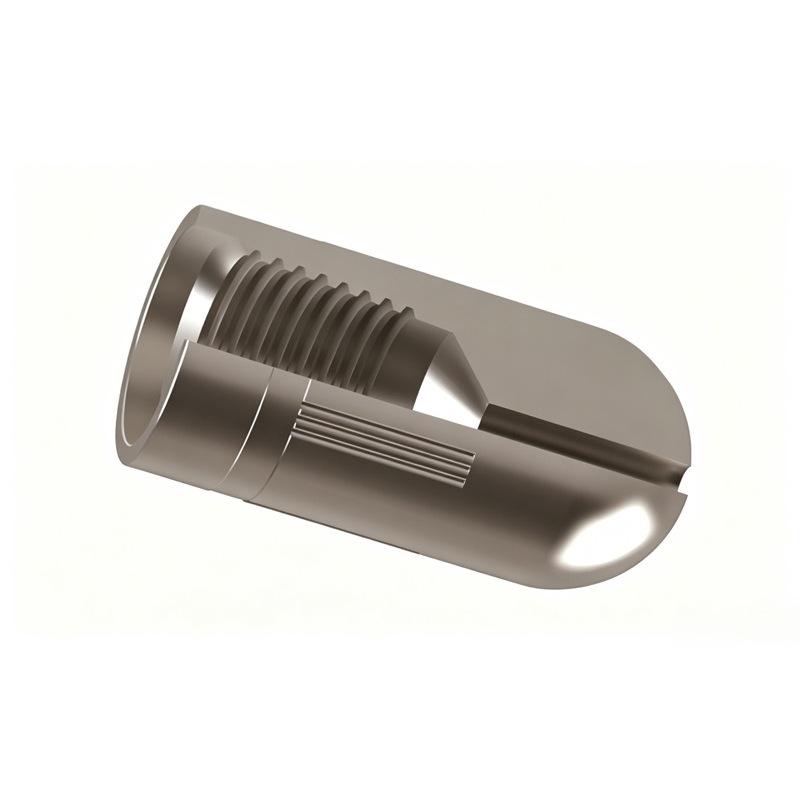

Our fixed spray nozzle is a dedicated stationary jet component engineered for coiled tubing workover, wellbore cleaning, acid jetting and scale removal tasks. Manufactured from high-strength alloy steel via precision CNC machining, it comes with integrated external thread for direct mounting on jetting tools, wash pipes and bottom hole assemblies. The fixed internal flow channel delivers consistent, focused spray patterns without rotational components, eliminating mechanical failure risks caused by moving parts. Hardened flow passage greatly reduces abrasive wear from sand-laden fluid, extending service life during prolonged washing operations. The streamlined outer profile lowers flow resistance while tripping inside casing; customizable orifice diameter and thread specifications allow seamless integration with various downhole tool setups.
Core Features & Benefits
- Stationary fixed structure with no moving parts, extremely low failure rate
- Precision machined internal flow channel provides stable, repeatable spray performance
- Built-in standard threaded end enables fast direct installation onto tool strings
- Hardened alloy flow path delivers excellent abrasion resistance against sandy well fluid
- Smooth rounded outer profile reduces friction and snag risk while running inside casing
- Wide selection of orifice sizes to match different flow rate and pressure requirements
- Anti-corrosion treatment and sour-grade material options for corrosive well applications
- Compact structure minimizes overall assembly length of bottom hole tools
- Custom thread, orifice size and outer dimension available for special project demands
Technical Specifications
| Model No. | Orifice Diameter | Connection Thread | Overall Length | Max Working Pressure | Material Grade | Temp Range | Spray Pattern |
|---|---|---|---|---|---|---|---|
| FN-08 | 0.08" | 1" AMMT | 2.20" | 10,000 PSI | 4140 Alloy Steel | 0°F ~ 350°F | Concentrated Jet |
| FN-12 | 0.12" | 1" AMMT | 2.50" | 10,000 PSI | 4140 Alloy Steel | 0°F ~ 350°F | Concentrated Jet |
| FN-16 | 0.16" | 1 1/2" AMMT | 2.80" | 8,000 PSI | 4140 Alloy Steel | 0°F ~ 350°F | Fan Spray |
| FN-20 | 0.20" | 1 1/2" AMMT | 3.00" | 8,000 PSI | 4140 Alloy Steel | 0°F ~ 350°F | Fan Spray |
| FN-24 | 0.24" | 2 3/8" PAC | 3.50" | 6,000 PSI | 4140 Alloy Steel | 0°F ~ 350°F | Full Cone |
Typical Applications
- Coiled tubing sand washing and wellbore debris removal
- High-pressure jet scale removal inside production casing
- Chemical acid jetting for formation stimulation
- Post-fracturing well cleanup operations
- Sour well jet cleaning with corrosive working fluid
- Water injection pipeline internal cleaning
- Plug seat washing before bridge plug retrieval
Advantages Over Conventional Nozzles
- Fixed structure with zero moving parts eliminates mechanical failure risks
- Hardened alloy flow path provides superior abrasion resistance against sand-laden fluids
- Precision machined orifice delivers consistent, repeatable spray patterns
- Compact one-piece design minimizes BHA assembly length
- Fast threaded installation without special tools required
- Reusable after routine inspection, reducing long-term operational cost
