Product Overview

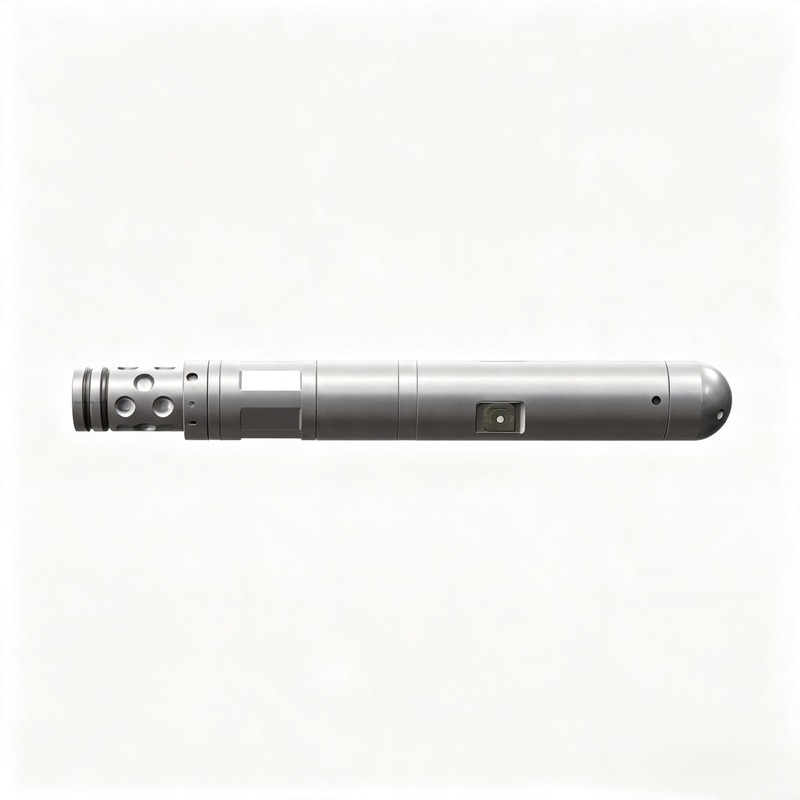

The Integrated Jetting Sub all-in-one integrated coiled tubing sand jet perforating tool is a multi-function downhole sand blasting perforation construction tool that integrates coiled tubing upper connecting joint and sand jet perforation nozzle assembly into a single unit.
This integrated jetting sub is installed at the bottom end of the coiled tubing string before running the coiled tubing into the predetermined target underground well depth; the tool is specially designed for through-tubing sand blasting perforation construction work, high-pressure sand carrying fluid is pumped from surface through coiled tubing and ejected from the built-in jet nozzles to complete target formation sand jet perforation operation. Multiple independent reverse circulation flow channels are pre-machined inside the main body of the jetting sub, forming complete wellbore return fluid circulation passage during the whole sand jet perforation construction process, realizing effective downhole fluid reverse circulation and well cleaning after perforation. The jet nozzles adopt hard tungsten carbide material with outstanding anti-abrasion and anti-sand-erosion performance, the maximum allowable sand carrying fluid throughput of a single nozzle exceeds 60 cubic meters, which can meet high-volume large-displacement sand jet perforation construction requirements. The outer diameter of the entire integrated jetting sub tool body is completely consistent with the outer diameter of the matched coiled tubing, there is no protruding oversized outer diameter section, effectively eliminate downhole sticking, fishing and other construction safety risks during tripping in and tripping out operations. Two optional internal sealing actuation structural designs are provided for user free selection: ball drop actuated type and blank sealing plug type; two standard coiled tubing connection joint forms are available for matching selection: Roll-On thread connector and Dimple On joint connector. Four standard matching coiled tubing outer diameter sizes are supported: 1-1/2 inch, 1-3/4 inch, 2 inch and 2-3/8 inch, each CT OD corresponds to fixed overall make-up length dimension and dedicated standard connection thread specification, all models adopt STD standard working condition configuration.
The Integrated Jetting Sub has no complex internal movable friction components, spring energy storage assemblies or differential pressure release mechanisms, with extremely simplified wellsite operation flow and low maintenance cost; construction crews only need to connect the integrated jetting sub to the bottom end of the coiled tubing string via selected Roll-On or Dimple On connector, run the whole tool string down along the tubing inner wall to the predetermined target underground well depth, pump high-pressure sand carrying fluid from surface through coiled tubing to eject from tungsten carbide nozzles and complete sand jet perforation operation, the built-in internal reverse circulation flow ports continuously provide full wellbore return fluid passage during the whole construction process to realize well cleaning circulation; after the perforation construction work is fully completed, lift the coiled tubing string together with the integrated jetting sub out of the wellbore to finish operation, no additional complex auxiliary operation steps such as separate ball dropping or plug setting are needed, shortening wellsite operation time and reducing human error risks.
The standardized product lineup covers four standard matching coiled tubing outer diameter sizes of 1-1/2", 1-3/4", 2" and 2-3/8", each CT OD corresponds to fixed overall make-up length dimension and dedicated standard connection thread specification, all models adopt STD standard working condition configuration; custom tungsten carbide nozzle sand throughput capacity, matching coiled tubing outer diameter size and internal reverse circulation flow port layout customization are available upon customer technical drawing submission.
Complete Technical Specification Table
| PN Part Number | Matching Coiled Tubing Outer Diameter (CT OD) | Inner Bore ID | Overall Make-Up Length | Working Condition Grade | Dedicated Standard Connection Thread |
|---|---|---|---|---|---|
| L5261500120 | 1-1/2" | 0.5" | 10.50" | STD Standard | 1" AMMT Roll-On Connector |
| L5261750120 | 1-3/4" | 0.67" | 11.06" | STD Standard | 1" AMMT Roll-On Connector |
| L5262000120 | 2" | 0.8" | 17.10" | STD Standard | 1 1/2" AMMT Roll-On Connector |
| L5262375120 | 2-3/8" | 1" | 18.05" | STD Standard | 2 3/8" PAC Dimple On Joint |
Note: Custom tungsten carbide nozzle sand throughput capacity specifications, matching coiled tubing outer diameter sizes and internal reverse circulation flow port layout modifications are available via engineering consultation. All standard specifications adopt STD standard working condition configuration; four standard matching coiled tubing outer diameter sizes are provided: 1-1/2", 1-3/4", 2", 2-3/8", each CT OD corresponds to fixed overall make-up length dimension and dedicated standard connection thread specification.
Core Features & Advantages
All-In-One Integrated Structural Design: The tool integrates two core functional components — coiled tubing upper connection joint and sand jet perforation nozzle assembly — into a single integral unit, eliminating separate assembly and connection steps of two independent tools on-site, simplifying wellsite tool string preparation operation flow and reducing on-site assembly failure risks.
Hard Tungsten Carbide High Erosion Resistant Jet Nozzle Design: The jet ejection nozzles are manufactured from hard tungsten carbide alloy material, with outstanding anti-abrasion and anti-sand-erosion performance; the maximum allowable sand carrying fluid throughput of a single nozzle exceeds 60 cubic meters, which can stably meet high-volume large-displacement high-flow sand jet perforation construction long-term operation requirements.
Equal Outer Diameter Tool Body Safety Design: The outer diameter of the entire integrated jetting sub tool body is completely identical to the outer diameter of the matched coiled tubing, there is no protruding oversized outer diameter section, effectively eliminate downhole sticking, fishing and other construction safety risks during tripping in and tripping out operations, lower well operation hazard level.
Built-In Independent Internal Reverse Circulation Flow Port Design: Multiple independent reverse circulation flow channels are pre-machined inside the main body of the jetting sub, forming complete wellbore return fluid circulation passage during the whole sand jet perforation construction process, realizing effective downhole fluid reverse circulation and well cleaning function after perforation construction.
Dual Optional Internal Sealing Actuation Structural Types: Two different internal sealing actuation structural designs are provided for user free selection according to on-site construction operation requirements: ball drop actuated type and blank sealing plug type, adapting to different well construction process schemes.
Dual Standard Coiled tubing Connection Joint Form Choices: Two mainstream coiled tubing connection joint designs are available for matching selection: Roll-On thread connector and Dimple On joint connector, compatible with mainstream coiled tubing end connection specification standards on the market.
Ultra-Simplified Wellsite Operation Logic: The integrated jetting sub has no complex internal movable friction components or spring energy storage assemblies, the operation flow is highly streamlined: connect the integrated jetting sub to coiled tubing bottom via selected Roll-On or Dimple On connector, run the tool string down to the predetermined target underground well depth, pump high-pressure sand carrying fluid from surface through coiled tubing to eject from tungsten carbide nozzles and complete sand jet perforation operation, the built-in internal reverse circulation flow ports continuously provide full wellbore return fluid passage during the whole construction process to realize well cleaning circulation; after the perforation construction work is fully completed, lift the coiled tubing string together with the integrated jetting sub out of the wellbore to finish operation, no additional complex auxiliary operation steps such as separate ball dropping or plug setting are needed to shorten wellsite operation time and reduce human error risks.
Low Routine Maintenance Design: The integral cylindrical alloy steel tool body eliminates vulnerable split assembly movable wear parts; after each wellhead coiled tubing sand jet perforation construction operation, only simple surface circulating fluid debris cleaning and tungsten carbide nozzle inner wall erosion wear inspection are required, no complex disassembly, internal nozzle component replacement or spring preload adjustment maintenance procedures, greatly reducing daily maintenance labor and spare parts inventory cost.
Application Scenarios
1. Coiled tubing through-tubing sand jet perforation construction multi-function heavy-load intervention treatments, including downhole high-pressure sand carrying fluid jet perforation and post-perforation wellbore reverse circulation cleaning operations
2. Conventional sweet crude oilfield STD standard all-in-one integrated jetting sub coiled tubing through-tubing sand jet perforation remedial workover service (STD Standard carbon steel working condition grade)
3. High-sulfur H₂S containing corrosive downhole wellbore fluid construction project coiled tubing through-tubing sand jet perforation multi-function heavy workover projects requiring H₂S sour service anti-sulfide stress corrosion alloy material grade
4. Long-term continuous tungsten carbide nozzle high-flow sand erosion load safety protection for downhole coiled tubing sand jet perforation tool string assemblies in onshore and offshore oilfield coiled tubing remedial workover intervention projects
Standard Delivery Package
Complete all-in-one integrated coiled tubing sand jet perforating jetting sub integral cylindrical pre-assembled unit including main tool body, built-in internal reverse circulation flow port passages, hard tungsten carbide high erosion resistant jet nozzles and integrated upper coiled tubing connection joint
Spare interchangeable tungsten carbide jet nozzle maintenance kit for on-site worn nozzle erosion wear replacement
Full factory inspection test report including repeated high-flow sand fluid erosion load fatigue resistance test, integral tensile load test, reverse circulation flow port fluid circulation performance calibration test data
Product dimension drawing and official installation & operation instruction manual, with detailed on-site coiled tubing through-tubing sand jet perforation construction operation guidance, with clear confirmation reminder for internal sealing structural type and connection joint form selection according to different downhole construction operation scheme demands during order placement
Quality Warranty & After-Sales Service
Warranty Coverage: 12 months after factory shipment or 2000 cumulative high-flow sand fluid erosion load cycles, whichever condition is reached first
Full factory inspection: Each finished all-in-one integrated coiled tubing sand jet perforating jetting sub passes integral tensile load test, repeated high-flow sand fluid erosion load fatigue test, reverse circulation flow port fluid circulation performance calibration test before factory delivery
Free professional technical support: Our oilfield downhole tool engineering team provides coiled tubing through-tubing sand jet perforation remedial workover tool string matching, matching coiled tubing outer diameter size, internal sealing structural type and connection joint form selection consultation free of charge
Long-term spare parts supply: All interchangeable tungsten carbide jet nozzle wear maintenance accessories are stocked with competitive factory bulk pricing
Custom development service: Support custom tungsten carbide nozzle sand throughput capacity specifications, customized matching coiled tubing outer diameter sizes, internal reverse circulation flow port layout adjustment, base material corrosion resistance grade modification and special size all-in-one integrated coiled tubing sand jet perforating jetting subs based on customer technical drawings
FAQ
Q1: What is the core function of an Integrated Jetting Sub All-In-One Coiled Tubing Sand Jet Perforating Tool With Built-In Reverse Circulation Ports?
The Integrated Jetting Sub all-in-one integrated coiled tubing sand jet perforating tool is a multi-function downhole sand blasting perforation construction tool that integrates coiled tubing upper connecting joint and sand jet perforation nozzle assembly into a single unit. This integrated jetting sub is installed at the bottom end of the coiled tubing string before running the coiled tubing into the predetermined target underground well depth; the tool is specially designed for through-tubing sand blasting perforation construction work, high-pressure sand carrying fluid is pumped from surface through coiled tubing and ejected from the built-in jet nozzles to complete target formation sand jet perforation operation. Multiple independent reverse circulation flow channels are pre-machined inside the main body of the jetting sub, forming complete wellbore return fluid circulation passage during the whole sand jet perforation construction process, realizing effective downhole fluid reverse circulation and well cleaning after perforation. The jet nozzles adopt hard tungsten carbide material with outstanding anti-abrasion and anti-sand-erosion performance, the maximum allowable sand carrying fluid throughput of a single nozzle exceeds 60 cubic meters, which can meet high-volume large-displacement sand jet perforation construction requirements. The outer diameter of the entire integrated jetting sub tool body is completely consistent with the outer diameter of the matched coiled tubing, there is no protruding oversized outer diameter section, effectively eliminate downhole sticking, fishing and other construction safety risks during tripping in and tripping out operations. Two optional internal sealing actuation structural designs are provided for user free selection: ball drop actuated type and blank sealing plug type; two standard coiled tubing connection joint forms are available for matching selection: Roll-On thread connector and Dimple On joint connector. Four standard matching coiled tubing outer diameter sizes are supported: 1-1/2 inch, 1-3/4 inch, 2 inch and 2-3/8 inch, each CT OD corresponds to fixed overall make-up length dimension and dedicated standard connection thread specification, all models adopt STD standard working condition configuration. No complex internal movable friction components or spring assemblies are equipped, operation flow is highly simplified, widely applied for coiled tubing through-tubing sand jet perforation construction multi-function heavy-load intervention treatments, including downhole high-pressure sand carrying fluid jet perforation and post-perforation wellbore reverse circulation cleaning operations.
Q2: What three core structural advantages does this Integrated Jetting Sub All-In-One Coiled Tubing Sand Jet Perforating Tool With Built-In Reverse Circulation Ports own?
1. All-in-one integrated structural design, the tool integrates two core functional components — coiled tubing upper connection joint and sand jet perforation nozzle assembly — into a single integral unit, eliminating separate assembly and connection steps of two independent tools on-site, simplifying wellsite tool string preparation operation flow and reducing on-site assembly failure risks; 2. Hard tungsten carbide high erosion resistant jet nozzle design, the jet ejection nozzles are manufactured from hard tungsten carbide alloy material, with outstanding anti-abrasion and anti-sand-erosion performance; the maximum allowable sand carrying fluid throughput of a single nozzle exceeds 60 cubic meters, which can stably meet high-volume large-displacement high-flow sand jet perforation construction long-term operation requirements; 3. Equal outer diameter tool body safety design & built-in independent internal reverse circulation flow port design & dual optional structural/connector forms ultra-simplified wellsite operation logic, the outer diameter of the entire integrated jetting sub tool body is completely identical to the outer diameter of the matched coiled tubing, there is no protruding oversized outer diameter section, effectively eliminate downhole sticking, fishing and other construction safety risks during tripping in and tripping out operations, lower well operation hazard level; multiple independent reverse circulation flow channels are pre-machined inside the main body of the jetting sub, forming complete wellbore return fluid circulation passage during the whole sand jet perforation construction process, realizing effective downhole fluid reverse circulation and well cleaning function after perforation construction; two different internal sealing actuation structural designs and two mainstream coiled tubing connection joint designs are provided for user free selection according to on-site construction operation requirements, adapting to different well construction process schemes; the integrated jetting sub has no complex internal movable friction components or spring energy storage assemblies, only need to connect the integrated jetting sub to coiled tubing bottom via selected Roll-On or Dimple On connector, run the tool string down to the predetermined target underground well depth, pump high-pressure sand carrying fluid from surface through coiled tubing to eject from tungsten carbide nozzles and complete sand jet perforation operation, the built-in internal reverse circulation flow ports continuously provide full wellbore return fluid passage during the whole construction process to realize well cleaning circulation; after the perforation construction work is fully completed, lift the coiled tubing string together with the integrated jetting sub out of the wellbore to finish operation, no additional complex auxiliary operation steps such as separate ball dropping or plug setting are needed to shorten wellsite operation time and reduce human error risks; the product also features dual optional internal sealing structural types and dual standard connector form selection to further expand applicable construction scope and reduce on-site operation workload.
Q3: What matching coiled tubing outer diameter sizes and configurable options do these Integrated Jetting Sub All-In-One Coiled Tubing Sand Jet Perforating Tool With Built-In Reverse Circulation Ports support?
Our standard applicable matching coiled tubing outer diameter size range covers 1-1/2", 1-3/4", 2", 2-3/8". Each CT OD size supports three independent configurable options for free matching selection: tungsten carbide nozzle sand throughput capacity specification, internal sealing actuation structural type (ball actuated / blank plug), coiled tubing connection joint form (Roll-On / Dimple On). All models support custom base material corrosion resistance grade specifications upon customer request. Four standard matching coiled tubing outer diameter sizes correspond to fixed overall make-up length dimensions and dedicated standard connection thread specifications respectively. Two independent working condition material grade versions are also optional for each CT OD size: STD standard carbon steel working condition grade and H₂S sour service high-corrosion-resistant alloy working condition grade. Custom tungsten carbide nozzle sand throughput capacity specifications, internal reverse circulation flow port layout adjustments and internal sealing structural type modifications are available upon customer downhole wellbore fluid H₂S concentration corrosive environment construction demands.
Q4: What is the standard production lead time for bulk purchase orders?
All standard PN part numbers are kept in factory inventory, goods can be delivered within 7–15 working days. Customized all-in-one integrated coiled tubing sand jet perforating jetting subs with special matching coiled tubing outer diameter sizes or customized tungsten carbide nozzle sand throughput capacity specifications, internal reverse circulation flow port layout adjustments, internal sealing structural type modifications, base material corrosion resistance grade modifications require 20–35 working days production cycle, subject to total order quantity and customization scope.
