Product Overview

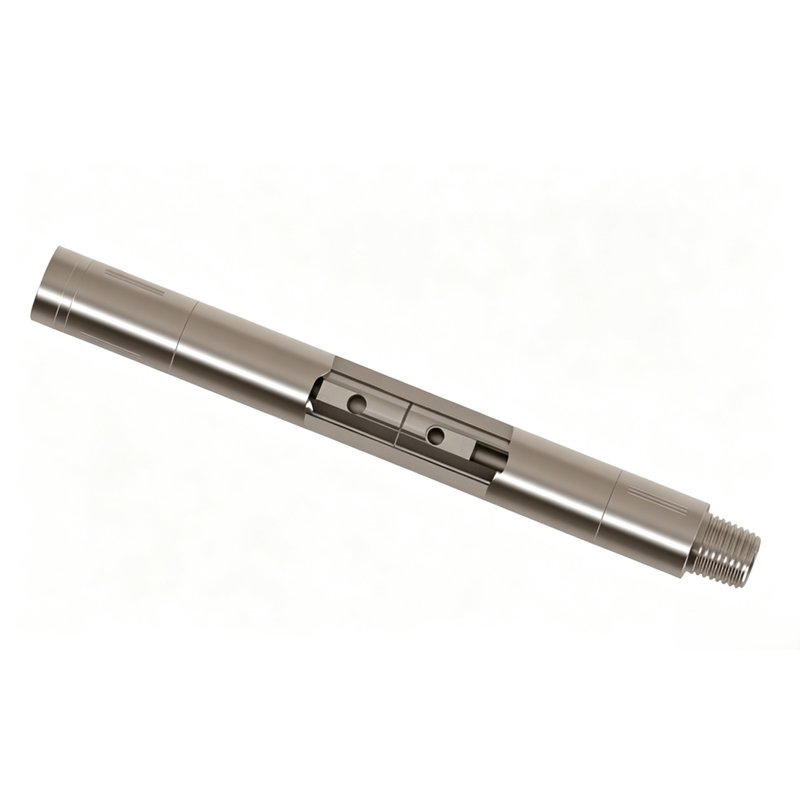

Our all-metal hydraulic oscillator is a flow-activated downhole vibration tool engineered for harsh high-temperature, abrasive well environments. Unlike conventional oscillators that adopt rubber seals or elastomer parts, all load-bearing and motion components are constructed from precision machined alloy steel. When pumped fluid flows through internal metallic valve assemblies, periodic pressure fluctuations drive axial reciprocating motion of the tool body; vibration propagates along the entire tubing string to convert static friction between tubing and casing into low-resistance dynamic friction, greatly lowering hoisting tension and improving reach of horizontal coiled tubing operations.
The monolithic metal structure eliminates elastomer aging, extrusion and chemical swelling failures caused by high temperature, oil-based fluids or corrosive media. Hardened flow components withstand erosion from sand-laden fluid. Full metal material options that comply with NACE MR0175 standards are offered for H₂S/CO₂ sour wells. It is widely used for plug milling, deep horizontal washing, high-temperature thermal well intervention and other demanding projects where rubber-containing tools cannot sustain long operating cycles.
Core Features & Benefits
- Fully metallic internal structure, zero vulnerable rubber/elastomer consumable parts
- Outstanding high-temperature adaptability, works reliably under extreme downhole thermal conditions
- Strong erosion resistance against sandy, gritty circulating fluid for extended runtime
- Flow-driven vibration principle, no extra surface control equipment required
- Effective friction reduction for coiled tubing to extend horizontal operational reach and lower stuck risk
- Hardened alloy moving parts deliver long fatigue life under continuous reciprocation
- Sour-grade alloy material available for corrosive hydrogen sulfide well environments
- Standard thread interfaces for direct integration with common bottom hole assemblies
- Smooth outer housing reduces casing abrasion during tripping in and out
- Custom vibration amplitude, frequency and thread specifications for unique well parameters
Technical Specifications
| Model No. | Fit CT Size | Tool OD | Min Internal Bore | Standard Thread | Overall Length | Max Tensile Load | Max Torque | Temperature Range | Service Grade |
|---|---|---|---|---|---|---|---|---|---|
| ISC-100 | 1.00" | 1.25" | 0.42" | 3/4" AMMT | 9.0" | 40,000 lbs | 760 ft-lbs | 0°F ~ 350°F | Standard |
| ISC-150 | 1.50" | 1.875" | 0.70" | 1-1/2" AMMT | 9.8" | 63,000 lbs | 1220 ft-lbs | 0°F ~ 350°F | Standard |
| ISC-175 | 1.75" | 2.10" | 0.90" | 1-1/2" AMMT | 10.3" | 69,000 lbs | 1360 ft-lbs | 0°F ~ 350°F | Standard |
| ISC-150-S | 1.50" | 1.875" | 0.70" | 1-1/2" AMMT | 9.8" | 63,000 lbs | 1220 ft-lbs | 0°F ~ 350°F | Sour H2S |
| ISC-175-S | 1.75" | 2.10" | 0.90" | 1-1/2" AMMT | 10.3" | 69,000 lbs | 1360 ft-lbs | 0°F ~ 350°F | Sour H2S |
Note: Custom gripping range, outer diameter, thread types and sour treatment are available upon request.
Typical Applications
- Slimhole coiled tubing workover with strict tool outer diameter constraints
- Plug milling, bridge plug retrieval inside narrow casing and tubing
- Horizontal well intervention through constricted casing sections
- Sand washing and jet cleaning in small diameter production strings
- Sour well coiled tubing operations with corrosive formation fluid
- Logging tool string connection requiring compact outer dimension
- Selective zone stimulation with limited internal casing clearance
Advantages Over External Slip Connectors
- Near-tubing outer diameter greatly improves passability in restricted wellbores where external slip connectors get stuck easily
- Internal clamping avoids outer wall indentation damage, preserving tubing structural integrity for repeated reuse
- Reduced outer exposed area minimizes abrasive wear from sand-laden flow
- More compact assembly shortens total length of bottom hole assembly
- Lower friction during tripping reduces pulling load and tubing fatigue
- Suitable for operations running through packers, seating cups and other narrow internal components
FAQ
Q: Which tubing wall thickness ranges work with this internal slip connector?
A: Provide your coiled tubing outer diameter and wall thickness, our engineering team will verify compatibility and recommend proper model.
Q: Can internal slip connectors be manufactured for sour well service?
A: Yes, we supply NACE MR0175 certified sour versions with full material test certificates for export clearance.
Q: Can thread connections be customized to match existing downhole tools?
A: We support AMMT, PAC, REG and other custom thread profiles to fit your tool string configuration.
Q: What is your production lead time?
A: Standard in-stock models ship within 3-7 working days; customized internal slip connectors take 15-25 working days based on order quantity.
Get Custom Specification Sheet & Ex-Factory Bulk Price
We manufacture a complete lineup of coiled tubing connectors and downhole tools with rigorous quality control and full certification documentation. Share your tubing dimensions and well operating conditions, our engineering team will send detailed datasheet and tailored quotation within 24 hours.
