Product Overview

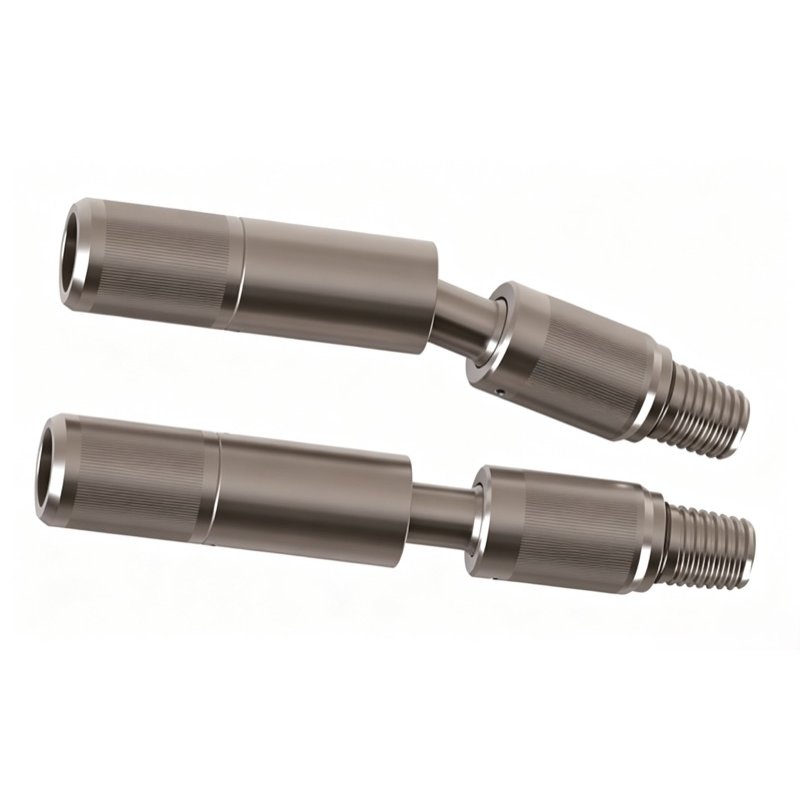

Our downhole universal joint is a pivotal flexible connection component installed within bottom hole assemblies for coiled tubing, workover and fishing operations. Its internal articulated hinge structure allows free angular deflection between upper and lower tool segments, adapting to well curvature in deviated, horizontal and dogleg sections. It absorbs bending stress generated when rigid string components pass through localized wellbore tortuosity, effectively preventing connection fatigue failure and premature downhole tool damage. Manufactured from high-strength forged alloy steel with precision heat treatment, the universal joint delivers excellent tensile, compressive and torsional load capacity while maintaining reliable angular articulation under extreme downhole loads. Dual pressure-balanced seal design keeps wellbore fluids away from internal hinge bearing surfaces, extending service life in hostile downhole environments. Standard thread connections at both ends ensure direct integration with common coiled tubing connectors, jars, accelerators and other BHA components without adapters. Sour-grade material options compliant with NACE MR0175 / ISO 15156 standards support H₂S and CO₂ corrosive well applications.
Core Features & Benefits
- High-capacity forged alloy steel construction with heat-treated hinge components
- Accommodates up to 10° angular deflection per joint to reduce bending stress
- Dual pressure-balanced seal system protects internal bearings from wellbore fluids
- High tensile and torsional strength ratings match standard BHA component capacities
- Standard API thread connections at both ends for direct BHA integration
- NACE MR0175 / ISO 15156 compliant sour service material options
- Smooth hinge rotation prevents torque lock in high-curvature well sections
- Field-proven design for deviated, extended-reach and horizontal well profiles
- Available in multiple sizes with custom thread and deflection range options
Technical Specifications
| Model | Tool OD | Connection | Angular Deflection | Overall Length | Max Tensile Load | Max Torque | Working Pressure | Max Temp |
|---|---|---|---|---|---|---|---|---|
| UJ-150 | 1.687" | 1" AMMT | 10° | 18" | 20,000 lbs | 350 ft-lbs | 5,000 PSI | 350°F |
| UJ-175 | 1.750" | 1" AMMT | 10° | 18" | 25,000 lbs | 420 ft-lbs | 5,000 PSI | 350°F |
| UJ-200 | 2.25" | 1 1/2" AMMT | 10° | 20" | 35,000 lbs | 650 ft-lbs | 5,000 PSI | 350°F |
| UJ-250 | 2.875" | 2 3/8" PAC | 8° | 22" | 50,000 lbs | 1,050 ft-lbs | 5,000 PSI | 350°F |
Custom OD, thread connections and deflection ratings available upon request.
Typical Applications
- Coiled tubing drilling and milling in deviated and horizontal wells
- Downhole fishing through high-dogleg severity well sections
- BHA articulation for extended-reach well intervention operations
- Workover tool strings in multi-bend and sidetrack wellbores
- Sour H₂S well service with corrosion-resistant material specifications
Advantages Over Rigid Connectors
- Reduces bending stress on BHA components by allowing free angular deflection
- Prevents premature connection fatigue failure in high-curvature wells
- Eliminates torque lock issues commonly seen with rigid connections in doglegs
- Extends overall BHA service life by absorbing localized wellbore tortuosity
- Simplifies tool string assembly in complex well trajectories
FAQ
Q: What is the maximum angular deflection per joint?
A: Standard models provide up to 10° deflection. Custom deflection ranges are available upon request.
Q: What thread connections are available?
A: Standard connections include 1" AMMT, 1 1/2" AMMT and 2 3/8" PAC. Custom threads are supported.
Q: Can this universal joint be used in H₂S wells?
A: Yes. Sour-grade material options comply with NACE MR0175 / ISO 15156 standards.
Q: What is the lead time?
A: Standard models ship within 5-10 working days; custom units take 15-25 working days.
Get Custom Specification Sheet & Wholesale Quote
We manufacture full series downhole connectors with rigorous quality inspection and complete certification. Share your load rating, deflection range and thread specs, our engineering team will reply with datasheet and factory price within 24 hours.
