Product Overview

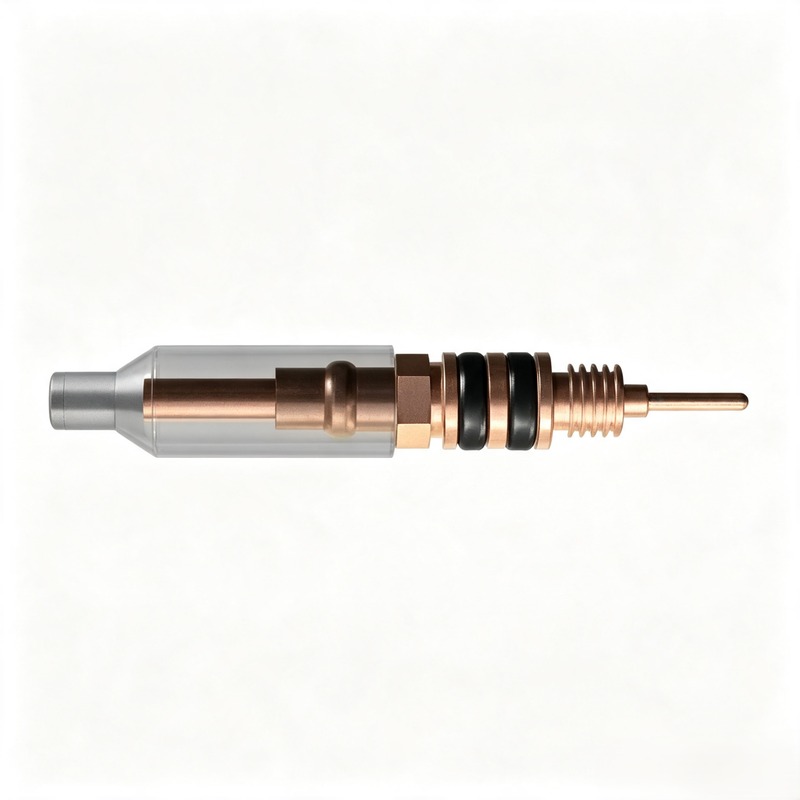

The High Pressure Plug Pin standard hermetic sealing logging cable signal contact pin is a universal standard spare electrical contact component specially developed for oilfield well logging and coiled tubing through-tubing intervention construction operations, fully compatible with all JEREH brand logging motorhead assembly and surface cable hanger tool assemblies, serving as the core conductive contact element to realize stable, continuous transmission of logging cable electrical measurement signals between upper surface logging instruments and downhole underground logging tool strings.
This high pressure plug pin adopts integrated integral high-pressure hermetic sealing structural design, multiple layers of built-in sealing barrier components form reliable internal pressure isolation barriers to block high-pressure wellbore fluid reverse leakage along the contact pin gap, maintaining stable internal electrical insulation performance under rated high-pressure working conditions, avoiding electrical signal short-circuit or measurement data distortion failure risks caused by wellbore fluid intrusion. The external end of the plug pin is equipped with universal industry standard 1/4-28UNF-2A external thread connection specification, realizing interchangeable quick disassembly and assembly between matching logging motorhead and cable hanger internal installation positions, convenient for on-site worn plug pin replacement maintenance operations without complicated special tool matching requirements.
The product adopts single unified standard dimensional specification: fixed outer diameter OD 0.31", uniform rated maximum safe working pressure up to 15,000psi, allowable long-term continuous construction working temperature reaches 300°F, all models adopt STD standard working condition configuration, applicable to most conventional medium-high pressure, medium-temperature oil and gas well logging construction working conditions.
The High Pressure Plug Pin has no complex internal movable friction components, spring energy storage assemblies or differential pressure release mechanisms, with extremely simplified wellsite disassembly and replacement operation flow and low routine maintenance cost; construction crews only need to screw out the old failed plug pin from the internal thread installation hole of the logging motorhead assembly or surface cable hanger, then screw the new standard high pressure plug pin into the thread hole to complete the entire contact pin replacement assembly work, no additional complicated auxiliary operation steps are required, effectively shortening on-site equipment maintenance construction time and reducing human error risks.
The standardized product lineup covers only one unified standard dimensional specification (OD 0.31"), with fixed dedicated standard 1/4-28UNF-2A external thread connection, uniform rated maximum safe working pressure of 15,000psi and uniform allowable continuous working temperature of 300°F; custom outer diameter size, thread specification and high-pressure resistance grade customization are available upon customer technical drawing submission.
Complete Technical Specification Table
| PN Part Number | Outer Diameter OD | Allowable Continuous Working Temperature | Rated Maximum Safe Working Pressure | Dedicated Standard External Connection Thread | Working Condition Grade |
|---|---|---|---|---|---|
| L5320310120 | 0.31" | 300°F | 15,000psi | 1/4-28UNF-2A | STD Standard |
Note: Custom outer diameter size, external connection thread specification and high-pressure resistance grade modifications are available via engineering consultation. Only one unified standard dimensional specification is provided for this high pressure plug pin product line: outer diameter OD 0.31", dedicated standard 1/4-28UNF-2A external thread connection, uniform allowable continuous working temperature of 300°F, uniform rated maximum safe working pressure of 15,000psi, all models adopt STD standard working condition configuration.
Core Features & Advantages
Full JEREH Tool Matching Design: This high pressure plug pin is specially developed to be fully compatible with all JEREH brand logging motorhead assembly and surface cable hanger tool assemblies, serving as the designated standard matching electrical contact component, perfectly matching the internal thread installation hole dimensional specifications of both logging motorhead and cable hanger, realizing seamless matching assembly without size adaptation deviation.
Integrated Integral Multi-Layer High-Pressure Hermetic Sealing Structural Design: Multiple layers of built-in integrated sealing barrier components are molded into a single integral unit inside the plug pin body, forming reliable multi-stage internal pressure isolation barriers to block high-pressure wellbore fluid reverse leakage along the contact pin assembly gap, maintaining stable internal electrical insulation performance under rated 15,000psi high-pressure working conditions, avoiding electrical signal short-circuit or logging measurement data distortion failure risks caused by wellbore fluid intrusion and internal conductive core short-circuit.
Universal Industry Standard 1/4-28UNF-2A External Thread Interchangeable Connection Design: The external mounting end of the plug pin adopts universal industry standard 1/4-28UNF-2A fine pitch external thread connection specification, realizing interchangeable quick disassembly and assembly between matching logging motorhead and cable hanger internal thread installation positions, convenient for on-site worn plug pin replacement maintenance operations, no complicated special disassembly tool matching requirements, simplifying on-site maintenance operation flow.
Single Unified Standard Dimensional & Performance Specification Design: The product adopts single unified standard dimensional and performance specification for unified batch production and inventory management: fixed outer diameter OD 0.31", uniform rated maximum safe working pressure up to 15,000psi, allowable long-term continuous construction working temperature reaches 300°F, all models adopt STD standard working condition configuration, covering most conventional medium-high pressure, medium-temperature oil and gas well logging construction working conditions, convenient for customers to carry out unified spare parts inventory procurement and storage management without multiple different specification spare parts stock preparation.
Ultra-Simplified Wellsite Plug Pin Replacement & Maintenance Operation Logic: The high pressure plug pin has no complex internal movable friction components or spring energy storage assemblies, the overall structural layout is compact and neat, the internal sealing and conductive functional modules adopt integrated molded forming parts with long service life; the entire plug pin replacement assembly operation flow is highly streamlined, only two simple threaded disassembly and screwing steps are needed to complete the replacement of the old failed plug pin with a new standard plug pin inside the logging motorhead or cable hanger, no additional complicated auxiliary operation steps are required; after each well logging construction work is completed, only simple surface circulating fluid debris flushing cleaning and external thread sealing surface wear inspection are required, no complex disassembly, internal sealing component replacement or spring preload adjustment maintenance procedures, greatly reducing daily maintenance labor and spare parts inventory cost.
Application Scenarios
1. Conventional medium-high pressure medium-temperature oil and gas well coiled tubing through-tubing well logging construction operations, used as standard matching electrical signal transmission contact component for JEREH series logging motorhead assembly and surface cable hanger
2. Onshore and offshore oilfield coiled tubing intervention well logging data measurement construction auxiliary operations, realizing stable transmission of logging cable electrical measurement signals between upper surface logging instruments and downhole underground logging tool strings
3. Medium-pressure medium-temperature oil and gas well routine periodic production logging construction maintenance operations, used as interchangeable spare contact pin replacement parts for logging motorhead and cable hanger internal signal transmission channels
4. Standard matching spare parts inventory supporting operations for all JEREH brand well logging tool series equipment, convenient for oilfield well construction teams to carry out unified spare parts procurement and storage management
Standard Delivery Package
Complete single standard high pressure plug pin integral pre-assembled unit (integrated built-in multi-layer hermetic sealing barrier components + conductive contact core + 1/4-28UNF-2A external mounting thread)
Spare interchangeable sealing ring maintenance kit for on-site plug pin sealing surface wear replacement
Full factory inspection test report including repeated high-pressure sealing load fatigue resistance test, integral tensile load test, internal electrical insulation performance calibration test data
Product dimension drawing and official installation & replacement operation instruction manual, with detailed on-site logging motorhead assembly / surface cable hanger internal plug pin replacement maintenance operation guidance, with clear confirmation reminder for matching thread specification and plug pin installation torque setting according to different well construction operation scheme demands during order placement
Quality Warranty & After-Sales Service
Warranty Coverage: 12 months after factory shipment or 2000 cumulative high-pressure sealing load cycles, whichever condition is reached first
Full factory inspection: Each finished standard high pressure plug pin unit passes integral tensile load test, repeated high-pressure sealing load fatigue test, internal electrical insulation performance calibration test before factory delivery
Free professional technical support: Our oilfield downhole tool engineering team provides JEREH logging motorhead assembly / surface cable hanger tool string matching, plug pin outer diameter size and connection thread specification customization consultation free of charge
Long-term spare parts supply: All interchangeable sealing ring wear maintenance accessories are stocked with competitive factory bulk pricing
Custom development service: Support custom outer diameter size specifications, customized external connection thread specifications, high-pressure resistance grade modification and special non-standard size high pressure plug pin units based on customer technical drawings
FAQ
Q1: What is the core function of a High Pressure Plug Pin Standard Hermetic Sealing Logging Cable Signal Contact Pin Matched For JEREH Logging Motorhead Assembly & Surface Cable Hanger?
The High Pressure Plug Pin standard hermetic sealing logging cable signal contact pin is a universal standard spare electrical contact component specially developed for oilfield well logging and coiled tubing through-tubing intervention construction operations, fully compatible with all JEREH brand logging motorhead assembly and surface cable hanger tool assemblies, serving as the core conductive contact element to realize stable, continuous transmission of logging cable electrical measurement signals between upper surface logging instruments and downhole underground logging tool strings. This high pressure plug pin adopts integrated integral high-pressure hermetic sealing structural design, multiple layers of built-in sealing barrier components form reliable internal pressure isolation barriers to block high-pressure wellbore fluid reverse leakage along the contact pin gap, maintaining stable internal electrical insulation performance under rated high-pressure working conditions, avoiding electrical signal short-circuit or measurement data distortion failure risks caused by wellbore fluid intrusion. The external end of the plug pin is equipped with universal industry standard 1/4-28UNF-2A external thread connection specification, realizing interchangeable quick disassembly and assembly between matching logging motorhead and cable hanger internal installation positions, convenient for on-site worn plug pin replacement maintenance operations without complicated special tool matching requirements. The product adopts single unified standard dimensional specification: fixed outer diameter OD 0.31", uniform rated maximum safe working pressure up to 15,000psi, allowable long-term continuous construction working temperature reaches 300°F, all models adopt STD standard working condition configuration, applicable to most conventional medium-high pressure, medium-temperature oil and gas well logging construction working conditions. No complex internal movable friction components or spring assemblies are equipped, operation flow is highly streamlined, widely applied for conventional medium-high pressure medium-temperature oil and gas well coiled tubing through-tubing well logging construction operations and onshore and offshore oilfield coiled tubing intervention well logging data measurement construction auxiliary operations, providing reliable internal high-pressure sealing protection and stable logging cable electrical signal transmission function.
Q2: What three core structural advantages does this High Pressure Plug Pin Standard Hermetic Sealing Logging Cable Signal Contact Pin Matched For JEREH Logging Motorhead Assembly & Surface Cable Hanger own?
1. Full JEREH tool matching dedicated design, this high pressure plug pin is specially developed to be fully compatible with all JEREH brand logging motorhead assembly and surface cable hanger tool assemblies, serving as the designated standard matching electrical contact component, perfectly matching the internal thread installation hole dimensional specifications of both logging motorhead and cable hanger, realizing seamless matching assembly without size adaptation deviation; 2. Integrated integral multi-layer high-pressure hermetic sealing structural design & universal industry standard interchangeable external thread connection dual core functional design, multiple layers of built-in integrated sealing barrier components are molded into a single integral unit inside the plug pin body, forming reliable multi-stage internal pressure isolation barriers to block high-pressure wellbore fluid reverse leakage along the contact pin assembly gap, maintaining stable internal electrical insulation performance under rated 15,000psi high-pressure working conditions, avoiding electrical signal short-circuit or logging measurement data distortion failure risks caused by wellbore fluid intrusion and internal conductive core short-circuit; the external mounting end of the plug pin adopts universal industry standard 1/4-28UNF-2A fine pitch external thread connection specification, realizing interchangeable quick disassembly and assembly between matching logging motorhead and cable hanger internal thread installation positions, convenient for on-site worn plug pin replacement maintenance operations, no complicated special disassembly tool matching requirements, simplifying on-site maintenance operation flow; 3. Single unified standard dimensional & performance specification design ultra-simplified wellsite replacement & maintenance operation logic, the product adopts single unified standard dimensional and performance specification for unified batch production and inventory management: fixed outer diameter OD 0.31", uniform rated maximum safe working pressure up to 15,000psi, allowable long-term continuous construction working temperature reaches 300°F, all models adopt STD standard working condition configuration, covering most conventional medium-high pressure, medium-temperature oil and gas well logging construction working conditions, convenient for customers to carry out unified spare parts inventory procurement and storage management without multiple different specification spare parts stock preparation; the high pressure plug pin has no complex internal movable friction components or spring energy storage assemblies, the overall structural layout is compact and neat, the internal sealing and conductive functional modules adopt integrated molded forming parts with long service life; the entire plug pin replacement assembly operation flow is highly streamlined, only two simple threaded disassembly and screwing steps are needed to complete the replacement of the old failed plug pin with a new standard plug pin inside the logging motorhead or cable hanger, no additional complicated auxiliary operation steps are required; after each well logging construction work is completed, only simple surface circulating fluid debris flushing cleaning and external thread sealing surface wear inspection are required, no complex disassembly, internal sealing component replacement or spring preload adjustment maintenance procedures, greatly reducing daily maintenance labor and spare parts inventory cost.
Q3: What matching JEREH tool assemblies and configurable options do these High Pressure Plug Pin Standard Hermetic Sealing Logging Cable Signal Contact Pin Matched For JEREH Logging Motorhead Assembly & Surface Cable Hanger support?
This high pressure plug pin is fully compatible with two core JEREH brand downhole logging tool assemblies: logging motorhead assembly and surface cable hanger assembly, serving as the dedicated standard interchangeable electrical signal transmission contact spare part for both tool series. The product supports three independent configurable options for free customer selection according to different downhole wellbore fluid construction environment requirements: outer diameter size specification, external connection thread specification, high-pressure resistance grade. All models support custom outer diameter size specifications upon customer request. Only one unified standard dimensional specification is provided for mass production inventory management: fixed outer diameter OD 0.31", dedicated standard 1/4-28UNF-2A external thread connection, uniform allowable continuous working temperature of 300°F, uniform rated maximum safe working pressure of 15,000psi. One independent working condition material grade version is available for all standard models: STD standard carbon steel working condition grade, with optional H₂S sour service high-corrosion-resistant alloy working condition grade customization upon special corrosive wellbore environment demands. Custom outer diameter size specifications, external connection thread specification modifications and high-pressure resistance grade modifications are available upon customer downhole wellbore fluid H₂S concentration corrosive environment construction demands.
Q4: What is the standard production lead time for bulk purchase orders?
All standard PN part numbers are kept in factory inventory, goods can be delivered within 7–15 working days. Customized high pressure plug pin units with special outer diameter size specifications, customized external connection thread specification modifications or high-pressure resistance grade changes require 20–35 working days production cycle, subject to total order quantity and customization scope.
Get Custom Datasheet & Factory Quote
We are a professional OEM & ODM manufacturer focused on full series JEREH brand well logging downhole tool supporting spare parts, covering high pressure plug pins, logging motorhead assemblies, surface cable hangers, integrated sand jetting subs, differential sliding sleeve jetting subs, coiled tubing suspension hangers, bypass flow divider valves, hydraulic pulse vibration shock exciters, thru-tubing hydraulic retractable blade underreamers, tapered pear conical pilot milling shoes, concave recessed milling shoes, five-blade five-wing milling shoes, flat bottom milling shoes, combination flat blade milling shoes, muncher multi-cutting milling shoes, convex nose pilot milling shoes, bi-directional reciprocating impact hammers, coiled tubing positive displacement drill motors, downhole gas-liquid separators, impact hammers, magnetic fishing rods, magnetic junk retrieval magnets, venturi junk baskets, flow activated releasable fishing overshots, flow activated releasable fishing spears, flow activated releasable JDC running/pulling tools, flow activated releasable GS fishing tools, bi-direction mechanical accelerators, bi-direction hydraulic accelerators, bi-direction hydraulic jars, up-stroke hydraulic jars, bi-direction mechanical jars, up-stroke mechanical jars, wireline grabs, wireline spears and all other supporting downhole fishing, jarring, anchoring and washing service tools. Every finished product undergoes strict factory tensile load, repeated high-pressure sealing load fatigue, internal electrical insulation performance calibration testing, with complete material inspection certification attached to each shipment. Please share your detailed technical requirements, including target matching JEREH tool assembly type (logging motorhead / surface cable hanger), required outer diameter size specification, external connection thread specification selection, high-pressure resistance grade, downhole wellbore fluid H₂S concentration corrosive environment construction conditions, working environment and all customized specification demands. Our dedicated oilfield downhole tool engineering team will send complete detailed technical datasheets and competitive factory wholesale quotations within 24 business hours, and provide professional on-site logging motorhead assembly / surface cable hanger internal plug pin replacement maintenance operation guidance, with clear confirmation reminder for matching thread specification and plug pin installation torque setting according to different well construction operation scheme demands during order placement.
