Product Overview
The Coiled Tubing Surface Hanger wellhead coiled tubing long-term suspension assembly is a special wellhead fixture developed for permanent long-term hanging of coiled tubing string at the well surface, widely applicable to velocity string installation, gas lift production string running and casing inner wall patch repair remedial workover operations.
This surface hanger supports full live well under-pressure construction operation, the overall on-site rig-up and disassembly workflow is simple and fast, effectively shortening on-site operation cycle. The side outlet connecting flange configuration is fully customizable for users, with three optional standard structural forms: three-way integral connecting flange, threaded stud connecting flange, or fully no side outlet flange design. All standard specifications adopt PSL3 product specification grade, with wide working pressure range covering 5000 psi to 15000 psi, matching coiled tubing outer diameter size of 1.25 inch to 2 inch, standard upper/lower wellhead connecting flange size range 2 9/16" to 4 1/16". Customized raw material grade, high-low temperature resistance index and higher pressure resistance grade can be provided upon customer special construction environment requirements.
The Coiled Tubing Surface Hanger has no complex internal movable friction components, spring energy storage assemblies or differential pressure release mechanisms, with extremely simplified wellsite operation flow and low maintenance cost; construction crews only need to fix the surface hanger on the wellhead upper connecting flange, hang the coiled tubing string into the hanger inner cavity to complete stable long-term suspension locking, and carry out subsequent gas lift string, velocity string or casing patch construction work under live well pressure, no additional complex auxiliary operation steps such as drop ball delivery or shear pin impact jarring are needed, shortening wellsite operation time and reducing human error risks.

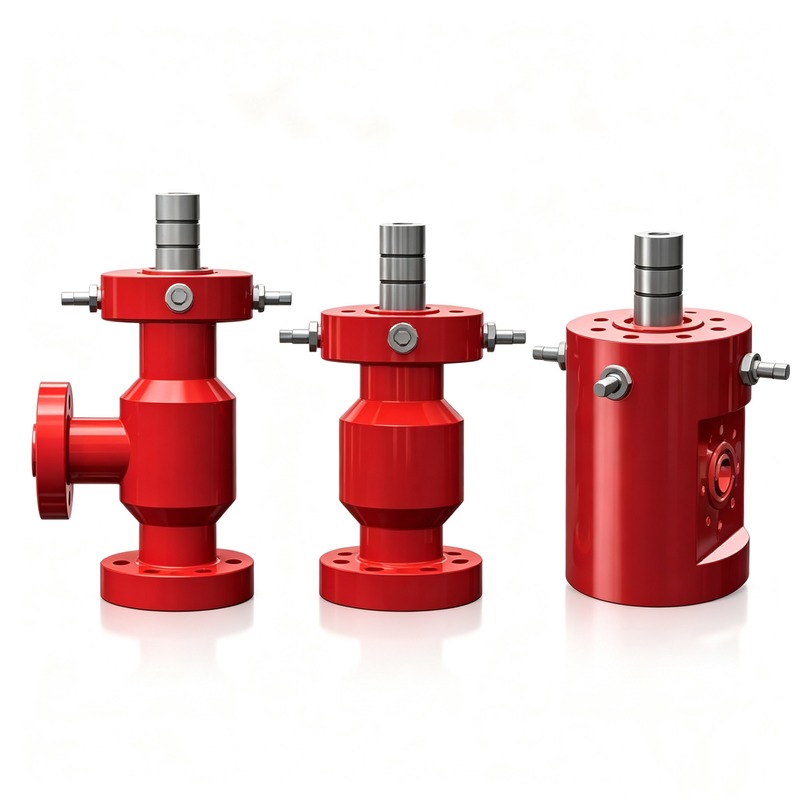

The standardized product lineup covers matching coiled tubing outer diameter size of 1.25" to 2", with complete supporting wellhead upper/lower flange size series and multiple side outlet flange configuration options to match different wellhead pipeline connection matching demands and various coiled tubing gas lift string & casing patch remedial workover construction demands. All standard specifications adopt PSL3 product specification grade; custom outer diameter matching size, side outlet flange structural form, raw material grade, temperature resistance index and pressure resistance grade customization are available upon customer technical drawing submission.
Complete Technical Specification Table
| CT Size (Coiled Tubing OD) | Up & Down Wellhead Flange Size | Side Outlet Flange Configuration | Working Pressure Range (psi) | Product Specification Grade | PN Part Number |
|---|---|---|---|---|---|
| 1.25" ~ 2" | 2 9/16" ~ 4 1/16" | 3-Way Integral Flange | 5000 ~ 15000 psi | PSL3 | Contact Sales Reps |
| 1.25" ~ 2" | 2 9/16" ~ 4 1/16" | No Side Outlet / Blank | 5000 ~ 15000 psi | PSL3 | Contact Sales Reps |
| 1.25" ~ 2" | 2 9/16" ~ 4 1/16" | Studded Threaded Flange | 5000 ~ 15000 psi | PSL3 | Contact Sales Reps |
Note: Custom raw material grade, high-low temperature resistance index and higher pressure resistance grade can be provided upon customer special construction environment requirements. All standard specifications adopt PSL3 oilfield product specification grade; multiple standard side outlet flange structural forms are optional for each matching coiled tubing size to adapt to different wellhead auxiliary pipeline connection matching demands.
Core Features & Advantages
Live Well Under-Pressure Full Operation Design: The surface hanger supports complete construction operation while maintaining internal well pressure, the overall on-site rig-up and disassembly workflow is simple and fast, effectively shortening on-site operation cycle and improving construction efficiency.
Three Optional Customizable Side Outlet Flange Configuration Design: The side outlet connecting flange structural form is fully customizable for users, three standard optional structural forms: three-way integral connecting flange, threaded stud connecting flange, or fully no side outlet flange design, which can flexibly adapt to different wellhead auxiliary pipeline connection matching demands.
PSL3 Standard Product Specification Grade, Wide Working Pressure Range Coverage: All standard models adopt PSL3 oilfield product specification grade, the standard working pressure range covers 5000 psi to 15000 psi, which can meet different downhole well pressure construction environment requirements.
Complete Matching Coiled Tubing Size Series: The applicable matching coiled tubing outer diameter size range covers 1.25 inch to 2 inch, the standard supporting wellhead upper/lower connecting flange size range is 2 9/16" to 4 1/16", with complete matching size series to adapt to mainstream coiled tubing and wellhead flange specification matching demands.
Ultra-Simplified Wellsite Operation Logic: The coiled tubing surface hanger has no complex internal movable friction components, spring energy storage assemblies or differential pressure release mechanisms, the operation flow is highly streamlined: only need to fix the surface hanger on the wellhead upper connecting flange, hang the coiled tubing string into the hanger inner cavity to complete stable long-term suspension locking, and carry out subsequent gas lift string, velocity string or casing patch construction work under live well pressure, no complex auxiliary operation steps such as drop ball delivery or shear pin impact jarring are needed to shorten wellsite operation time and reduce human error risks.
Low Routine Maintenance Design: The integral cast alloy steel main body eliminates vulnerable split assembly movable wear parts; after each wellhead long-term coiled tubing suspension construction operation, only simple surface pipeline debris cleaning and hanger inner suspension locking surface wear inspection are required, no complex disassembly, internal locking component replacement or spring preload adjustment maintenance procedures, greatly reducing daily maintenance labor and spare parts inventory cost.
Application Scenarios
1. Wellhead long-term coiled tubing permanent suspension heavy-load intervention treatments, including velocity string installation, gas lift production string running and casing inner wall patch repair remedial workover construction operations
2. Conventional sweet crude oilfield PSL3 grade coiled tubing surface suspension hanger gas lift string & casing patch remedial workover service (STD Standard carbon steel working condition grade)
3. High-sulfur H₂S containing corrosive downhole wellbore fluid construction project wellhead long-term coiled tubing suspension heavy workover projects requiring H₂S sour service anti-sulfide stress cracking high-corrosion-resistant alloy material grade
4. Long-term continuous static suspension load safety protection for wellhead coiled tubing suspension assemblies in onshore and offshore oilfield gas lift string, velocity string and casing patch remedial workover intervention projects
Standard Delivery Package
Complete wellhead coiled tubing long-term suspension surface hanger integral cast pre-assembled unit including main hanger body, upper/lower wellhead connecting flange and selectable side outlet flange assembly
Spare interchangeable coiled tubing suspension locking surface maintenance kit for on-site locking surface wear repair and replacement
Full factory inspection test report including repeated long-term static suspension load fatigue resistance test, integral tensile load test, full pressure tightness sealing performance calibration test data
Product dimension drawing and official installation & operation instruction manual, with detailed on-site wellhead coiled tubing long-term suspension, gas lift string and casing patch construction operation guidance, with clear confirmation reminder for side outlet flange structural form selection (3-way integral / studded threaded / no side outlet) according to different wellhead auxiliary pipeline connection matching demands during order placement
Quality Warranty & After-Sales Service
Warranty Coverage: 12 months after factory shipment or 2000 cumulative long-term static suspension load cycles, whichever condition is reached first
Full factory inspection: Each finished wellhead coiled tubing long-term suspension surface hanger passes integral tensile load test, repeated long-term static suspension load fatigue test, full pressure tightness sealing performance calibration test before factory delivery
Free professional technical support: Our oilfield downhole wellhead suspension tool engineering team provides coiled tubing gas lift string & casing patch remedial workover tool string matching, outer diameter & working condition grade (STD / H₂S) selection and side outlet flange structural form selection consultation free of charge
Long-term spare parts supply: All interchangeable coiled tubing suspension locking surface wear maintenance accessories are stocked with competitive factory bulk pricing
Custom development service: Support custom matching coiled tubing outer diameter sizes, customized side outlet flange structural form specifications, raw material grade modification, high-low temperature resistance index adjustment, pressure resistance grade upgrading and special size wellhead coiled tubing long-term suspension surface hangers based on customer technical drawings
FAQ
Q1: What is the core function of a Coiled Tubing Surface Hanger Wellhead Long-Term Coiled Tubing Suspension Assembly?
The Coiled Tubing Surface Hanger wellhead coiled tubing long-term suspension assembly is a special wellhead fixture developed for permanent long-term hanging of coiled tubing string at the well surface, widely applicable to velocity string installation, gas lift production string running and casing inner wall patch repair remedial workover operations. This surface hanger supports full live well under-pressure construction operation, the overall on-site rig-up and disassembly workflow is simple and fast, effectively shortening on-site operation cycle. The side outlet connecting flange configuration is fully customizable for users, with three optional standard structural forms: three-way integral connecting flange, threaded stud connecting flange, or fully no side outlet flange design. All standard specifications adopt PSL3 product specification grade, with wide working pressure range covering 5000 psi to 15000 psi, matching coiled tubing outer diameter size of 1.25 inch to 2 inch. Customized raw material grade, high-low temperature resistance index and higher pressure resistance grade can be provided upon customer special construction environment requirements. No complex internal movable friction components or spring assemblies are equipped, operation flow is highly simplified, widely applied for wellhead long-term coiled tubing permanent hanging, gas lift string, velocity string and casing patch remedial workover construction operations.
Q2: What three core structural advantages does this Coiled Tubing Surface Hanger Wellhead Long-Term Coiled Tubing Suspension Assembly own?
1. Live well under-pressure full operation design, the surface hanger supports complete construction operation while maintaining internal well pressure, the overall on-site rig-up and disassembly workflow is simple and fast, effectively shortening on-site operation cycle and improving construction efficiency; 2. Three optional customizable side outlet flange configuration design, the side outlet connecting flange structural form is fully customizable for users, three standard optional structural forms: three-way integral connecting flange, threaded stud connecting flange, or fully no side outlet flange design, which can flexibly adapt to different wellhead auxiliary pipeline connection matching demands; 3. PSL3 standard product specification grade, wide working pressure range coverage & ultra-simplified wellsite operation logic, all standard models adopt PSL3 oilfield product specification grade, the standard working pressure range covers 5000 psi to 15000 psi, which can meet different downhole well pressure construction environment requirements; the coiled tubing surface hanger has no complex internal movable friction components, spring energy storage assemblies or differential pressure release mechanisms, only need to fix the surface hanger on the wellhead upper connecting flange, hang the coiled tubing string into the hanger inner cavity to complete stable long-term suspension locking, and carry out subsequent gas lift string, velocity string or casing patch construction work under live well pressure, no complex auxiliary operation steps such as drop ball delivery or shear pin impact jarring are needed to shorten wellsite operation time and reduce human error risks; the product also features complete matching coiled tubing size series and integral cast alloy steel main body low maintenance design to further expand applicable construction scope and reduce post-operation maintenance workload.
Q3: What outer diameter sizes and configurable options do these Coiled Tubing Surface Hanger Wellhead Long-Term Coiled Tubing Suspension Assemblies support?
Our standard applicable matching coiled tubing outer diameter size range covers 1.25" ~ 2". Each matching size supports three independent side outlet flange structural form versions for free matching selection: three-way integral flange / threaded stud flange / fully no side outlet flange. All models support custom wellhead upper/lower connecting flange sizes and bottom coiled tubing suspension locking inner cavity profiles compatible with global mainstream coiled tubing and wellhead flange connector assemblies and other supporting downhole gas lift string & casing patch remedial workover tools. Two independent working condition material grade versions are also optional for each matching coiled tubing size: STD standard carbon steel working condition grade and H₂S sour service high-corrosion-resistant alloy working condition grade. Custom raw material grade specifications, high-low temperature resistance index specifications and pressure resistance grade specifications are available upon customer downhole wellbore fluid H₂S concentration corrosive environment and different wellhead auxiliary pipeline connection matching demands.
Q4: What is the standard production lead time for bulk purchase orders?
All standard PN part numbers are kept in factory inventory, goods can be delivered within 7–15 working days. Customized wellhead coiled tubing long-term suspension surface hangers with special matching coiled tubing outer diameter sizes or customized side outlet flange structural form specifications, raw material grade specifications, high-low temperature resistance index specifications, pressure resistance grade specifications & wellhead connecting flange profiles require 20–35 working days production cycle, subject to total order quantity and customization scope.
