Product Overview

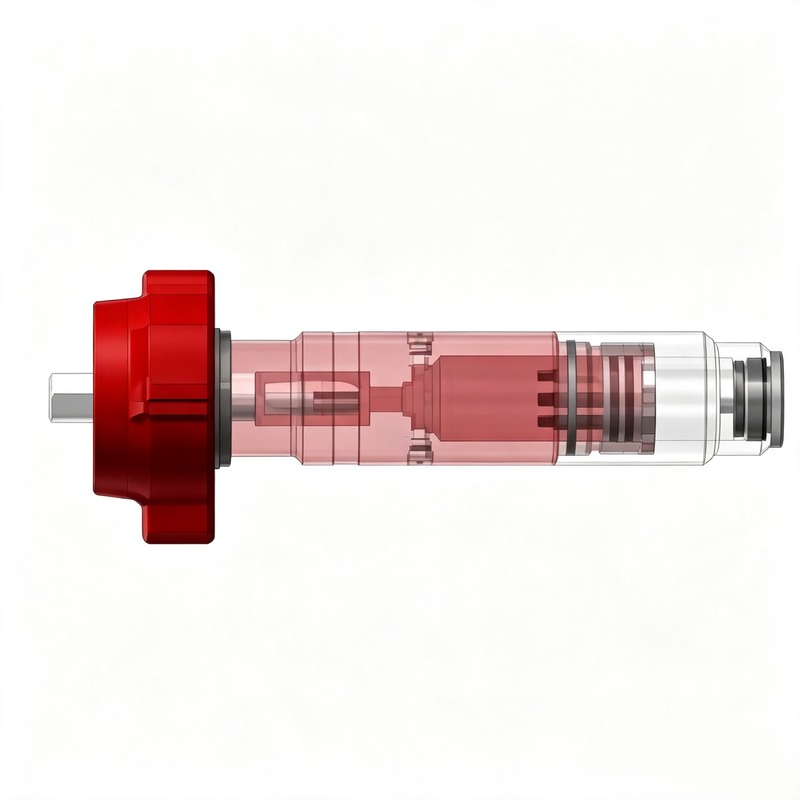

The Surface Cable Hanger bidirectional dual-grapple logging wireline suspension & high-pressure sealing anchor is a special oilfield surface logging cable fixing tool developed for two core oilfield construction operation scenarios: coiled tubing reel logging cable anchoring and intelligent well completion wellhead cable suspension.
First application scenario: the surface cable hanger is fixedly installed on the outer end face of the coiled tubing reel, providing stable mechanical anchoring support and reliable high-pressure sealing protection for the logging cable extending from the reel into the downhole wellbore, limiting cable axial sliding displacement during reel forward/reverse rotation and well tripping movement, and blocking wellbore high-pressure fluid reverse leakage along the cable gap to protect surface logging instrument equipment.
Second application scenario: the surface cable hanger is used as a fixed cable suspension fixture at the wellhead of intelligent well completion construction wells, realizing suspended fixing and high-pressure sealing of the logging control cable at the wellhead position, providing stable cable laying support for subsequent downhole intelligent completion tool string deployment and long-term well monitoring data transmission.
The tool adopts unique dual-grapple bidirectional clamping structural design, the matched pair of grapple inserts forms bidirectional mechanical locking clamping points on the outer surface of the logging cable, which can effectively restrict the upward and downward axial displacement of the logging cable under tension load, avoid cable pulling deviation and cable core wiring loose contact failure risks caused by reel rotation and well tripping operation.
The product is equipped with dual-stage independent high-pressure sealing system composed of two core sealing components: special high-pressure resistant non-drying sealing compound and built-in high-voltage through pin. The sealing compound fills the annular gap between the cable outer sheath and the hanger inner cavity to form primary fluid blocking barrier; the internal high-voltage through pin realizes insulated sealed penetration of the cable core, forming secondary high-pressure sealing barrier, the double composite sealing structure can reliably block high-pressure wellbore fluid reverse leakage under rated 15,000psi working pressure, guaranteeing stable continuous electrical signal transmission of the logging cable during long-term construction operation.
The grapple clamping inserts are fully interchangeable and replaceable structural parts, users only need to replace the internal grapple inserts of different inner diameter specifications to realize matching adaptation with multiple different outer diameter logging cables, one single main body can be compatible with multiple cable specifications, effectively reducing customer spare parts inventory purchase and storage costs.
The standard main body size of the surface cable hanger is 2" FIG 1502, all models adopt STD standard working condition configuration, the rated maximum safe working pressure reaches 15,000psi; three standard logging cable configuration options are provided for free customer selection according to on-site construction logging tool matching requirements: single-conductor mono logging cable, three-conductor tri-logging cable, seven-conductor hepta multi-core logging cable.
The Surface Cable Hanger has no complex internal movable friction components, spring energy storage assemblies or differential pressure release mechanisms, with extremely simplified wellsite installation and disassembly operation flow and low routine maintenance cost; construction crews only need to penetrate the logging cable through the central inner cavity of the hanger, install the matched bidirectional grapple inserts to clamp the cable outer sheath, fill high-pressure sealing compound into the annular gap, and install the high-voltage through pin to complete the whole cable anchoring and sealing assembly work, then fix the whole hanger unit on the coiled tubing reel end face or wellhead base to finish installation, no additional complex auxiliary operation steps such as separate ball dropping or shear pin triggering are needed, shortening wellsite installation construction time and reducing human error risks.
The standardized product lineup covers three standard logging cable configuration options under unified 2" FIG 1502 main body size, all models adopt STD standard working condition configuration with uniform rated 15,000psi maximum working pressure; custom grapple insert inner diameter specifications, main body outer size and sealing compound high-pressure resistance grade customization are available upon customer technical drawing submission.
Complete Technical Specification Table
| PN Part Number | Main Body Standard Size | Logging Cable Configuration Type | Working Condition Grade | Rated Maximum Safe Working Pressure |
|---|---|---|---|---|
| L5341000120 | 2" FIG 1502 | Single / Mono Conductor Logging Cable | STD Standard | 15,000psi |
| L5343000120 | 2" FIG 1502 | 3 / Tri-Conductor Logging Cable | STD Standard | 15,000psi |
| L5347000120 | 2" FIG 1502 | 7 / Hepta Conductor Logging Cable | STD Standard | 15,000psi |
Note: Custom grapple insert inner diameter specifications, main body outer size and sealing compound high-pressure resistance grade modifications are available via engineering consultation. All standard specifications adopt STD standard working condition configuration; unified main body standard size: 2" FIG 1502, three standard logging cable configuration options are provided: single-conductor mono wireline, three-conductor tri-logging cable, seven-conductor hepta multi-core logging cable, all models adopt uniform rated maximum safe working pressure of 15,000psi.
Core Features & Advantages
Dual-Grapple Bidirectional Cable Locking Clamping Structural Design: A pair of matched double grapple clamping inserts are pre-installed inside the hanger main body, the two groups of grapple tooth surfaces form bidirectional mechanical locking clamping points on the outer circumferential surface of the logging cable, which can effectively restrict the upward and downward axial displacement of the logging cable under tension load during coiled tubing reel forward/reverse rotation and well tripping movement, avoid cable pulling deviation and cable core wiring loose contact failure risks caused by cable axial sliding, and greatly improve the stability of logging cable anchoring installation.
Dual-Stage Independent Composite High-Pressure Sealing System: The product is equipped with two independent series high-pressure sealing barriers to jointly block high-pressure wellbore fluid reverse leakage; the first sealing barrier is formed by filling special high-pressure resistant non-drying sealing compound into the annular gap between the cable outer sheath and the hanger inner cavity, which realizes annular gap fluid isolation and basic pressure resistance sealing function; the second sealing barrier is composed of built-in insulated high-voltage through pin, which realizes insulated sealed penetration of the internal cable conductive core, forming secondary high-pressure fluid blocking barrier, the double composite sealing structure can reliably block high-pressure wellbore fluid reverse leakage under rated 15,000psi working pressure, guaranteeing stable continuous electrical signal transmission of the logging cable during long-term construction operation.
Interchangeable Replaceable Grapple Insert Multi-Cable Adaptation Design: The grapple clamping inserts installed inside the hanger main body are fully interchangeable and replaceable independent structural parts, users only need to disassemble and replace the internal grapple inserts of different inner diameter specifications to realize matching adaptation with multiple different outer diameter logging cables, one single 2" FIG 1502 main body can be compatible with multiple cable specifications, effectively reducing customer spare parts inventory purchase and storage costs, and improving the universality and applicability of a single set of equipment.
Two Independent Core Application Scenario Matching Design: The surface cable hanger is specially developed for two mainstream oilfield construction operation scenarios, with wide application coverage: Scenario one: fixed installation on coiled tubing reel outer end face, providing stable anchoring and high-pressure sealing protection for logging cable extending from reel into wellbore; Scenario two: suspended fixing fixture for intelligent well completion construction wellhead, realizing wellhead suspended fixing and high-pressure sealing of logging control cable for subsequent downhole intelligent completion tool string deployment and long-term well monitoring data transmission work.
Standardized 2" FIG 1502 Main Body Size & Unified 15,000psi High-Pressure Working Pressure Rating: The main body of all surface cable hanger models adopts unified standard 2" FIG 1502 outer size specification, which can be matched with mainstream oilfield coiled tubing reel and intelligent completion wellhead standard connection base sizes, convenient for standardized wellsite equipment matching and installation selection; all models adopt STD standard working condition configuration, the rated maximum safe working pressure reaches 15,000psi, which can meet the high-pressure sealing construction requirements of most conventional medium-high pressure oil and gas wells.
Three Standard Logging Cable Configuration Matching Options: Three standard logging cable configuration options are provided for free customer selection according to on-site construction logging tool matching requirements: single-conductor mono logging cable, three-conductor tri-logging cable, seven-conductor hepta multi-core logging cable, covering mainstream single-core and multi-core logging cable specification types in oilfield logging construction operations, avoiding the need for separate customized development of hanger main bodies for different cable configurations.
Ultra-Simplified Wellsite Installation & Disassembly Operation Logic & Low Routine Maintenance Design: The surface cable hanger has no complex internal movable friction components or spring energy storage assemblies, the overall assembly structure is compact and neat, the internal functional modules adopt wear-resistant integrated forming parts with long service life; the whole cable anchoring and sealing assembly operation flow is highly streamlined, only three groups of simple installation steps are needed to complete the installation of the entire hanger unit on coiled tubing reel or wellhead base, no additional complicated auxiliary operation steps are required; after each well logging construction work is fully completed, only simple surface circulating fluid debris flushing cleaning and grapple insert tooth surface wear inspection are required, no complex disassembly, internal sealing component replacement or spring preload adjustment maintenance procedures, greatly reducing daily maintenance labor and spare parts inventory cost.
Application Scenarios
1. Conventional medium-high pressure oil and gas well coiled tubing reel logging cable anchoring construction operations, providing stable cable anchoring and high-pressure sealing protection for logging cables extending from coiled tubing reels into downhole wellbore
2. Intelligent well completion construction wellhead logging control cable suspended fixing and high-pressure sealing construction operations, supporting subsequent downhole intelligent completion tool string deployment and long-term underground well monitoring data transmission work
3. Onshore and offshore oilfield conventional single-core, three-core and seven-core multi-conductor logging cable matching logging construction operations, compatible with mainstream oilfield coiled tubing reel and intelligent completion wellhead standard connection base equipment
4. Medium-high pressure oil and gas well well control safety intervention construction auxiliary operations, providing reliable cable anchoring and double-layer high-pressure sealing barrier protection to prevent wellbore high-pressure fluid reverse leakage along cable gaps and avoid surface logging instrument equipment damage risks
Standard Delivery Package
Complete surface cable hanger integral pre-assembled main body unit with standard 2" FIG 1502 outer size
Spare interchangeable bidirectional grapple clamping insert maintenance kit (multiple sets of grapple inserts for different logging cable outer diameter specifications)
Special high-pressure resistant non-drying sealing compound filling auxiliary kit
Spare interchangeable insulated high-voltage through pin maintenance kit
Full factory inspection test report including repeated bidirectional cable clamping load fatigue resistance test, integral tensile load test, dual-stage high-pressure sealing pressure holding performance calibration test data
Product dimension drawing and official installation & operation instruction manual, with detailed on-site coiled tubing reel and intelligent completion wellhead cable anchoring sealing construction operation guidance, with clear confirmation reminder for grapple insert inner diameter size selection, logging cable configuration type matching and sealing compound filling quantity setting according to different well construction operation scheme demands during order placement
Quality Warranty & After-Sales Service
Warranty Coverage: 12 months after factory shipment or 2000 cumulative bidirectional cable clamping load cycles, whichever condition is reached first
Full factory inspection: Each finished surface cable hanger unit passes integral tensile load test, repeated bidirectional cable clamping load fatigue test, dual-stage high-pressure sealing pressure holding performance calibration test before factory delivery
Free professional technical support: Our oilfield downhole tool engineering team provides coiled tubing reel / intelligent completion wellhead logging cable anchoring sealing construction tool string matching, main body size selection, grapple insert inner diameter specification customization consultation free of charge
Long-term spare parts supply: All interchangeable bidirectional grapple clamping inserts, high-voltage through pins and high-pressure sealing compound filling auxiliary accessories are stocked with competitive factory bulk pricing
Custom development service: Support custom grapple insert inner diameter specifications, customized main body outer size, sealing compound high-pressure resistance grade modification and special size surface cable hanger units based on customer technical drawings
FAQ
Q1: What is the core function of a Surface Cable Hanger Bidirectional Dual Grapple Logging Wireline Suspension & High-Pressure Sealing Anchor For Coiled Tubing Reel & Smart Completion Wellhead?
The Surface Cable Hanger bidirectional dual-grapple logging wireline suspension & high-pressure sealing anchor is a special oilfield surface logging cable fixing tool developed for two core oilfield construction operation scenarios: coiled tubing reel logging cable anchoring and intelligent well completion wellhead cable suspension. First application scenario: the surface cable hanger is fixedly installed on the outer end face of the coiled tubing reel, providing stable mechanical anchoring support and reliable high-pressure sealing protection for the logging cable extending from the reel into the downhole wellbore, limiting cable axial sliding displacement during reel forward/reverse rotation and well tripping movement, and blocking wellbore high-pressure fluid reverse leakage along the cable gap to protect surface logging instrument equipment. Second application scenario: the surface cable hanger is used as a fixed cable suspension fixture at the wellhead of intelligent well completion construction wells, realizing suspended fixing and high-pressure sealing of the logging control cable at the wellhead position, providing stable cable laying support for subsequent downhole intelligent completion tool string deployment and long-term well monitoring data transmission. The tool adopts unique dual-grapple bidirectional clamping structural design, the matched pair of grapple inserts forms bidirectional mechanical locking clamping points on the outer surface of the logging cable, which can effectively restrict the upward and downward axial displacement of the logging cable under tension load, avoid cable pulling deviation and cable core wiring loose contact failure risks caused by reel rotation and well tripping operation. The product is equipped with dual-stage independent high-pressure sealing system composed of two core sealing components: special high-pressure resistant non-drying sealing compound and built-in high-voltage through pin. The sealing compound fills the annular gap between the cable outer sheath and the hanger inner cavity to form primary fluid blocking barrier; the internal high-voltage through pin realizes insulated sealed penetration of the cable core, forming secondary high-pressure sealing barrier, the double composite sealing structure can reliably block high-pressure wellbore fluid reverse leakage under rated 15,000psi working pressure, guaranteeing stable continuous electrical signal transmission of the logging cable during long-term construction operation. The grapple clamping inserts are fully interchangeable and replaceable structural parts, users only need to replace the internal grapple inserts of different inner diameter specifications to realize matching adaptation with multiple different outer diameter logging cables, one single main body can be compatible with multiple cable specifications, effectively reducing customer spare parts inventory purchase and storage costs. The standard main body size of the surface cable hanger is 2" FIG 1502, all models adopt STD standard working condition configuration, the rated maximum safe working pressure reaches 15,000psi; three standard logging cable configuration options are provided for free customer selection according to on-site construction logging tool matching requirements: single-conductor mono logging cable, three-conductor tri-logging cable, seven-conductor hepta multi-core logging cable. No complex internal movable friction components or spring assemblies are equipped, operation flow is highly streamlined, widely applied for conventional medium-high pressure oil and gas well coiled tubing reel logging cable anchoring construction operations and intelligent well completion construction wellhead logging control cable suspended fixing construction operations, providing reliable bidirectional cable anchoring and double-layer high-pressure sealing barrier protection.
Q2: What three core structural advantages does this Surface Cable Hanger Bidirectional Dual Grapple Logging Wireline Suspension & High-Pressure Sealing Anchor For Coiled Tubing Reel & Smart Completion Wellhead own?
1. Dual-grapple bidirectional cable locking clamping structural design, a pair of matched double grapple clamping inserts are pre-installed inside the hanger main body, the two groups of grapple tooth surfaces form bidirectional mechanical locking clamping points on the outer circumferential surface of the logging cable, which can effectively restrict the upward and downward axial displacement of the logging cable under tension load during coiled tubing reel forward/reverse rotation and well tripping movement, avoid cable pulling deviation and cable core wiring loose contact failure risks caused by cable axial sliding, and greatly improve the stability of logging cable anchoring installation; 2. Dual-stage independent composite high-pressure sealing system & interchangeable replaceable grapple insert multi-cable adaptation design, the product is equipped with two independent series high-pressure sealing barriers to jointly block high-pressure wellbore fluid reverse leakage; the first sealing barrier is formed by filling special high-pressure resistant non-drying sealing compound into the annular gap between the cable outer sheath and the hanger inner cavity, which realizes annular gap fluid isolation and basic pressure resistance sealing function; the second sealing barrier is composed of built-in insulated high-voltage through pin, which realizes insulated sealed penetration of the internal cable conductive core, forming secondary high-pressure fluid blocking barrier, the double composite sealing structure can reliably block high-pressure wellbore fluid reverse leakage under rated 15,000psi working pressure, guaranteeing stable continuous electrical signal transmission of the logging cable during long-term construction operation; the grapple clamping inserts installed inside the hanger main body are fully interchangeable and replaceable independent structural parts, users only need to disassemble and replace the internal grapple inserts of different inner diameter specifications to realize matching adaptation with multiple different outer diameter logging cables, one single 2" FIG 1502 main body can be compatible with multiple cable specifications, effectively reducing customer spare parts inventory purchase and storage costs, and improving the universality and applicability of a single set of equipment; 3. Two independent core application scenario matching design & standardized 2" FIG 1502 main body size ultra-simplified wellsite operation logic, the surface cable hanger is specially developed for two mainstream oilfield construction operation scenarios, with wide application coverage: Scenario one: fixed installation on coiled tubing reel outer end face, providing stable anchoring and high-pressure sealing protection for logging cable extending from reel into wellbore; Scenario two: suspended fixing fixture for intelligent well completion construction wellhead, realizing wellhead suspended fixing and high-pressure sealing of logging control cable for subsequent downhole intelligent completion tool string deployment and long-term well monitoring data transmission work; the standard main body size specifications are provided to cover mainstream oilfield coiled tubing reel and intelligent completion wellhead standard connection base sizes: unified 2" FIG 1502 outer size, all models adopt STD standard working condition configuration with uniform rated 15,000psi maximum working pressure; the surface cable hanger has no complex internal movable friction components or spring energy storage assemblies, the overall assembly structure is compact and neat, the internal functional modules adopt wear-resistant integrated forming parts with long service life; the whole cable anchoring and sealing assembly operation flow is highly streamlined, only three groups of simple installation steps are needed to complete the installation of the entire hanger unit on coiled tubing reel or wellhead base, no additional complicated auxiliary operation steps are required; after the logging construction work is fully completed, only simple surface circulating fluid debris flushing cleaning and grapple insert tooth surface wear inspection are required, no complex disassembly, internal sealing component replacement or spring preload adjustment maintenance procedures, greatly reducing daily maintenance labor and spare parts inventory cost.
Q3: What matching coiled tubing reel / wellhead base sizes and configurable options do these Surface Cable Hanger Bidirectional Dual Grapple Logging Wireline Suspension & High-Pressure Sealing Anchor For Coiled Tubing Reel & Smart Completion Wellhead support?
Our standard applicable matching base outer size range is unified 2" FIG 1502 main body outer dimension, compatible with mainstream oilfield coiled tubing reel and intelligent completion wellhead standard connection base sizes. Three standard logging cable configuration options are supported: single-conductor mono logging cable, three-conductor tri-logging cable, seven-conductor hepta multi-core logging cable. Each logging cable configuration supports three independent configurable options for free matching selection: grapple insert inner diameter specification, sealing compound high-pressure resistance grade, base material corrosion resistance grade. All models support custom grapple insert inner diameter specifications upon customer request. Three standard logging cable configuration types correspond to fixed overall make-up length dimensions and uniform rated maximum safe working pressure of 15,000psi respectively. Two independent working condition material grade versions are also optional for each logging cable configuration type: STD standard carbon steel working condition grade and H₂S sour service high-corrosion-resistant alloy working condition grade. Custom grapple insert inner diameter specifications, sealing compound high-pressure resistance grade modifications and base material corrosion resistance grade modifications are available upon customer downhole wellbore fluid H₂S concentration corrosive environment construction demands.
Q4: What is the standard production lead time for bulk purchase orders?
All standard PN part numbers are kept in factory inventory, goods can be delivered within 7–15 working days. Customized surface cable hanger units with special grapple insert inner diameter specifications, customized sealing compound high-pressure resistance grade modifications, base material corrosion resistance grade changes or non-standard main body outer size modifications require 20–35 working days production cycle, subject to total order quantity and customization scope.
