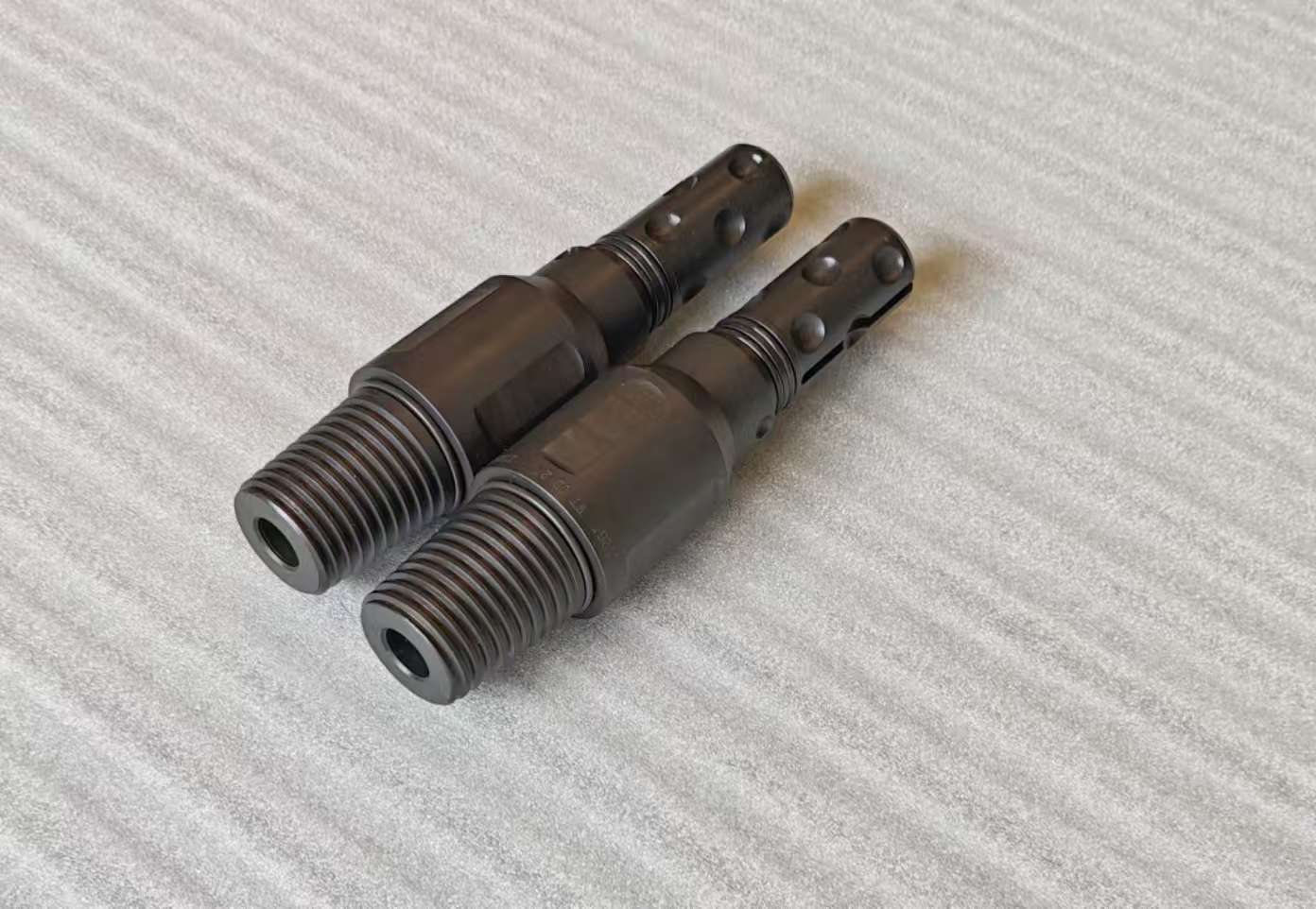

Internal Dimple Connector

The Dimple Connector allows the attachment of coiled tubing to the CT Tool/ Workstring, via the provision of a threaded connection.

The connector is attached to the coiled tubing by grub screws that engage in preformed  dimples in the tubing wall.

The dimples are formed by using the Dimple Hammer/Extractor Tool that places the  indents in identical positions to the screws on the connector.

The Dimple Connectors have ‘o’ ring pressure seals as standard, and are also  available with ‘v’ packings as an option to create the pressure seal.

Design Features/Benefits:

1) High tensile strength

2) Internal pressure seal

3) Easy make up n  High Torque
