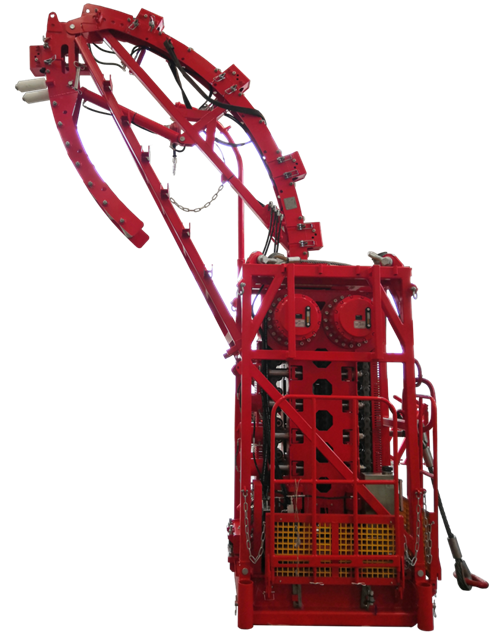

100K INJECTOR – Coiled Tubing Injector Head
Product Description
The coiled tubing unit injector can be used in conventional coiled tubing unit such as truck mounted type, skid mounted type, trailer mounted type, etc.
The equipment can work in the natural environment such as wind, sand, humidity, rain and snow. The operating environment temperature range is -20℃ ~ 55℃.
Performance Parameters
Dimensions and Weight
Main Specification
1. Injector Driving System: Driving system consists of two variable displacement piston motors driven by spline shaft through two planetary reducers, gear reducer driving two chain sprockets to drive the chain rotation.
2. Injector Clamping Mechanism: The injector clamping mechanism consists of 3 pairs of clamping cylinders, 1 pair of sliding rail plate and 3 pairs of sliding rail clamping plate.
3. Injector Tensioning Mechanism: The tensioning mechanism consists of 4 tensioning cylinders, 2 sprockets, 4 traction bearings, used for chain tensioning.
4. Injector Chain Assembly: The chain assembly is composed of transmission chain, slips matrix, bearing, slips. The chain is type 180 special transmission chain.
5. External Frame: The external frame is divided into upper frame and base. The top of the upper frame is provided with 4 lifting lugs. Total rated load of the 4 lifting points is 32T.
6. Gooseneck: The injector is equipped with 72" gooseneck, folding type, hydraulic cylinders control folding and stretching. Equipped with five rollers.
7. Load Transducer: Equipped with explosion-proof electronic load sensor. Power supply 24V, output 4-20mA current signal.
100K INJECTOR – Coiled Tubing Injector Head Specification
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Max Continuous Pulling Force | 100000lbs | Max Continuous Snubbing Force | 50000 LBS |
| Max Speed @ Min Displacement | 58m /min | Max Speed @ Max Displacement | . Displacement 24 m/min |
| Applicable Tubing Size | 1.5”~ 2.875" | Minimum Stationary Speed | less than 0.5m/min |
| Drive Pressure | 0-5000 psi | Clamping Pressure | 0-3000 psi |
| Tension Pressure | 0-3000 psi | Gooseneck Size | 100" |
100K INJECTOR – Coiled Tubing Injector Head Performance Data
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Dimensions (LxWxH) | and weight | Total Weight | (excluding goose neck) ~6 tons |
Main Specification
1. Injector Driving System: Driving system consists of two variable displacement piston motors driven by spline shaft through two planetary reducers, gear reducer driving two chain sprockets to drive the chain rotation.
2. Injector Clamping Mechanism: The injector clamping mechanism consists of 3 pairs of clamping cylinders, 1 pair of sliding rail plate and 3 pairs of sliding rail clamping plate.
3. Injector Tensioning Mechanism: The tensioning mechanism consists of 4 tensioning cylinders, 2 sprockets, 4 traction bearings, used for chain tensioning.
4. Injector Chain Assembly: The chain assembly is composed of transmission chain, slips matrix, bearing, slips. The chain is type 180 special transmission chain.
5. External Frame: The external frame is divided into upper frame and base. The top of the upper frame is provided with 4 lifting lugs. Total rated load of the 4 lifting points is 32T.
6. Gooseneck: The injector is equipped with 72" gooseneck, folding type, hydraulic cylinders control folding and stretching. Equipped with five rollers.
7. Load Transducer: Equipped with explosion-proof electronic load sensor. Power supply 24V, output 4-20mA current signal.
Applications
Coiled tubing unit injector head for oil and gas well service operations. Suitable for truck mounted, skid mounted, and trailer mounted coiled tubing units.
Technical Agreement
Full technical agreement and drawings available upon request.
Customization
Custom specifications available upon request.
